8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form

Good quality Used Yutong Buses for sales
I'm Online Chat Now

8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form

China 8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form supplier
8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form supplier 8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form supplier 8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form supplier 8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form supplier 8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form supplier

Large Image :  8 Cubic Meter Used Concrete Mixer Truck SINOTRUK HOWO Brand 6X4 Drive Form

Product Details:

Place of Origin: CHINA
Brand Name: SINOTRUK HOWO
Certification: ISO/CCC
Model Number: ZZ5257GJBN4047N1

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NUDE PAKING
Delivery Time: 5-8 WORK DAYS AFTER PAYMENT
Payment Terms: T/T
Supply Ability: 20 UNITS PER MONTH
Contact Now
Detailed Product Description
Emission: Euro V Rated Power: 336hp
Drive Form: 6X4 Condition: Used
Year: 2017 Vehicle Model: ZZ5257GJBN4047N1
Overall Dimensions: 10005x2496x3800mm Loading Capacity: 8m3
Curb Weight: 14170kg Chassis Model: ZZ1257N4047N1



Second hand 8 cubic meter SINOTRUK HOWO Concrete Mixer Truck with Euro V,336hp Rated power and 6X4 Drive form could be used in kinds of construction.



Vehicle parameters
Vehicle ModelZZ5257GJBN4047N1Vehicle BrandSINOTRUK HOWO
Overall dimensions10005x2496x3800mmCurb weight14170kg
Loading capacity8m3




Chassis parameters
Chassis modelZZ1257N4047N1Chassis brandHOWO-A7
Overall dimensions10005x2496x3800mmWheel base3775+1400mm
Front/rear wheel track2036/1850/1850mmFront/rear suspension1525/1770mm
Approach/departure angle20/13°Maximum speed77km/h
Chassis ManufacturerSINOTRUK

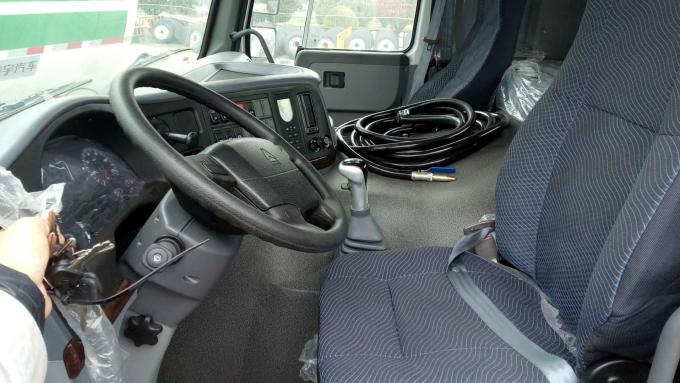

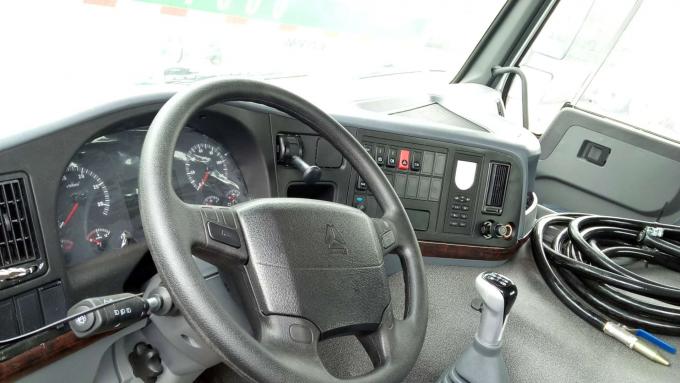

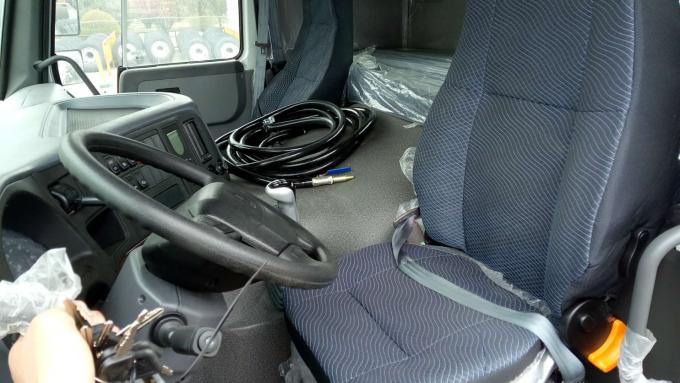

CabConfigurationF3000 flat roof heating cab, main seat hydraulic seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, single-bed, 14 rear-view mirrors, manual window-shaking machine, manual overturn,F3000 cooling system, domestic left steering machine,180Ah battery, SHACMAN logo, all Russian logo, remote throttle control
ColorWhite,other color is optional
EngineModelWD615.95E
EmissionEuro V
Type4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power336hp,rated power speed 1900rpm
Displacement9726ml
Max.torque1550N.m
Bore x stroke126x130mm
ManufacturerWeichai Power Co., Ltd.
TireSize12.00R20 steel wire tire
Number10 nos
ClutchEaton φ430 diaphragm clutch
Fuel tank380L aluminium alloy
Front axleMAN, 7.5 tons disc type
Rear axleMAN,16 tons casting bridge,main reduction ratio 5.262
Drive form6X4
Rated voltage24V,DC
TransmissionsFAST 12JSD160TA,12 speed forward 2 reverse.
Steering devicePower assisted steering,steering machine
Steering wheelLeft hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard




Concrete mixer truck structure parameters
Mixing capacity(m³)8Color and LogoOptional
Feeding speed (m³/min)≥8Discharge speed(m³/min)≥5
Discharge residual rate≤0.5%Slump scope(mm)50-210
Water tank capacity(L)300Water pressure(Mpa)0.35-0.38
Tank material5mm alloy steelTank front head8mm alloy steel

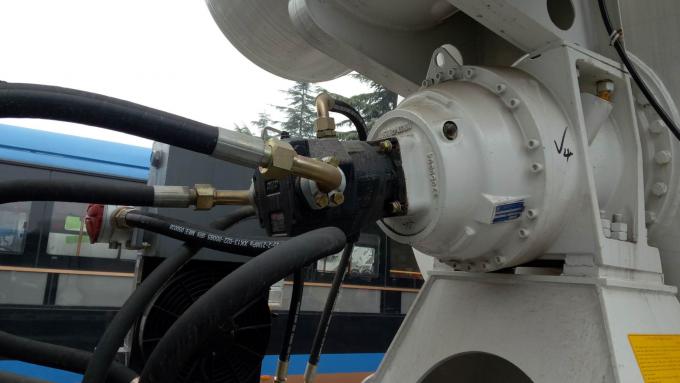

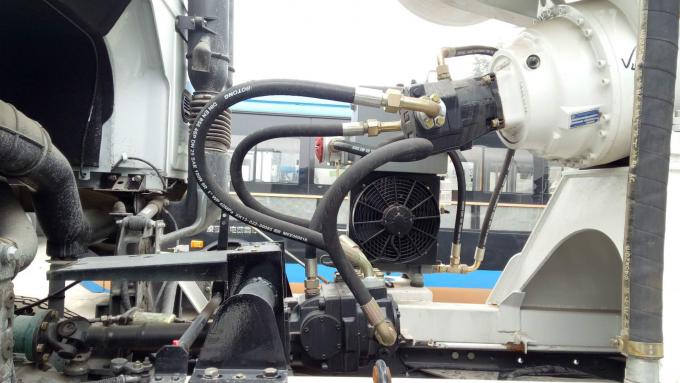

ReducerZF3301Hydraulic motorGermany REXROTH
Hydraulic pumpGermany REXROTHRadiatorKAIPENG
Standard configurationchassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
8m3Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.
Germany ZF/Italy PMP reducer, Italy PMP/Italy MESSORI/America EATON/America SAUER hydraulic pump, hydraulic motor.




Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
