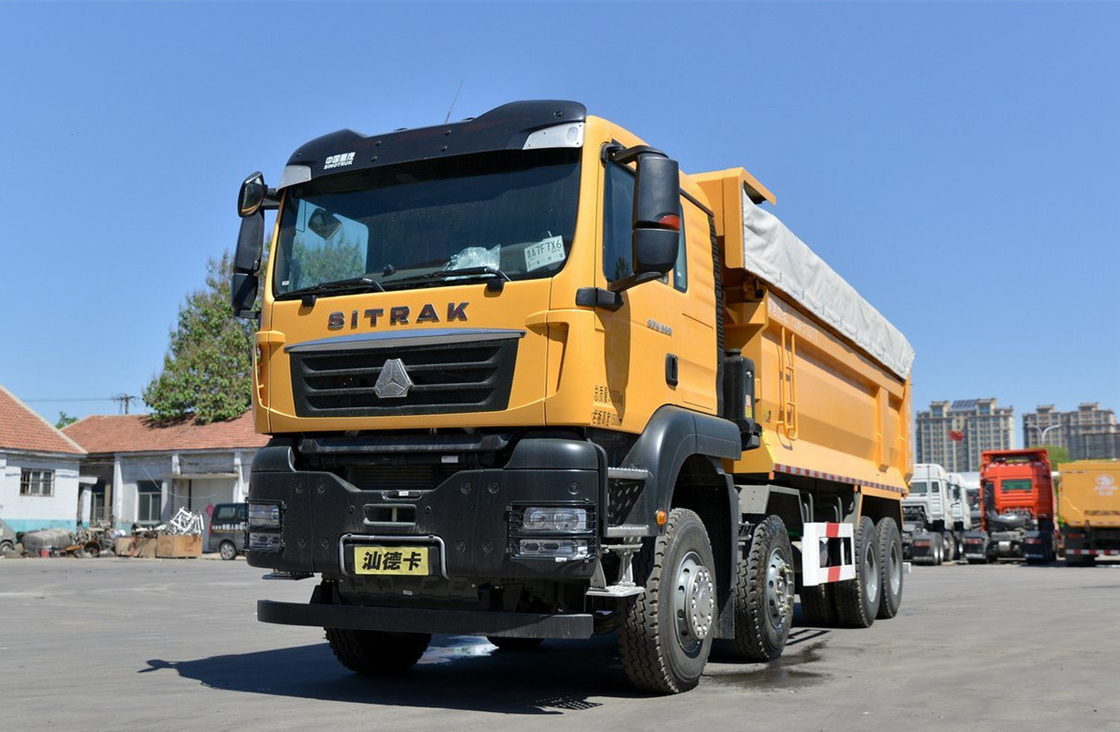

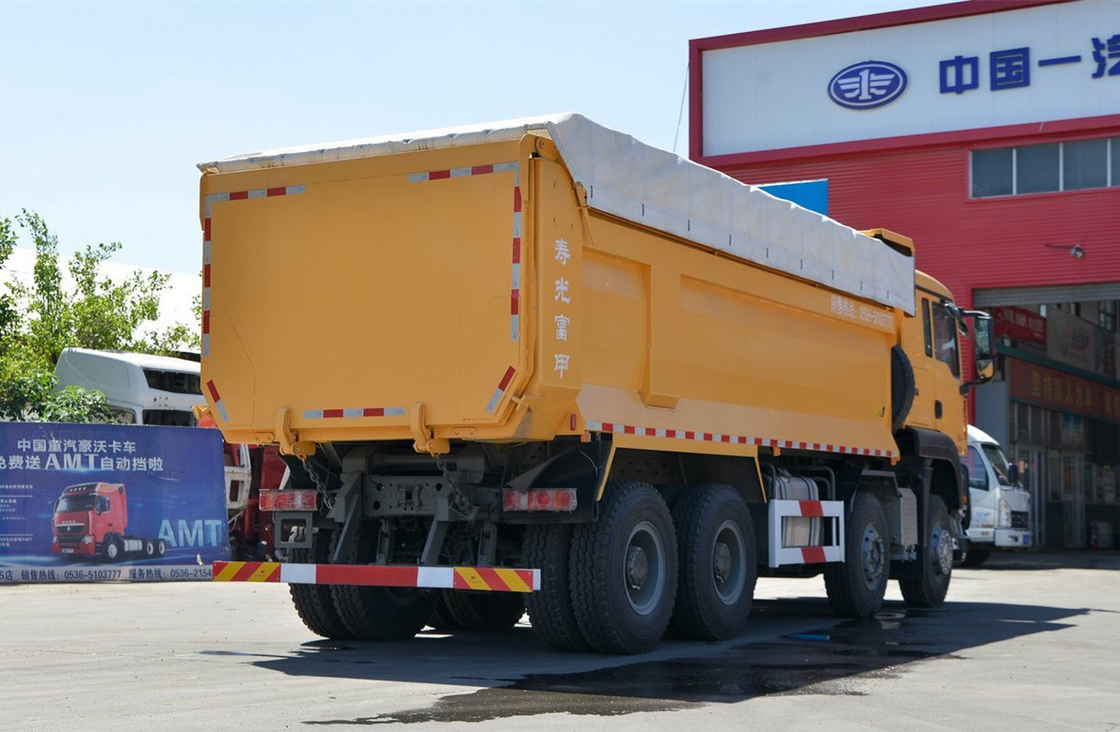

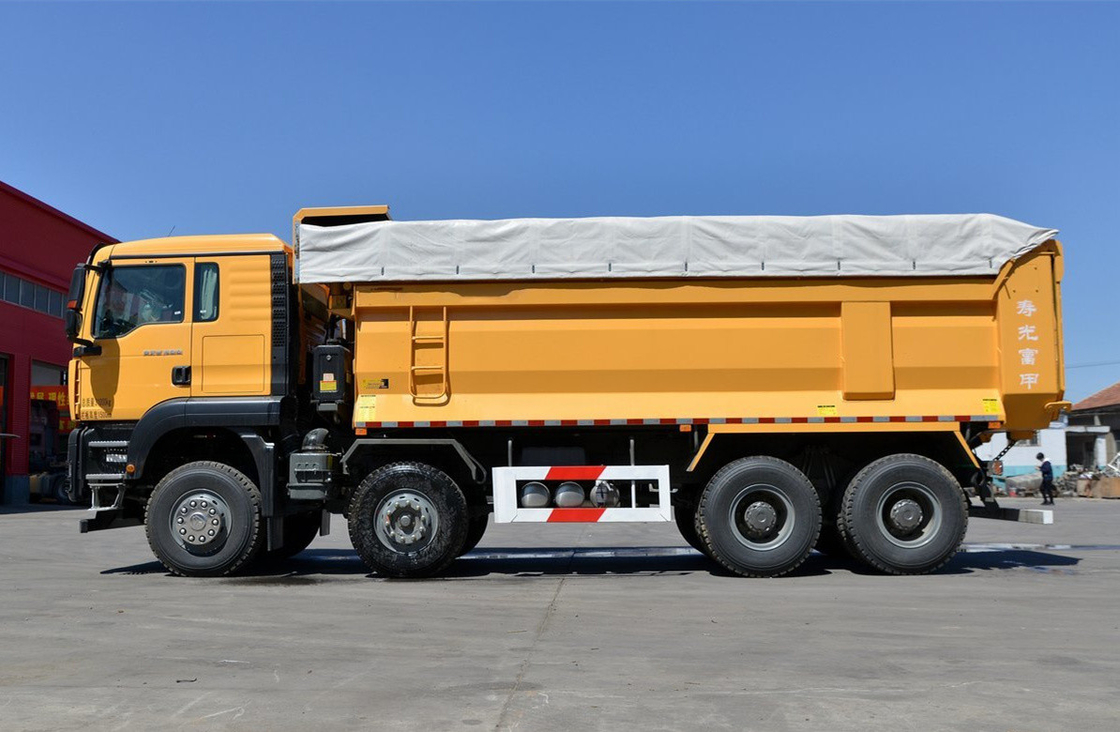

Mining Dump Truck Sinotruck 8*4 SITRAK Weichai 400hp 30-50 Tons Payload 12 Wheels LHD/RHD
Description:
With sufficient power and good quality, it is your good transportation partner. The self-unloading method is rear unloading; optional front fence panels, external sunshades, U-shaped cargo compartments, and tarpaulin environmentally friendly roofs; optional cargo box structures and multiple environmentally friendly roof structures. The material of the protective device is Q235A, which is connected by bolts.
Service we can provide:
Sino Power Truck , yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc. Mining Dump Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Mining Dump Truck
| ZZ3316 PARAMETER | |||
| Product Name | Sinotruck TRUCK | Brand | Sinotruck |
| Origin | China | Model | ZZ3316 |
| Year | 2021 | Type | LORRY |
| Total Weight | 31000(kg) | Curb Weight | 15500(kg) |
| Seats | 2 | Max speed | 88(km/h) |
| Type of Fuel | Diesel | Length | 9802mm |
| Weight | 2550mm | Height | 3460mm |
| Overall Dimensions(L*W*H) | 9802*2550*3460mm | Mining Dump Truck | Mining Dump Truck |
| ENGINE PARAMETER | |||
| Engine Model |
WP10H400E50
|
Engine Power | 294/339kw |
| Displacement | 9500(ml) | Emission Standard | EURO 5 |
| CHASSIS PARAMETERS | |||
| Number of Spring Pieces |
4/4/5,4/4/10,11/11/10 11/11/12,14/14/12 |
Number of Tire | 12 |
| Tire Type |
11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,12R22.5 18PR,315/80R22.5 18PR |
Approach/Depature Angle | 19/24(°) |
| F/R Overhang | 1492/1935(mm) | Front Track | 2041/2041(mm) |
| Rear Track | 1830/1830(mm) | Number of Axis | 4 |
| Axial load | 6500/7000/17500 | Wheelbase | 1950+3225+1350(mm) |
