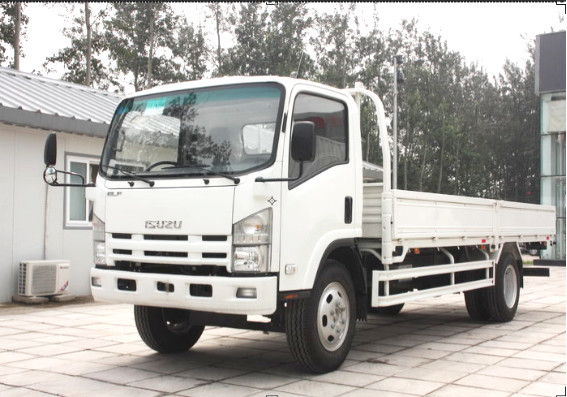

Single-Row Cargo Truck Isuzu 10 Tons 4×2 Lorry Truck 5.5 Meters Long Box Euro 4 Flat Cab
Description:
With sufficient power and good quality, it is your good transportation partner. Optional air deflector, height 3910 with air deflector, height 3570 without air deflector, optional color registration and word mark. Correspondence between curb weight/maximum allowable weight of semi-trailer saddle/total weight of quasi-trailer: 8850/16020/40000,9730/15140/39140. Single-Row Cargo Truck
Service we can provide:
Single-Row Cargo Truck,yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Single-Row Cargo Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Single-Row Cargo Truck
| Overall dimensions | 7450×2380×2520mm | Curb weight | 4300kg | ||
| Van dimensions | 5500×2300×450mm | Loading capacity | 10T | ||

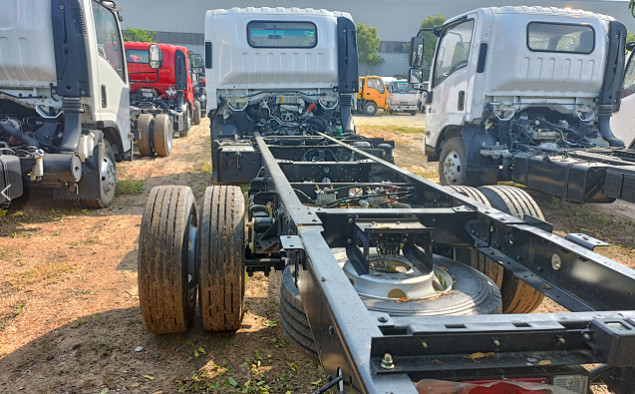

| Chassis parameters | |||||
| Chassis model | QL11009LARY | Chassis brand | ISUZU | ||
| Overall dimensions | 7430X2170X2330mm | Wheel base | 4175mm | ||
| Front/rear wheel track | 1680/1650mm | Front/rear suspension | 1110/2145mm | ||
| Approach/departure angle | 21/13° | Maximum speed | 110 km/h | ||
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||||
| Cab | Configuration | 700P,single row cab,allowable 3 passengers, air conditioner, USB radio interface,cab can be flipped. | |||
| Color | White,other color is optional | ||||
| Engine | Model | 4HK1-TCG40 | |||
| Emission | Euro 4 | ||||
| Type | 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine. | ||||
| Rated power | 190hp | ||||
| Displacement | 5193ml | ||||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||||
| Tire | Size | 8.25-20-14PR nylon tire | |||
| Number | 6+1 nos | ||||
| Frame | 216X70(6+3)mm | ||||
| Front axle | 4.0tons | ||||
| Rear axle | 7.0 tons | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi leaf springs | |
| Rated voltage | 24V,DC | |
| Transmissions | Isuzu MLD six speed transmission, 6 speed forward 1 reverse. | |
| Steering device | Power assisted steering | |
| Steering wheel | Right hand drive | |
| Selective configuration | Tire:825R16,825-20,825R20,235/75R17.5 | |
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||
| Van body structure parameters | ||||
| Van dimensions | 5500×2300×450mm | Loading capacity | 10T | |
| Van material | Corrugated iron tile | Color and Logo | Optional | |
| Standard configuration | Chassis,sub frame,corrugated iron tile van body. | |||
