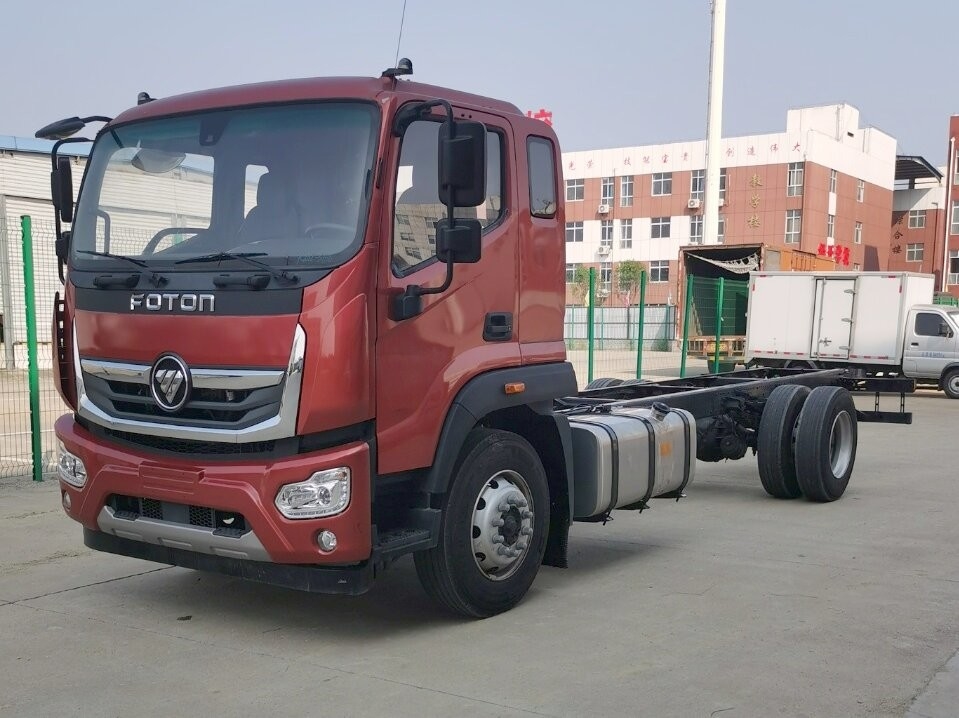

10 Ton Cargo Truck Chassis 4*2 Double Rear Tires Euro3 Cummins Engine 5150 Wheelbase
Description:
With sufficient power and good quality, it is your good transportation partner. Optional air deflector, height 3910 with air deflector, height 3570 without air deflector, optional color registration and word mark. Correspondence between curb weight/maximum allowable weight of semi-trailer saddle/total weight of quasi-trailer: 8850/16020/40000,9730/15140/39140. 10 Ton Cargo Truck Chassis
Service we can provide:
10 Ton Cargo Truck Chassis,yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Foton Tractor Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Foton Tractor Truck
| Overall dimensions | 9000x2496x2760mm | Curb weight | 7760kg |
| Van dimensions | 5200x2200x500mm | Loading capacity | 10T |
| Chassis model | BJ5163 | Chassis brand | FOTON | ||
| Overall dimensions | 8455X2405X2700mm | Wheel base | 5150mm | ||
| Front/rear wheel track | 1960/1847mm | Front/rear suspension | 1365/2440 mm | ||
| Approach/departure angle | 16/11° | Maximum speed | 79km/h | ||
| Chassis Manufacturer | Beijing Foton Daimler Motor Co., Ltd. | ||||
| Cab | Configuration | ETX2200 cab(with sleeping berth),allowable 3+2 passengers, ETX interior, air conditioner, machinery seat | |||
| Color | White, other color is optional | ||||
| Engine | Model | B210 33 | |||
| Emission | Euro 3 | ||||
| Type | 6 cylinders, in-line,diesel engine | ||||
| Rated power | 210hp, rated power speed 2500rpm | ||||
| Displacement | 5900ml | ||||
| Max.torque | 700N.m | ||||
| Bore x stroke | 102x120mm | ||||
| Manufacturer | Beijing Foton Cummins Engine Co. Ltd. | ||||
| Tire | Size | 11R22.5 | |||
| Number | 6+1 nos | ||||
| Fuel tank | 260L aluminum fuel tank | ||||
| Front axel | 4.2T | ||||
| Rear axle | 10T | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | Gear box 8JS85T, 8 speed forward 1 reverse. | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
