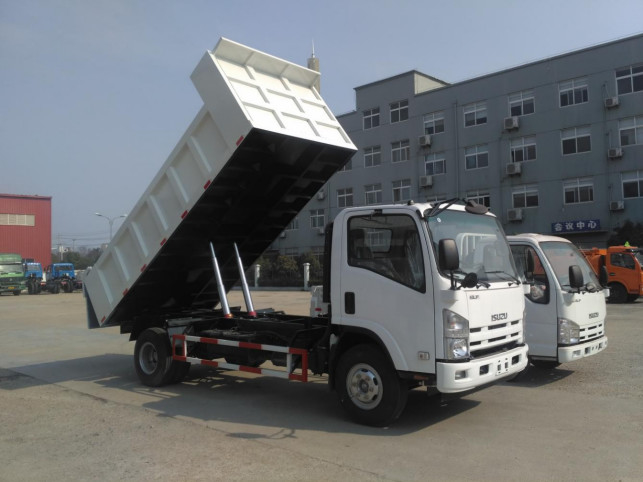

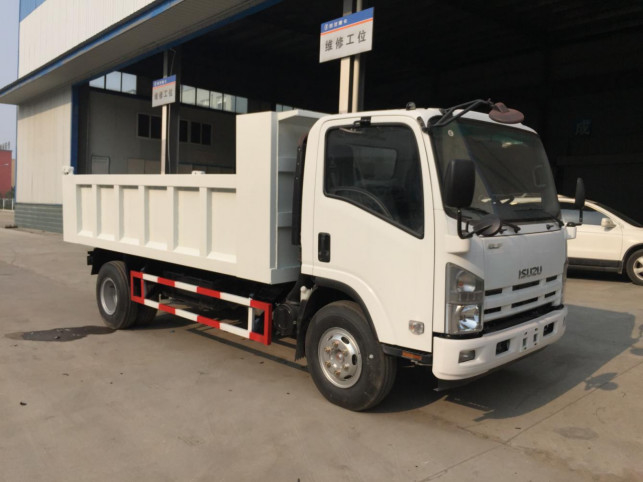

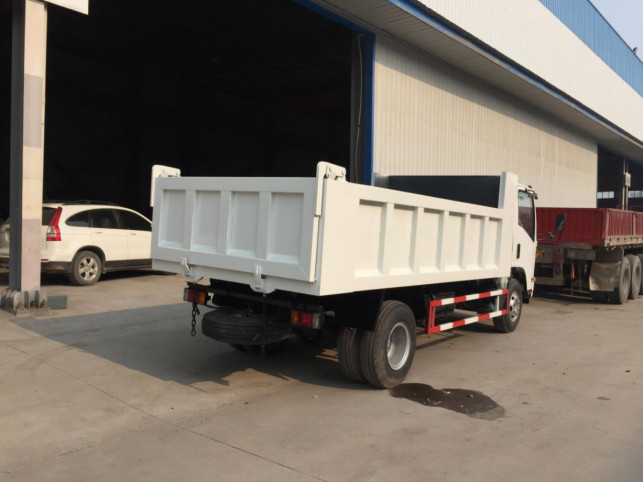

Used Tipper Trucks 4*2 Loading 10 Tons 5.2 Meters Long Box 9 Cubic Isuzu Dumper New
Description:
With sufficient power and good quality, it is your good transportation partner. The self-unloading method is rear unloading; optional front fence panels, external sunshades, U-shaped cargo compartments, and tarpaulin environmentally friendly roofs; optional cargo box structures and multiple environmentally friendly roof structures. The material of the protective device is Q235A, which is connected by bolts. Used Tipper Trucks 4*2
Service we can provide:
Used Tipper Trucks 4*2, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Used Tipper Trucks 4*2
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you. Used Tipper Trucks 4*2
| Overall dimensions | 7700×335×2665mm | Curb weight | 7810kg | |
| Van dimensions | 5200×2100×800mm | Loading capacity | 10000kg | |
| Chassis parameters | ||||
| Chassis model | QL1100 | Chassis brand | ISUZU | |
| Overall dimensions | 7430X2170X2330mm | Wheel base | 4175mm | |
| Front/rear wheel track | 1680/1650mm | Front/rear suspension | 1110/2145mm | |
| Approach/departure angle | 21/13° | Maximum speed | 110km/h | |
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | |||
| Cab | Configuration | 700P,single row cab,allowable 3 passengers, air conditioner, USB radio interface,cab can be flipped. | ||
| Color | White,other color is optional | |||
| Engine | Model | 4HK1-TCG40 | ||
| Emission | Euro 4 | |||
| Type | 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine. | |||
| Rated power | 190hp | |||
| Displacement | 5193ml | |||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | |||
| Tire | Size | 8.25-20-14PR nylon tire | ||
| Number | 6+1 nos | |||
| Frame | 216X70(6+3)mm | |||
| Front axle | 4.0tons | |||
| Rear axle | 7.0 tons | |
| Drive form | 4X2 | |
| Suspension | Multi leaf springs | |
| Rated voltage | 24V,DC | |
| Transmissions | Isuzu MLD six speed transmission, 6 speed forward 1 reverse. | |
| Steering device | Power assisted steering | |
| Steering wheel | Left hand drive | |
| Selective configuration | Tire:825R16,825-20,825R20,235/75R17.5 | |
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||
| Dump truck structure parameters | ||||
| Van dimensions | 5200×2100×800mm | Side wall | 4mm | |
| Bottom plate | 5mm | Van body material | Common steel | |
| Lifting position | Middle | Dumping direction | Rear | |
| Oil Cylinder | Domestic Ф90,double | Color and Logo | Optional | |
| Standard configuration | chassis,sub frame,van body side 4mm bottom 5mm,domestic middle lifting hydraulic cylinder Ф90,common steel,two longitudinal beams,rectangular van body,single door | |||
| Selective configuration | HYVA,PENTA cylinder,van body thickness(side 4mm to 6mm,bottom 6mm to 12mm),other requirements,truck crane,manganese plate and floor heating,side dumping. | |||
