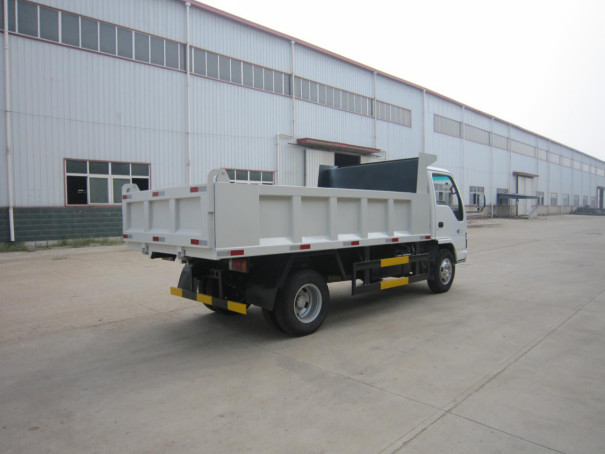

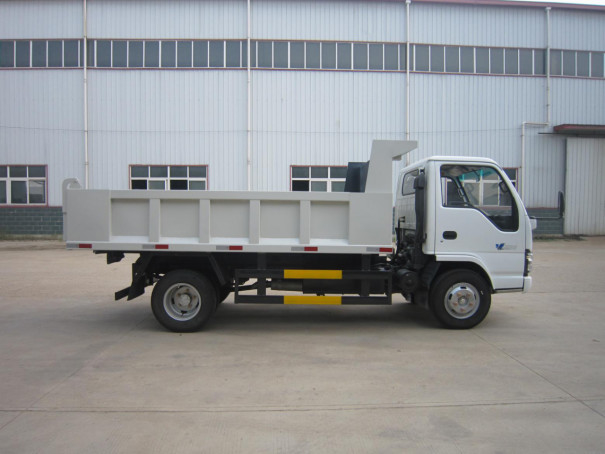

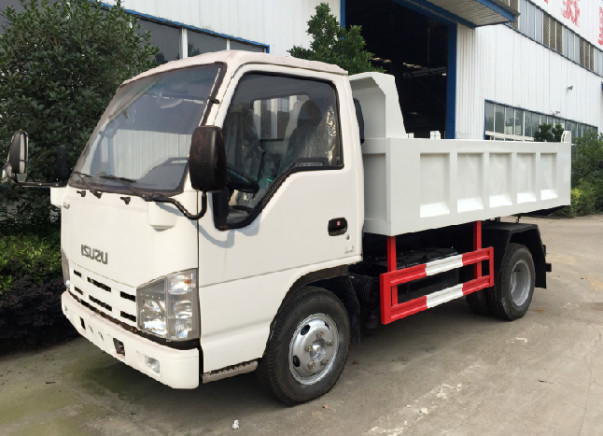

Used 3t Tipper Truck ISUZU 4*2 Small Dumper Euro 4 Multi Leaf Springs 5 Speed Gear
Description:
With sufficient power and good quality, it is your good transportation partner. The self-unloading method is rear unloading; optional front fence panels, external sunshades, U-shaped cargo compartments, and tarpaulin environmentally friendly roofs; optional cargo box structures and multiple environmentally friendly roof structures. The material of the protective device is Q235A, which is connected by bolts. Used 3t Tipper Truck
Service we can provide:
Used 3t Tipper Truck, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Used 3t Tipper Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you. Used 3t Tipper Truck
| Overall dimensions | 5500X2000X2300mm | Curb weight | 2800kg |
| Van dimensions | 3000X1900X500mm | Loading capacity | 3000kg |
| Chassis parameters | ||||
| Chassis model | QL1040 | Chassis brand | ISUZU | |
| Overall dimensions | 5300X1880X2200mm | Wheel base | 2765mm | |
| Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1015/1450mm | |
| Approach/departure angle | 24/16° | Maximum speed | 105km/h | |
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | |||
| Cab | Configuration | 100P,single row cab, allowable 3 passengers,air conditioner, USB radio interface, car interior | ||
| Color | White,other color is optional | |||
| Engine | Model | 4JB1CN | ||
| Emission | Euro 4 | |||
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | |||
| Rated power | 98hp,rated power speed 3400rpm | |||
| Displacement | 2771ml | |||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | |||
| Tire | Size | 7.00-16 | ||
| Number | 6+1 nos | |||
| Frame | 172X65(4+3)mm | |||
| Front axle | 2 tons | |
| Rear axle | 3 tons | |
| Drive form | 4X2 | |
| Suspension | Multi leaf springs | |
| Rated voltage | 24V,DC | |
| Transmissions | Isuzu MSB five speed transmission, 5 speed forward 1 reverse. | |
| Steering device | Power assisted steering | |
| Steering wheel | Left hand drive | |
| Selective configuration | ||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||
| Dump truck structure parameters | ||||
| Van body dimensions | 3000X1900X500mm | Side wall | 3mm | |
| Bottom plate | 4mm | Van body material | Common steel | |
| Lifting position | Middle | Dumping direction | Rear | |
| Oil Cylinder | Domestic Ф100 double | Color and Logo | Optional | |
| Standard configuration | Chassis,sub frame,van body side 2mm bottom 3mm,domestic middle lifting hydraulic cylinder Ф90,common steel,two longitudinal beams,rectangular van body,single door | |||
