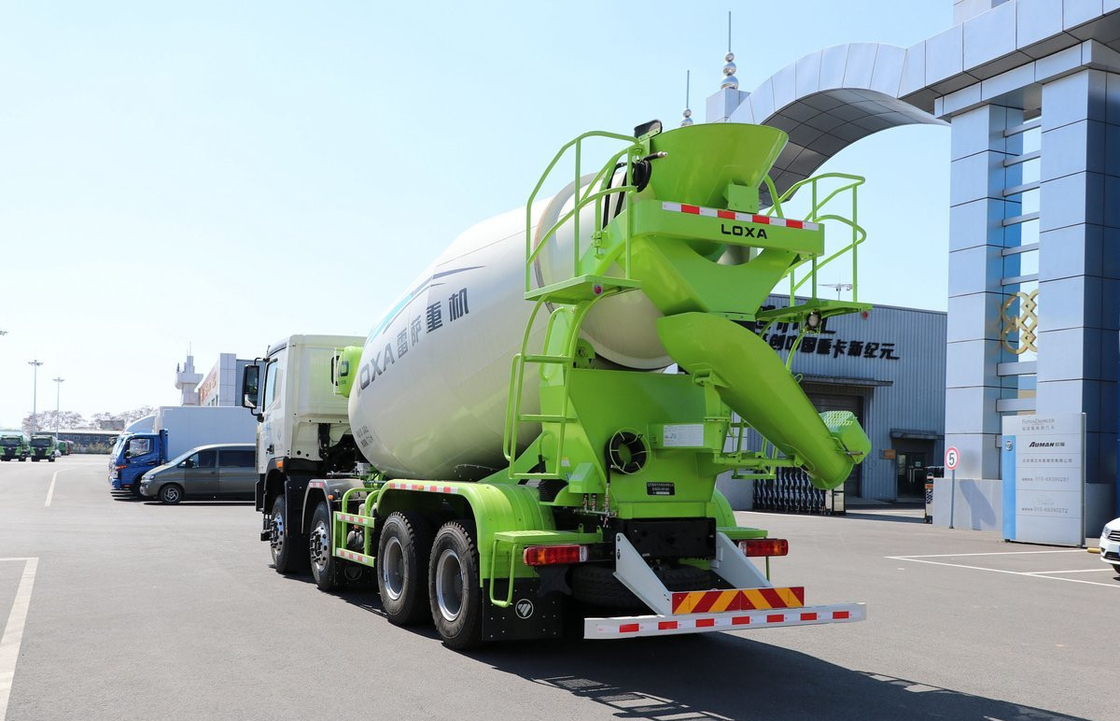

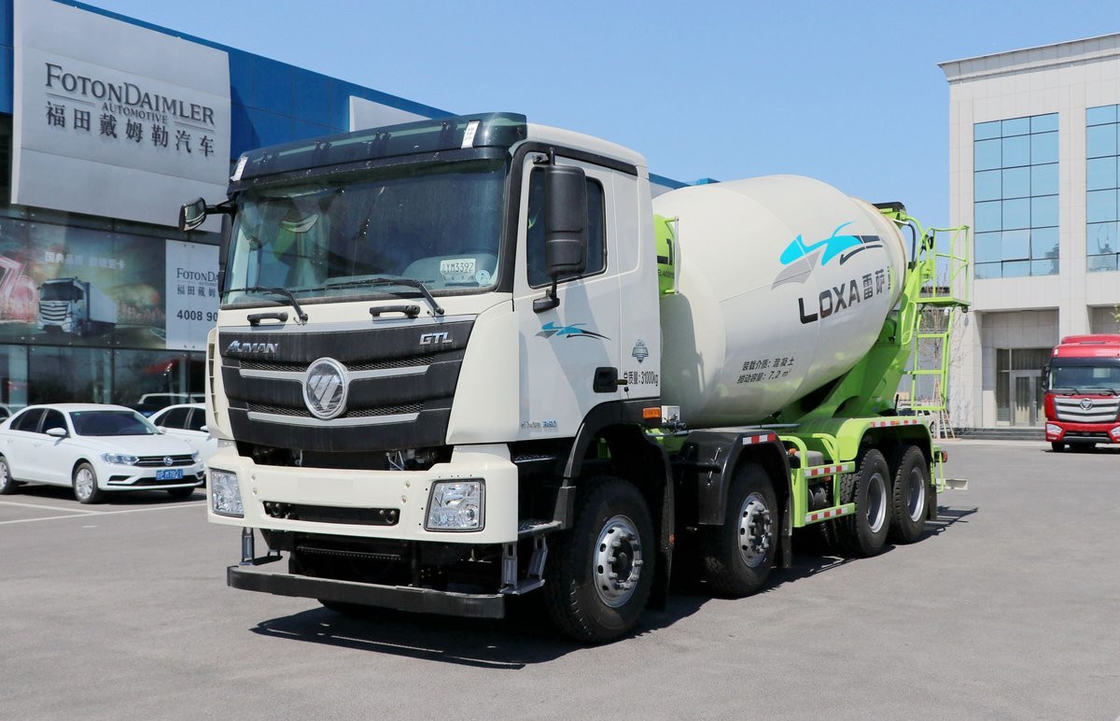

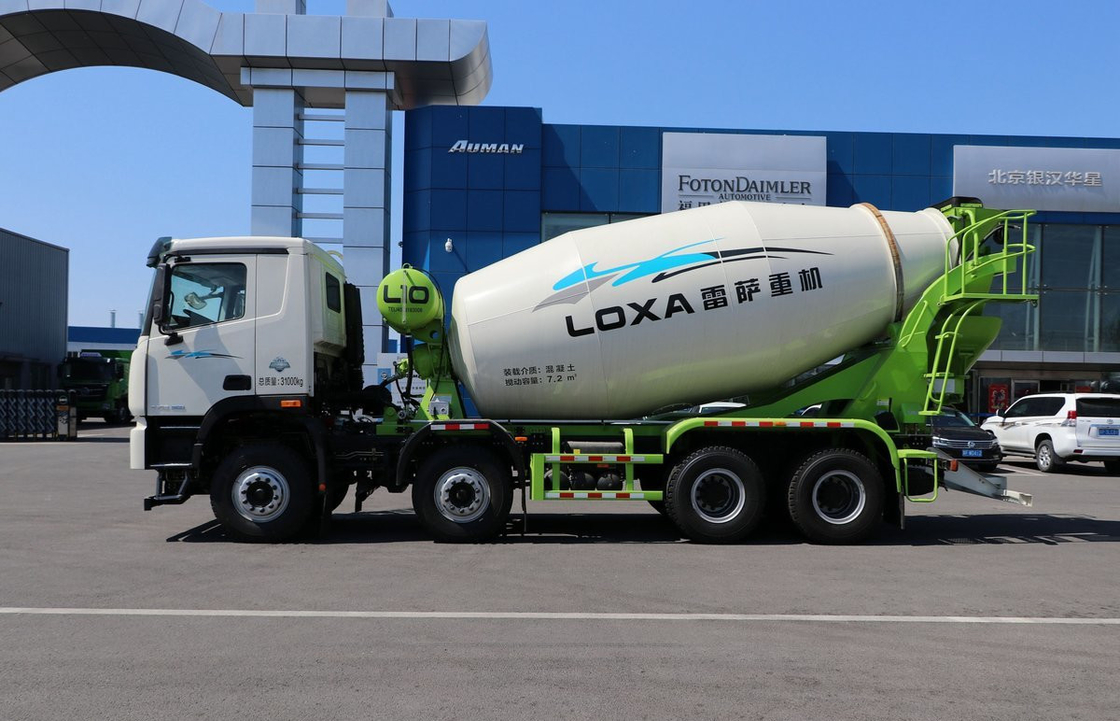

Used Tanker Trucks Fonton Concrete Mixer Truck 8×4 Drive Mode 8 Cubic
Description:
The transportation medium is concrete. The stirring capacity is 7.7 cubic meters, and the overall tank size (total length of the tank × maximum diameter) is 6018 × 2200mm. The installation angle of the tank is 12 degrees, the side protective device material: 6063-T5; the rear protective device material: 510L; the rear protective device cross-sectional size: 130×65mm, the rear protective device height from the ground: 410mm.
Service we can provide:
Used Tanker Trucks, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Used Tanker Trucks
| BJ5319 PARAMETER | |||
| Product Name | USED FOTON TRUCK | Brand | FOTON |
| Origin | China | Model | ZK6119 |
| Year | 2017 | Type | SPV |
| Total Weight | 31000(kg) | Curb Weight | 14000(kg) |
| Seats | 2 | Max speed | 80km/h |
| Type of Fuel | Diesel | Length | 10120mm |
| Weight | 2530mm | Height | 3995mm |
| Overall Dimensions(L*W*H) | 10120*2530*3995mm | Used Tanker Trucks | Used Tanker Trucks |
| ENGINE PARAMETER | |||
| Engine Model |
X12NS6B380
|
Engine Power | 279/2379kw |
| Displacement | 11800 | Emission Standard | EURO VI |
| CHASSIS PARAMETERS | |||
| Number of Spring Pieces |
13/14/12,3/3/5,10/10/12,13/14/14, 11/11/14,10/10/10 |
Number of Tire | 14 |
| Tire Type | 11.00-20 18PR,11.00-20 16PR,11.00R20 18PR,11.00R20 16PR,12.00-20 18PR,12.00-20 16PR,12.00-20 14PR,12.00R20 18PR,12.00R20 16PR,12.00R20 14PR,12R22.5 18PR,12R22.5 16PR | Approach/Depature Angle | 20/12(°) |
| F/R Overhang | 1450/2470(mm) | Front Track | 2080/2080(mm) |
| Rear Track | 1880/1880(mm) | Number of Axis | 4 |
| Axial load | 6500/6500/18000 | Wheelbase | 2100+3100+1350(mm) |
