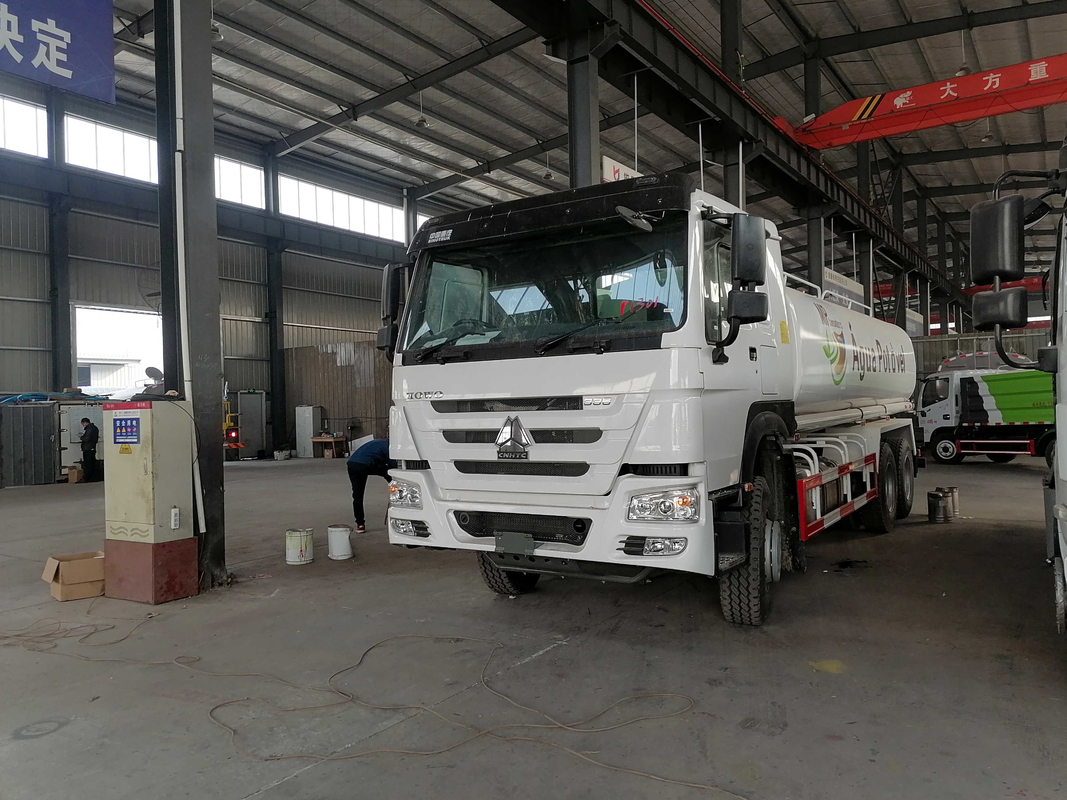

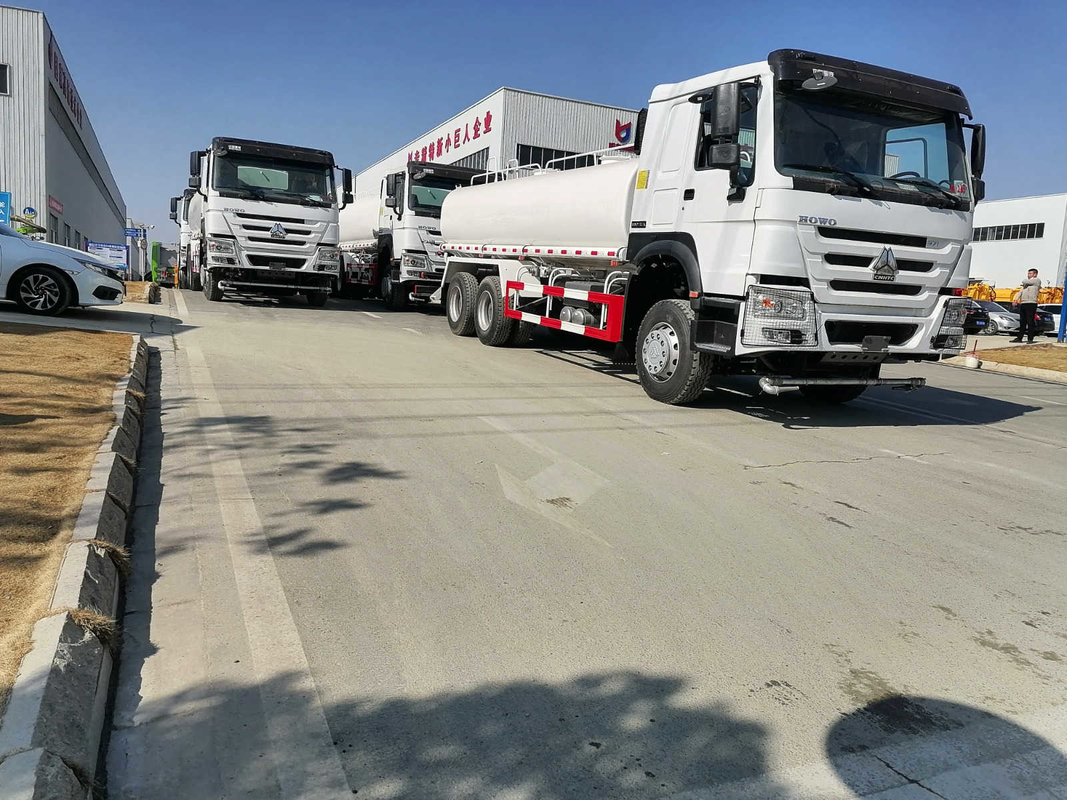

Used Tri Axle Trucks Howo Water Tanker Truck 20m³ 6×4 Drive Mode
Description:
Howo Water Tanker Truck can provide left hand drive and right hand drive, 6×4 drive mode, 20m³ tank capacity, meet the needs of multiple scenarios. Double seat flat top cab, with air conditioner, driving environment is comfortable, no fear of severe cold and heat.
Service we can provide:
Used Tri Axle Trucks , yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Used Tri Axle Trucks
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Used Tri Axle Trucks .Used Tri Axle Trucks
| Vehicle parameters | |||||||||
| Overall dimensions | 9895×2496×2958mm | Curb weight | 12265kg | ||||||
| Tank dimensions | 6000×2400×1600mm | Tank volume | 20000L | ||||||
| Chassis parameters | |||||||||
| Chassis model | ZZ1257 | Chassis brand | HOWO | ||||||
| Overall dimensions | 10415X2496X3300mm | Wheel base | 4625+1350mm | ||||||
| Front/rear wheel track | 2022, 1830/1830mm | Front/rear suspension | 1540, 2875mm | ||||||
| Approach/departure angle | 15/12° | Maximum speed | 90km/h | ||||||
| Chassis Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | ||||||||
|
Cab |
Configuration |
A row and a half deluxe cab(with sleeping berth), allowable 3 passengers | |||||||
| Color | White, other color is optional | ||||||||
|
Engine |
Model | WP10.340E22 | |||||||
| Emission | Euro 2 | ||||||||
|
Type |
6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine | ||||||||
| Rated power | 340hp, rated power speed 2200rpm | ||||||||
| Displacement | 9726ml | ||||||||
| Max.torque | 1250N.m | ||||||||
| Bore x stroke | 126x130mm | ||||||||
| Manufacturer | Weichai Engine Power Co.,Ltd | ||||||||
|
Tire |
Size | 12.00R20 | |||||||
| Number | 10+1 nos | ||||||||
| Clutch | φ430 diaphragm clutch | ||||||||
| Fuel tank | 400L iron oil tank | ||||||||
| Front axle | VGD95 | ||||||||
| Rear axle | MCX16ZG,16 tons | ||||||||
| Drive form | 6X4 | ||||||||
| Suspension | Multi leaf springs | ||||||||
| Rated voltage | 24V, DC | ||||||||
| Transmissions | gearbox HW19710, 10 speed forward 2 reverse. | ||||||||
| Steering device | Power assisted steering | ||||||||
| Steering wheel | Right hand drive | ||||||||
| Water tank structure parameters | |||||||||
| Tank dimensions | 6000×2400×1600mm | Tank volume | 20000L | ||||||
| Tank material | Carbon steel | Tank thickness | 5mm | ||||||
| Nozzle sprinkling width | ≥14m | Range of water cannon | ≥28m | ||||||
| Suction height | ≥7m | Color and Logo | Optional | ||||||
| Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. | ||||||||
| Selective configuration | Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | ||||||||
| Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc. | ||||||||
