Place of Origin:
China
Brand Name:
SANY
Certification:
ISO/FCC/SGS
Model Number:
SY75C

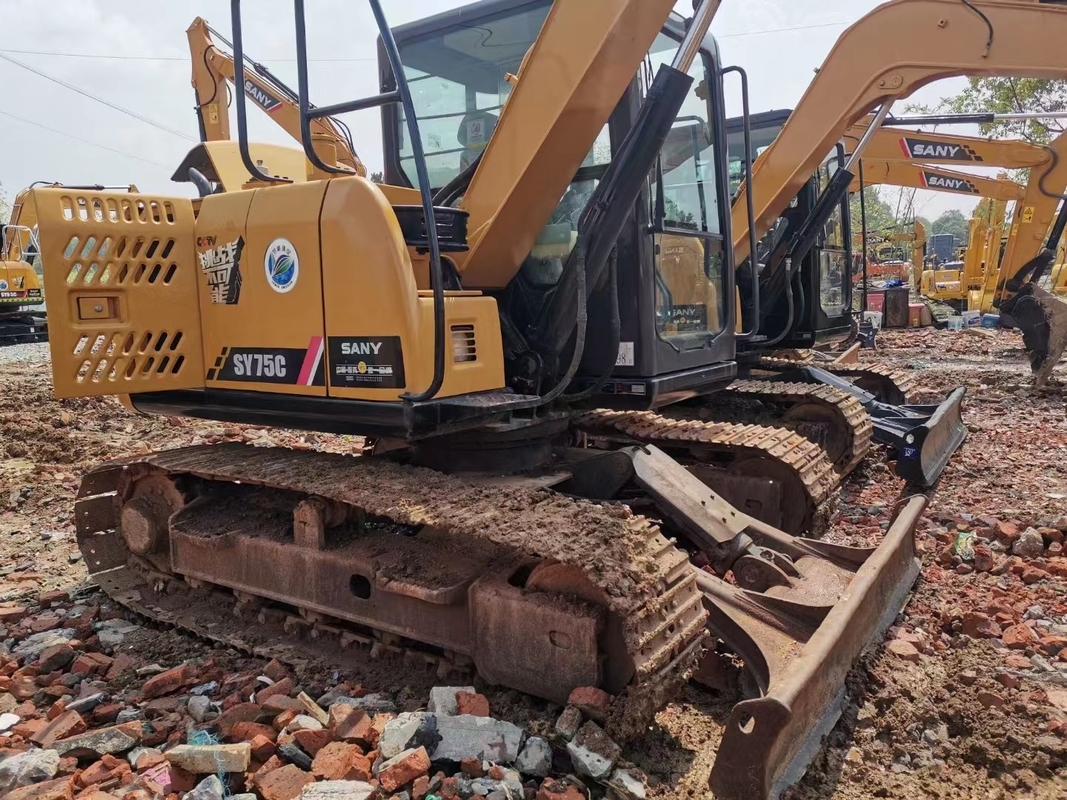

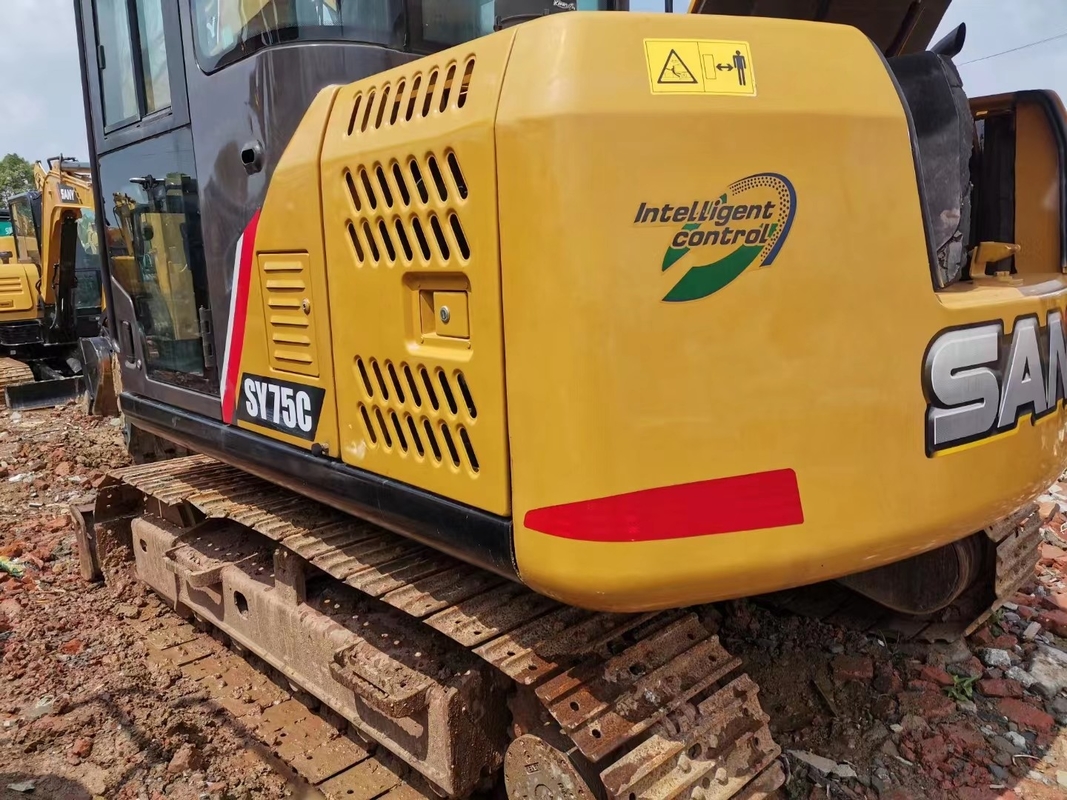

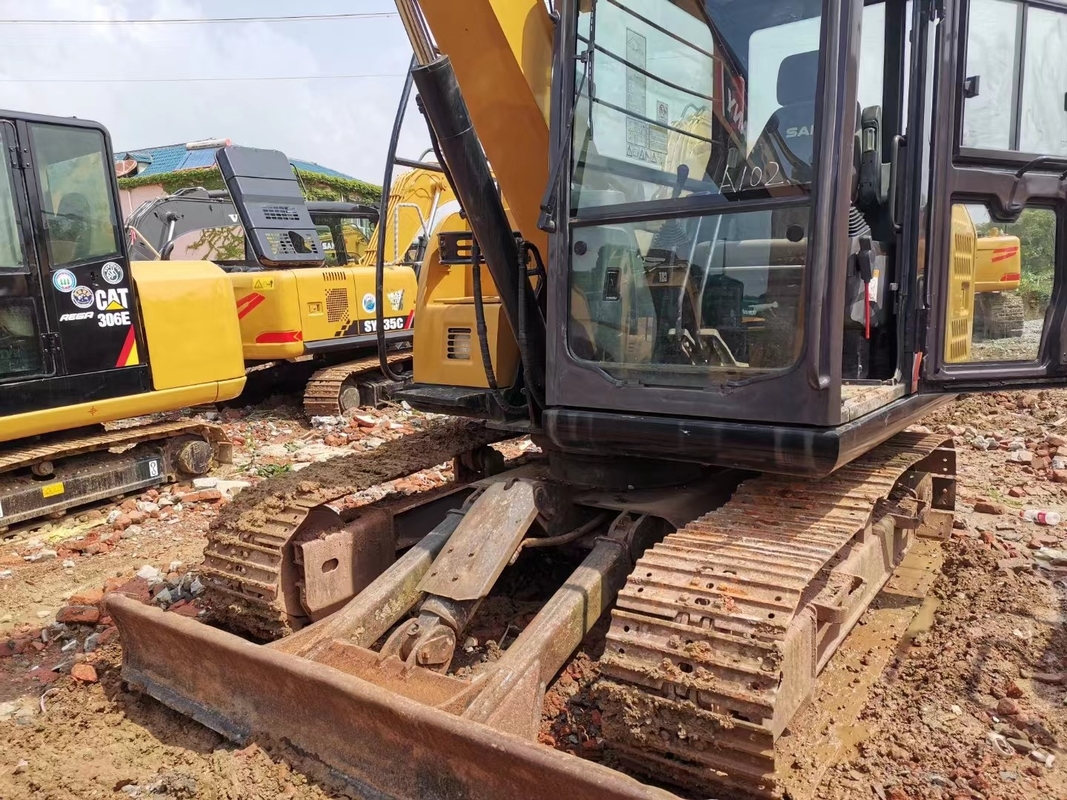

Second Hand Truck 7 Tons Used SANY Excavator Isuzu Engine 4 Cylinders Fuel Tank Capacity 150L
Trade Terms:
Delivery time: Wihtin 30-40 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide:Second Hand Truck , yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Second Hand Truck
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Second Hand Truck ,Second Hand Truck
| Parameter | |
| Tonnage (tons) | 7 |
| Machine working weight (kg) | 7280 |
| Bucket capacity (m³) | 012-0.32 |
| Rotation speed(rpm) | 11.5 |
| Walking speed(km/h) | 4.4/2.4 |
| Gradeability(%) | 70%(35°) |
| Ground pressure (Kpa) | 33 |
| Bucket Digging Force(kN) | 56 |
| Stick Digging Force(kN) | 38 |
| Engine model | Isuzu |
| Rated power(kw/rpm) | 743/2200 |
| Maximum torque (N.m) | 200/1600 |
| Displacement (L) | 2.179 |
| Number of cylinders (pieces) | 4 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height(mm) | 2720 |
| Track ground length (mm) | 2195 |
| Total track length (mm) | 2820 |
| Track shoe width (mm) | 450 |
| Track Gauge (mm) | 1750 |
| Minimum ground clearance (mm ) | 380 |
| Turning radius of the rear end (mm ) | 1800 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum digging height(mm) | 7060 |
| Maximum unloading height(mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Lifting or pushing depth of bulldozer blade (mm) | 350/360 |
