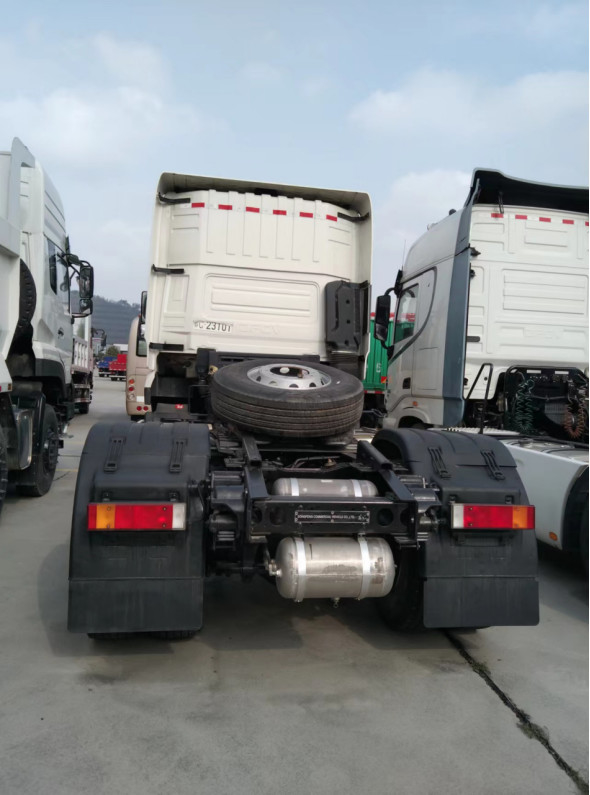

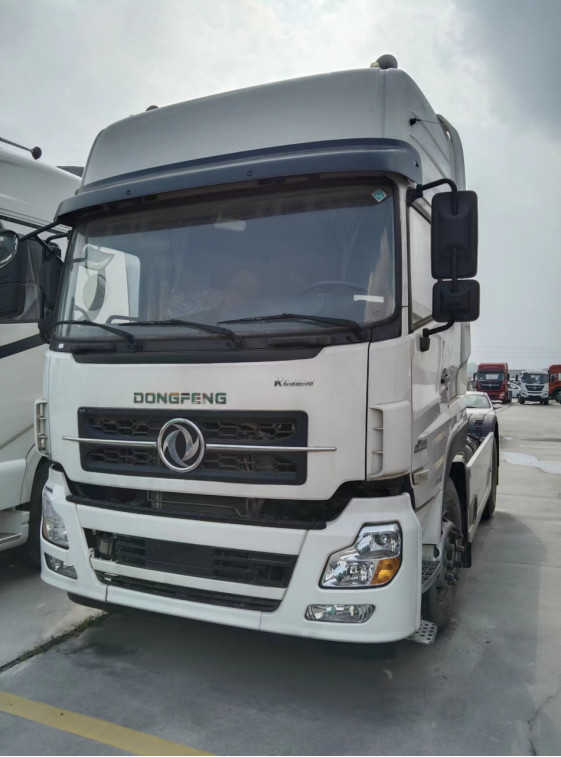

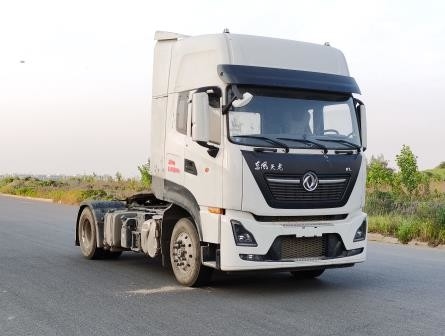

Used Tractor Trucks Euro 5 DONGFNEG 4X2 Drive Mode Tractor Head 465hp Total Traction Mass 30 Tons LHD
Trade Terms:
Delivery time: Wihtin 30-40 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide:Used Tractor Trucks, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Used Tractor Trucks
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Used Tractor Trucks,Used Tractor Trucks
| Vehicle parameters | ||||
| Vehicle model | DFH4180 | |||
| Overall dimensions |
6560×2550×3660 mm |
Wheel base | 4000 mm | |
| Front/rear wheel track | 2010/1860mm | Front/rear suspension | 1480/1080mm | |
| Approach/departure angle | 13.5/20° | Maximum speed | 89km/h | |
| Curb weight | 8300kg | Total mass | 18000kg | |
| Total quasi traction mass | 30000kg | |||
| Chassis Manufacturer | Dongfeng Automobile Co., Ltd | |||
| Cab | Configuration |
D320 A row and half cab, with air conditioner, with sleeper,LCD instrument panel, power windows |
||
| Color | White, other color is optional | |||
| Engine | Model | dCi465-51 | ||
| Emission | Euro 5 | |||
| Type | 6 cylinders,in-line, 4-stroke,High pressure common rail,Diesel | |||
| Rated power | 465hp, rated power speed 1900rpm | |||
| Displacement | 11120ml | |||
| Max.torque | 2200N.m | |||
|
Bore x stroke |
123x156mm | |||
| Manufacturer | Dongfeng Commercial Automobile Co., Ltd | |||
| Tire | Size | 12.00R22.5 18PR | ||
| Number | 6+1 nos | |||
| Clutch | Ф430 | |||
| Front axle | 5.5T | |||
| Rear axle | 13T | |||
| Drive form | 4X2 | |||
| Suspension | pneumatic suspension | |||
| Rated voltage | 24V, DC | |||
| Steering device |
Power assisted steering |
|||
| Steering wheel | Left hand drive | |||
| Oil tank | 600L (2 units) | |||
| Ttransmission | Gearbox DT1422, 14 speed forward 2 reverse. | |||
