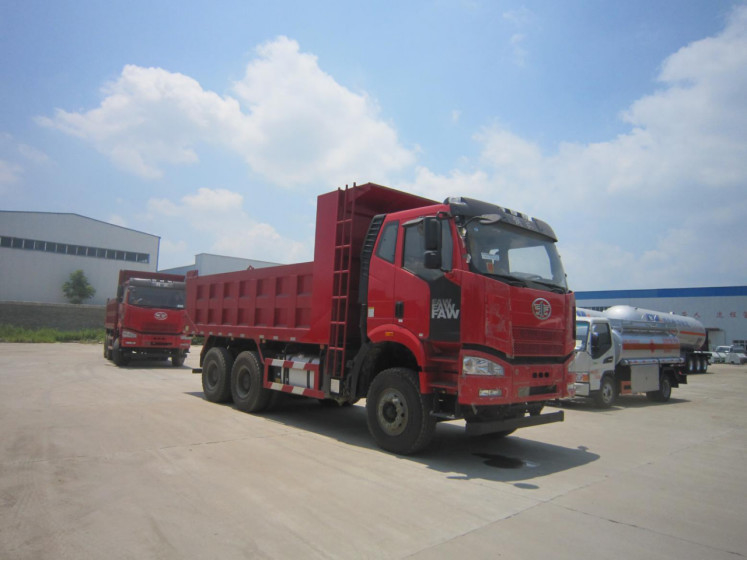

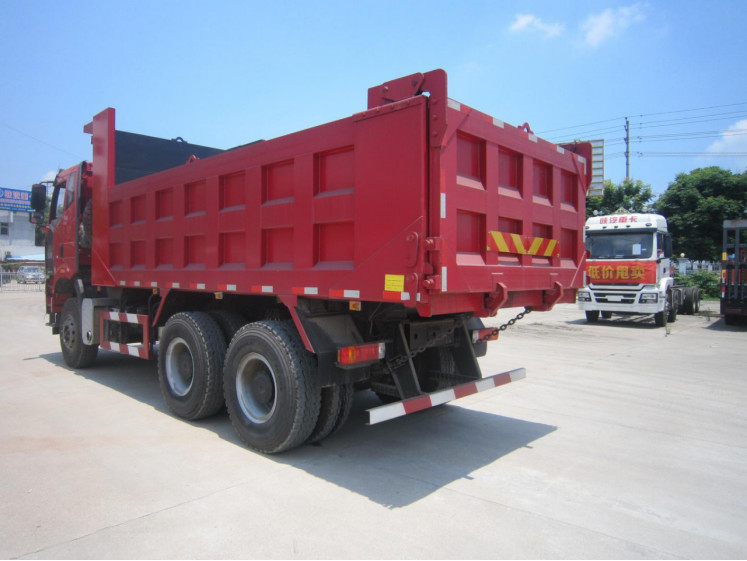

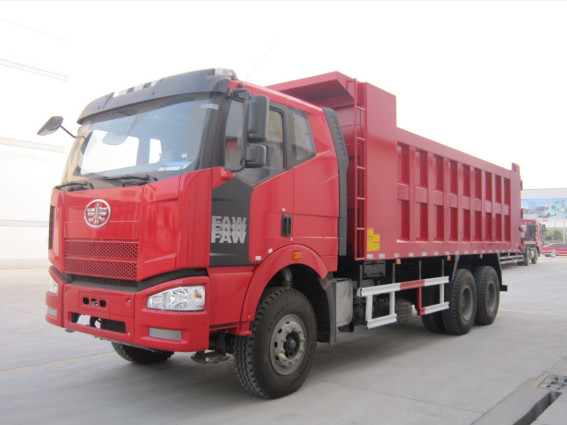

Used Dump Trucks 6×4 Drive Mode Flat Cabin EURO II Emission Standard 6 Cylinders FAW Tipper Truck RHD
Trade Terms:
Delivery time: Wihtin 30-40 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide:Used Dump Trucks,USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Used Small Trucks.Used Dump Trucks
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Used Dump Trucks
| Vehicle parameters | |||
| Vehicle Model | FAW | ||
| Overall dimensions | 9080X2495X3300mm | Curb weight | 12000kg |
| Van dimensions | 6000X2400X1500mm | Loading capacity | 30000kg |
| Chassis parameters | ||||
| Chassis model | CA3253 | Chassis brand | FAW | |
| Overall dimensions | 8410x2495x3100mm | Wheel base | 4200+1350mm | |
| Front/rear wheel track | 2050, 1830/1830 mm | Front/rear suspension | 1470/1290mm | |
| Approach/departure angle | 24/40° | Maximum speed | 72km/h | |
| Chassis Manufacturer | China FAW Group Corporation | |||
| Cab | Configuration | J5M Double coin brand tires, imported clutch, air conditioner, air spring seat, WABCO valve for the whole car, WABCO clutch booster, maintenance-free battery, foreign car, all steel front wall, control mechanism with power take-off, dry reed switch, engine system Moving, 4U bolts, police light bracket, SPL tire bolts and nuts, 30/30 spring cylinder, electric lift, 300L aluminum fuel tank, leaf spring 12/10. | ||
| Color | Red, other color is optional | |||
| Engine | Model | CA6DL1-28 | ||
| Emission | Euro 2 | |||
| Type | 6 cylinders, in-line, 4-stroke, direct injection, Turbocharged, in-line pump EGR, diesel engine | |||
| Rated power | 280hp, rated power speed 1400rpm | |||
| Displacement | 7700ml | |||
| Max.torque | 1100N.m | |||
| Bore x stroke | 110x135mm | |||
| Manufacturer | Xichai Engine Power | |||
| Tire | Size | 11.00R20 steel wire tire | ||
| Number | 10+1 nos | |||
| Clutch | φ430 diaphragm clutch | |||
| Frame | 280*90*(8+5)mm | |||
| Fuel tank | 300L iron oil tank | |||
| Front axle | A1H front axle | |||
| Rear axle | 16T casting bridge, main reduction ratio 5.286 | |||
| Drive form | 6X4 | |||
| Suspension | Multi leaf springs | |||
| Rated voltage | 24V,DC | |||
| Transmissions | gearbox CA9TB160M, 9 speed forward 1 reverse. | |||
