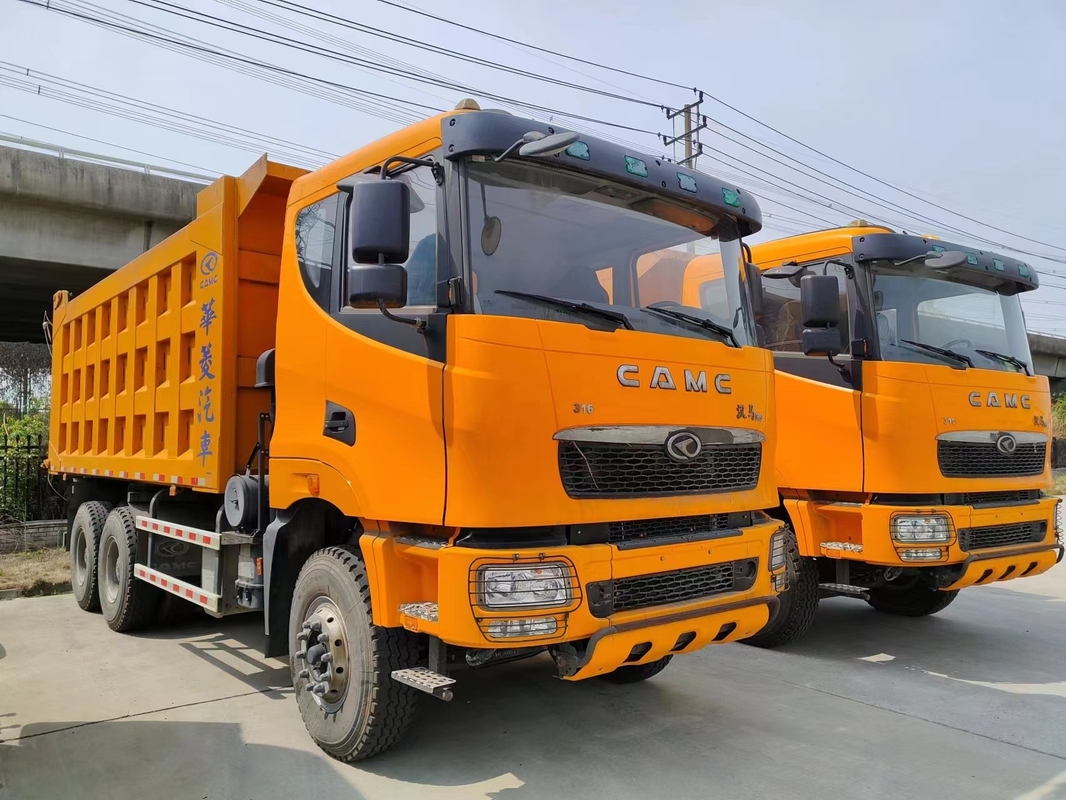

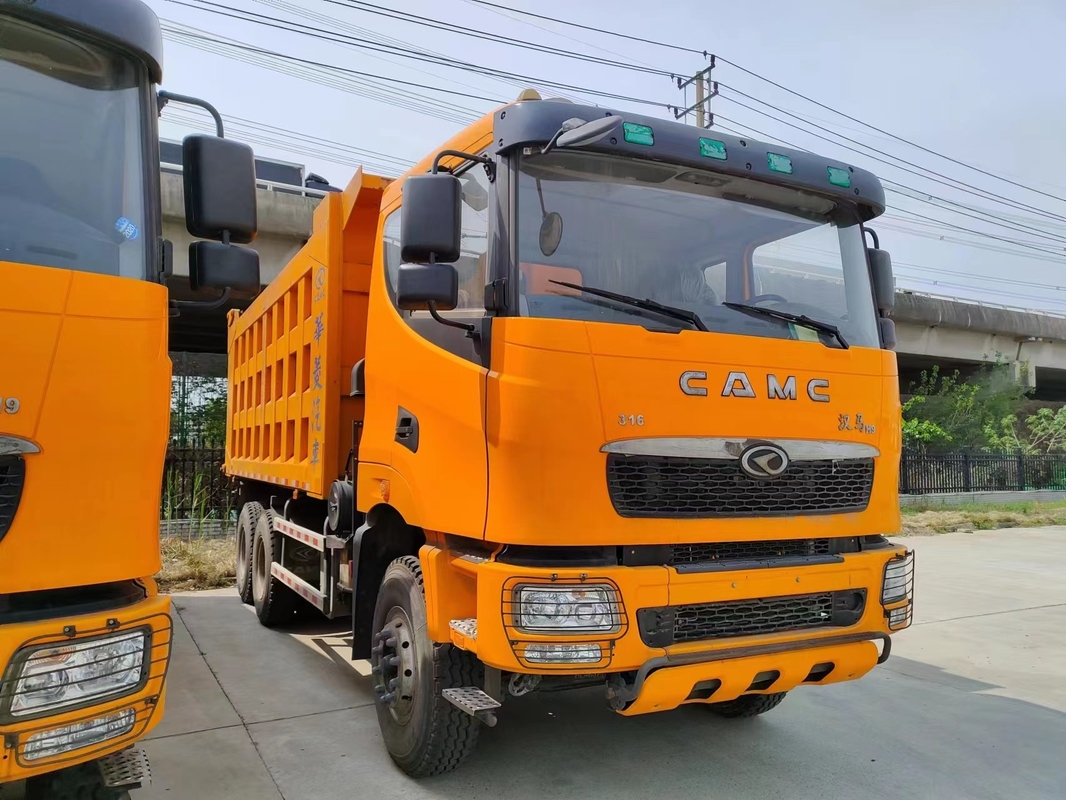

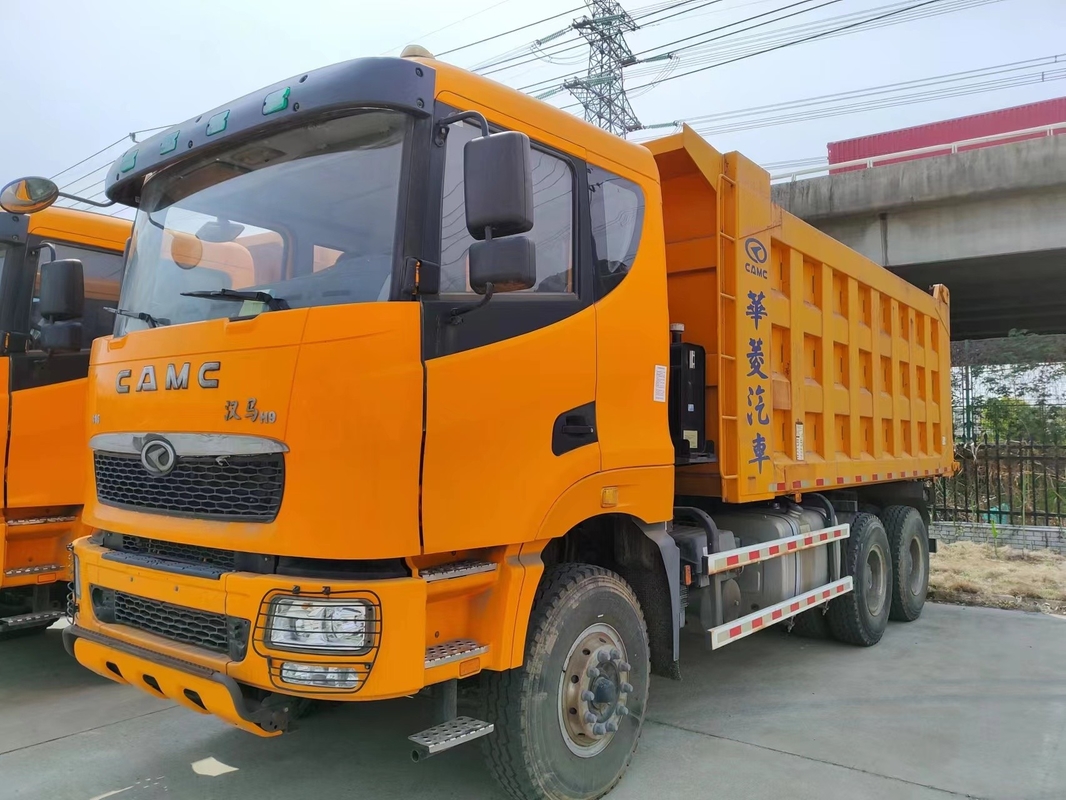

Used Commercial Dump Trucks 316hp 6×4 Drive Model 10 Tires CAMC Heavy Duty Dump Truck Flat Head
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: Used Commercial Dump Trucks,USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.Used Commercial Dump Trucks
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Used Commercial Dump Trucks, Used Commercial Dump Trucks
| Model(车型) | Driving model 驱动形式 | 6X4 |
| Name of product 产品 | CAMC European cabin,6x4 dump truck ,flat roof | |
| Steering | Steering | Left driving position |
| Engine | Model | CM6D28.316 30 |
| Manufacture | CAMC | |
| Max horse power | 316HP | |
| Max torque/speed | 1750/1100-1400 N•m/rpm | |
| Rated power | 276/1900 kW/rpm | |
| Displacement | 11.84L | |
| Bore X stroke | 128X150mm | |
| Emission standard | Euro-III | |
| Gearbox | Model | 12JSDX220T-B |
| Manufacture | FAST | |
| Numbers of gear | 12 forward, 2 backward. | |
| Axle | Model of front axle | HL7.5T 7500KG |
| Model of driving axle | HL300A(6.733) 16000KG*2 Benz technology | |
| Tire | Model of tire | 12.00R20, 10pcs & 1 spare |
| Material of rim | Iron | |
| Fuel tank | Capacity | 500L |
| Material | Aluminum alloy | |
| Chassis system | Number of springs | 11/12 |
| Thickness of frame | 8+10(mm) | |
| Height of frame | 310(mm) | |
| Dimension | Wheel base | 4100+1350(mm) |
| Dimension | 91500*2500*3600(mm) | |
| Other specifications | AC fits Local, mechanical suspension seat, mechanical suspension cabin, electric control window and electric/manual lift cabin, others are standard. Oil filter | |
| Dumper Box | ||
| Capacity | 24 M3 | |
| Dimension(mm) | 5800x2300x1800 | |
| Box thickness (mm) | Bottom 14, Side 10 底14边10 | |
| Hydraulic system | Chinese Front lifting 前顶180 | |
