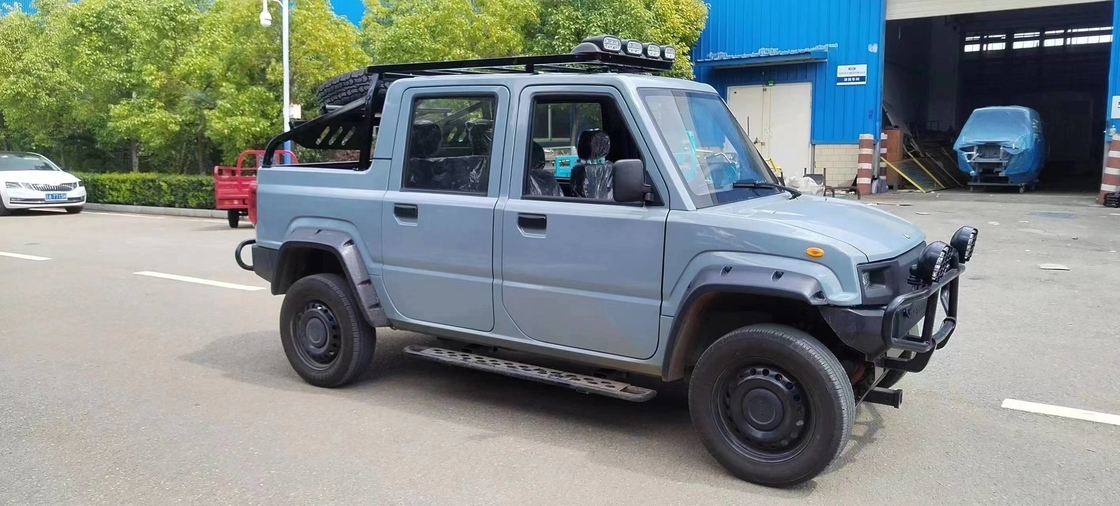

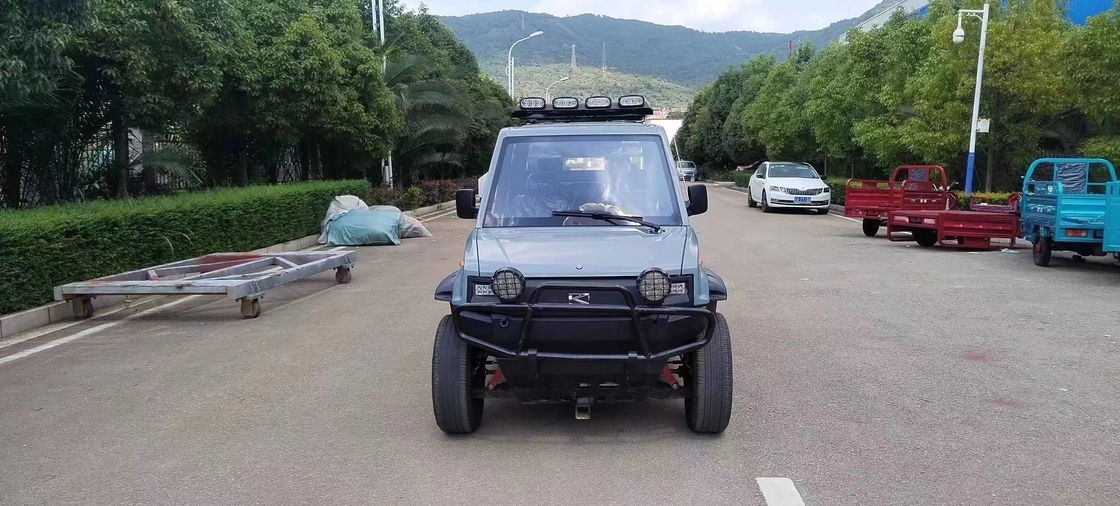

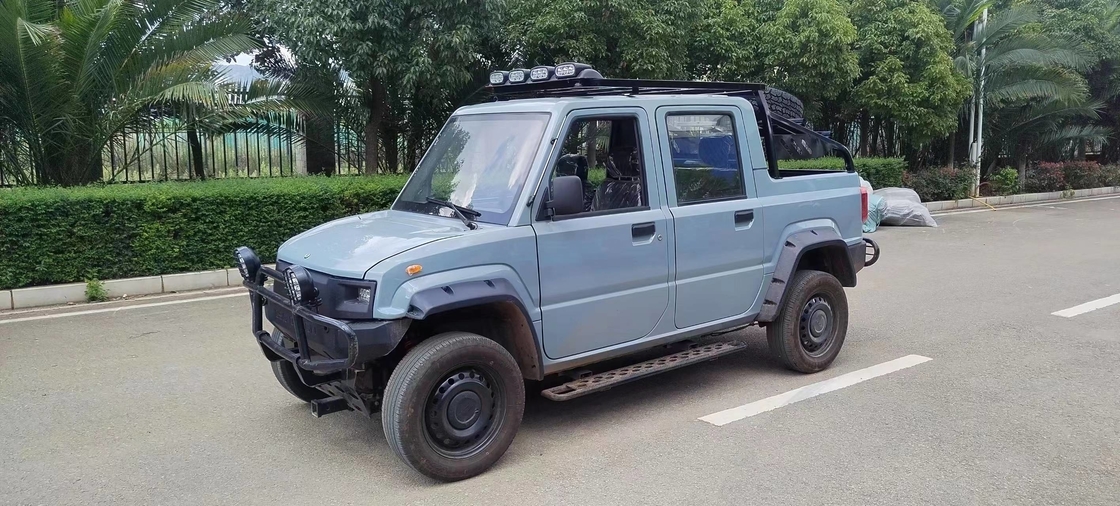

Electric Pickup Truck 4x4 Reverse Image 4 Doors Window Electric Off-Road Pickup 4 Seats
Trade Terms:
Delivery time: Wihtin 30-40 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide:Electric Pickup Truck 4x4 ,USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Electric Pickup Truck 4x4
| Model name | 4XR(LHD) |
| Model ID | KK1121S10 |
| Vehicle status | 73.6V 10.5KW |
| Length × Width × Height (mm) | 3850X1510X1845 |
| Container internal dimensions | 900X1315X400 |
| Wheelbase (mm) | 2520 |
| Front track (mm) | 1315 |
| Rear track (mm) | 1315 |
| Front suspension (mm) | 455 |
| Rear suspention (mm) | 705 |
| Curb weight (kg) | 885 |
| Load quality (kg) | 150 |
| Seats No. | 4 |
| Gross weight (kg) | 1295 |
| Performance parameters | Electric Pickup Truck 4x4 |
| Max speed (km/h) | 80 |
| Acceleration time s (0-40km) | 20 |
| Max grade | 0.35 |
| Min turning diameter (m) | ≤11 |
| Maximum angle | 30(outer wheel)/32(inner wheel) |
| Approach angle (°) | ≥55 |
| Departure angle (°) | ≥35 |
| Bauch freiheit (mm, no load) | ≥200 |
| Battery/motor parameters | |
| Battery type | LFP battery |
| Battery specification(V/Ah) | 73.6V,240Ah |
| Battery optional | - |
| Driving mileage (no load) (km) | ≥120 |
| 220V charging plug | Electric Pickup Truck 4x4 |
| 110~220V charging plug (wide voltage) | YES |
| Charging time (20%-100%) (h) | 6~8 |
| Motor type | AC asynchronous motor |
| Rated power (kW) | 10.5KW |
| Chassis/Wheel Braking | |
| Drive form | RWD/4WD |
| Front suspension | Double wishbone coil spring independent suspension |
| Rear suspension | Vertical leaf spring (3 pieces) |
| Drive axle | Front axle 8.5/15 Rear axle 8.25 |
| Front brake | Disc |
| Rear brake | Drum |
| Rim | 15X5.5J(steel) |
| Tire | 195/65 R15 (radial tire) |
| Brake assist | YES |
| Inside/outside configuration | |
| Door lock | Electric |
| Window | 4 doors electric |
| Front Seat | Four-way adjustable, with headrest, with map pocket |
| Seat belt | YES |
| Reverse image | YES |
