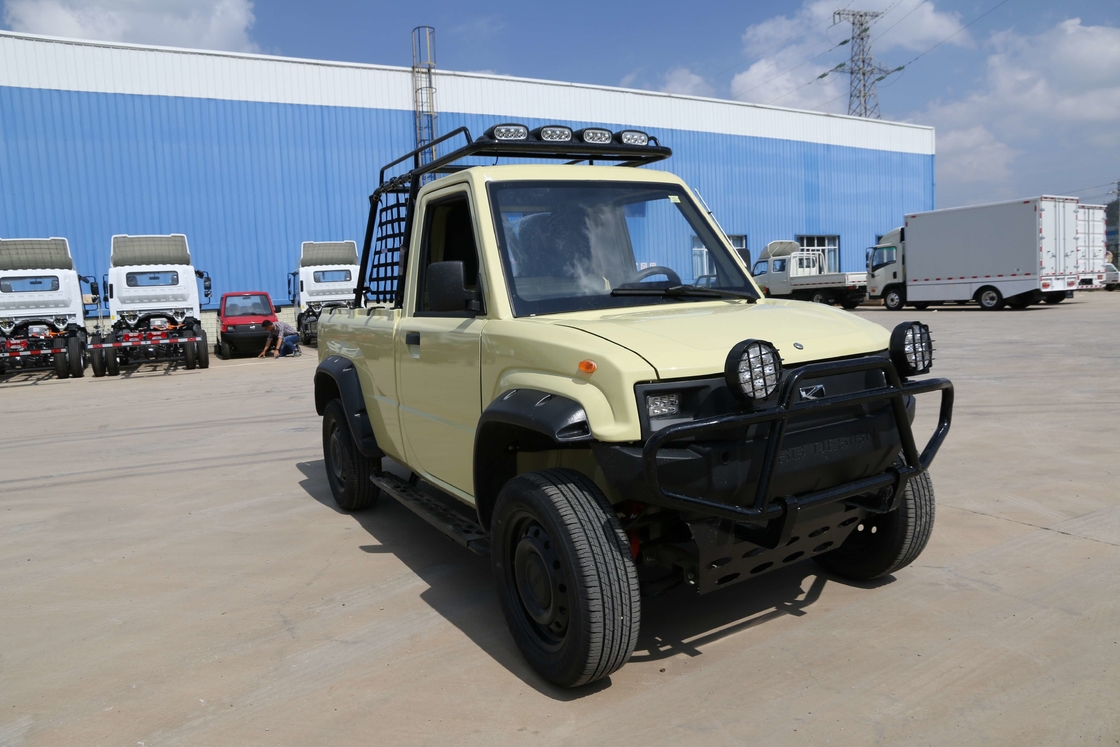

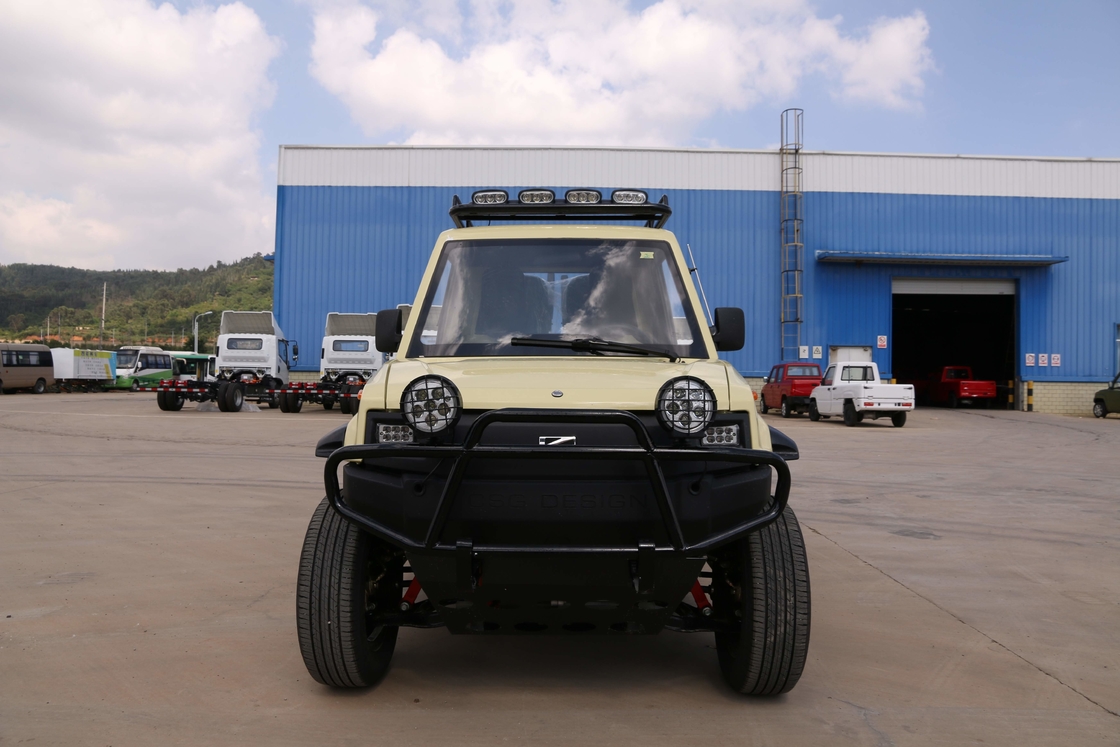

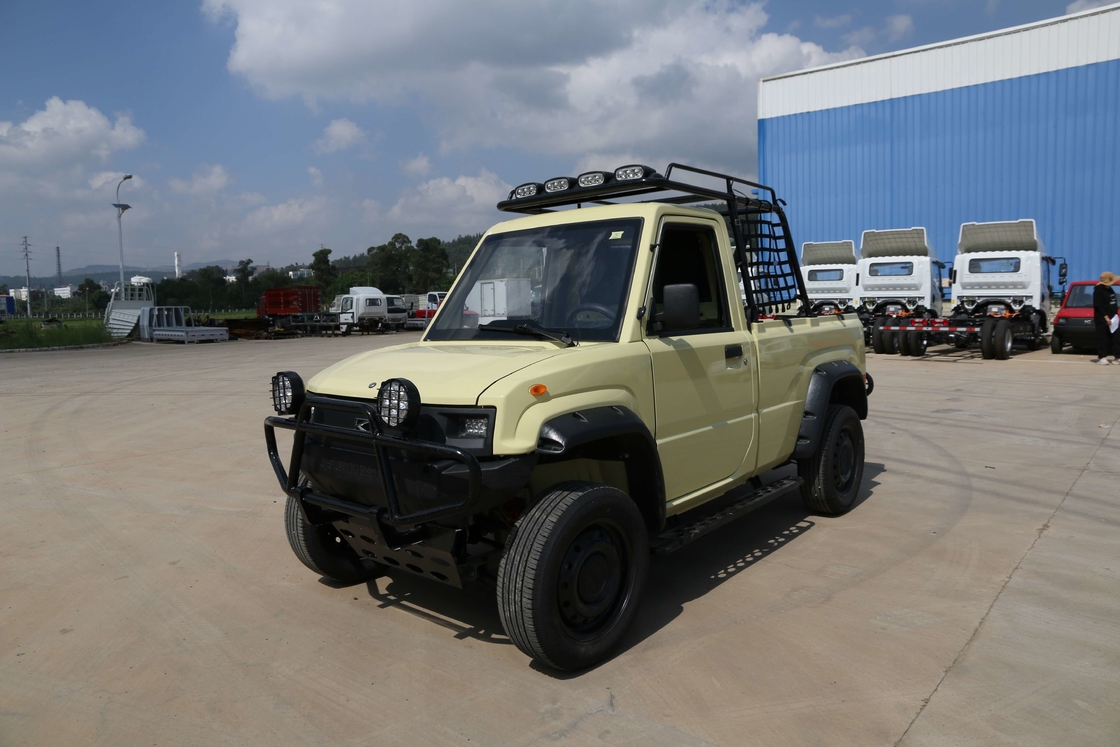

Auto New Energy Electric Vehicle Off-Road Pickup LFP Battery Four Wheel Drive 2 Seats
Trade Terms:
Delivery time: Wihtin 30-40 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide:Auto New Energy Electric Vehicle,USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Auto New Energy Electric Vehicle
| Model name | XR (LHD) |
| Model ID | KK1121D10 |
| Vehicle status | 73.6V 10.5KW |
| Length × Width × Height (mm) | 3650×1510×1820 |
| Container internal dimensions | 1620X1245X300 |
| Wheelbase (mm) | 2340 |
| Front track (mm) | 1315 |
| Rear track (mm) | 1315 |
| Front suspension (mm) | 455 |
| Rear suspention (mm) | 705 |
| Curb weight (kg) | 850 |
| Load quality (kg) | 300 |
| Seats No. | 2 |
| Gross weight (kg) | 1280 |
| Performance parameters | Auto New Energy Electric Vehicle |
| Max speed (km/h) | 80 |
| Acceleration time s (0-40km) | 20 |
| Max grade | 0.35 |
| Min turning diameter (m) | ≤11 |
| Maximum angle | 30(outer wheel)/32(inner wheel) |
| Approach angle (°) | ≥55 |
| Departure angle (°) | ≥35 |
| Bauch freiheit (mm, no load) | ≥200 |
| Battery/motor parameters | Auto New Energy Electric Vehicle |
| Battery type | LFP battery |
| Battery specification(V/Ah) | 73.6V,240Ah |
| Battery optional | - |
| Driving mileage (no load) (km) | ≥120 |
| 220V charging plug | - |
| 110~220V charging plug (wide voltage) | YES |
| Charging time (20%-100%) (h) | 6~8 |
| Motor type | AC asynchronous motor |
| Rated power (kW) | 10.5KW |
| Chassis/Wheel Braking | |
| Drive form | RWD/4WD |
| Front suspension | Double wishbone coil spring independent suspension |
| Rear suspension | Vertical leaf spring (3 pieces) |
| Drive axle | Front axle 8.5/15 Rear axle 8.25 |
| Front brake | Disc |
| Rear brake | Drum |
| Rim | 15X5.5J(steel) |
| Tire | 195/65 R15 (radial tire) |
| Brake assist | YES |
| Inside/outside configuration | |
| Door lock | Electric |
| Window | Electric |
| Front Seat | Primary/Secondary Independent Seats |
| Seat belt | YES |
| Reverse image | YES |
