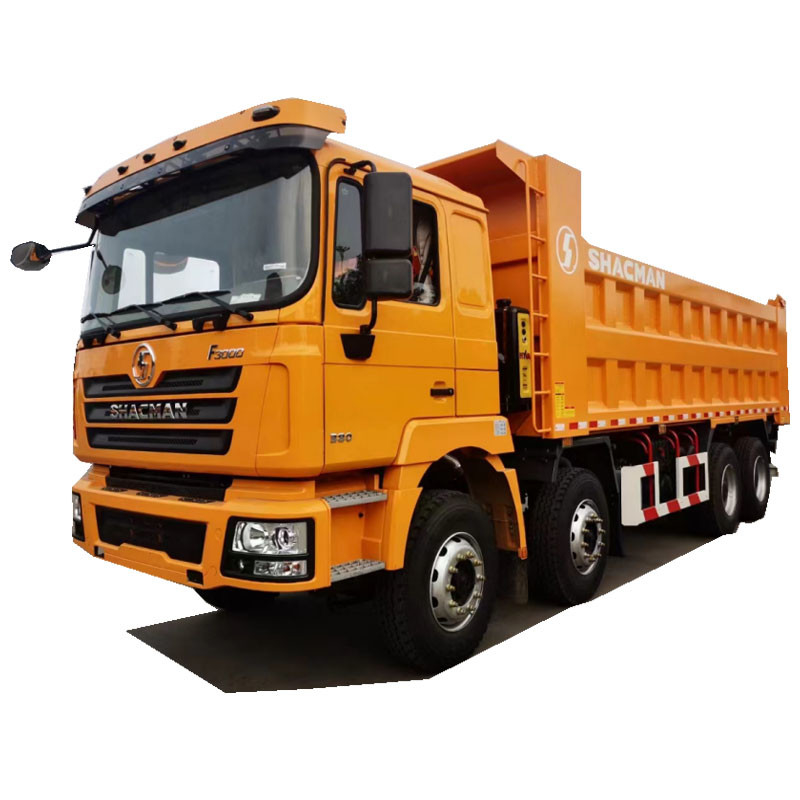

| MODEL | SX3315DV346R | |
| steering | Right Hand /RHD | |
| Driving type | 8×4 | |
| Curb weight(kg) | 15500kg | |
| Max.Weight(kg) | 31000kg | |
| Overall Dimensionmm(LxWxH) | 10335×2490×3450 | |
| Wheelbase(mm) | 1800+3375+1400 | |
| Max. Speed(km/h) | 82km/h | |
| Max. Grade ability(%) | 30 | |
| Engine | Brand | WEICHAI |
| Model | WP12.430E201 | |
| Emission Standard | EURO Ⅱ | |
| Transmission | Brand | FAST |
| Model | 12JSD200T-B+QH50 | |
| Forward gears 12 | ||
| Front axle | Brand | MAN |
| Model | MAN 9.5T | |

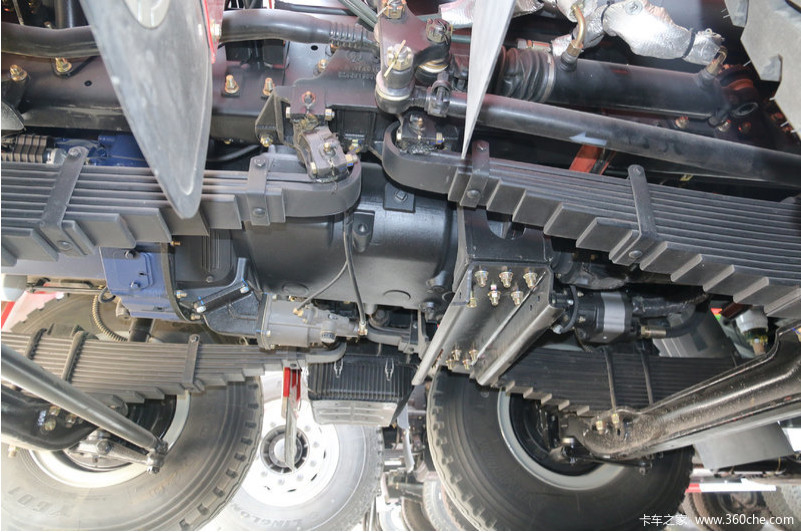

| Rear axle | Brand | MAN |
| Model | 2×16tons, MAN double cast axle,ratio 4.769 | |
| Fuel tank | 400L aluminum alloy fuel tank | |
| Wheels and tires | 13R22.5 | |
| Clutch | Φ430 | |
| Others | METAL BUMPER | |
| Cabin | F3000 mid-lengthened Cabin with single-sleeper, hydraulic main seat, four-point hydraulic suspension cab | |
| Other | Overall Interior: Duke Yellow General Paint; Rear View Mirror, electrically controlled Thermostat, electric window Shaker, manual flip, General Air Filter, three-stage pedals, water tank Grille, 165Ah maintenance-free battery, Shacman logo, all English logo | |

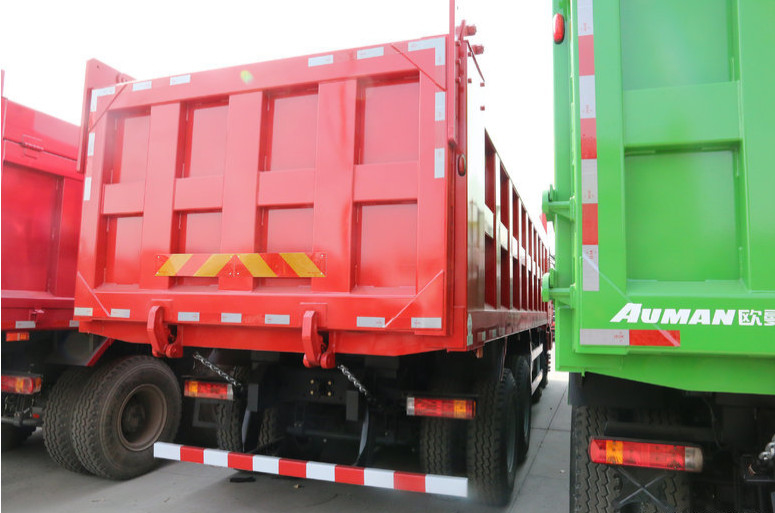

| Dump body | 6800*2440*1500mm | |
|
Thickness (mm) Hydraulic lifting system |
Bottom 12, side 10 Front lift |
|
