Place of Origin:
CHINA
Brand Name:
howo
Certification:
ISO,CCC,CE
Model Number:
420HP

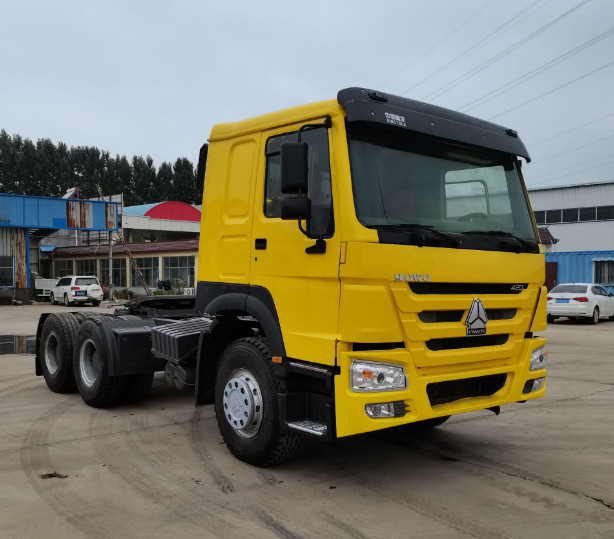

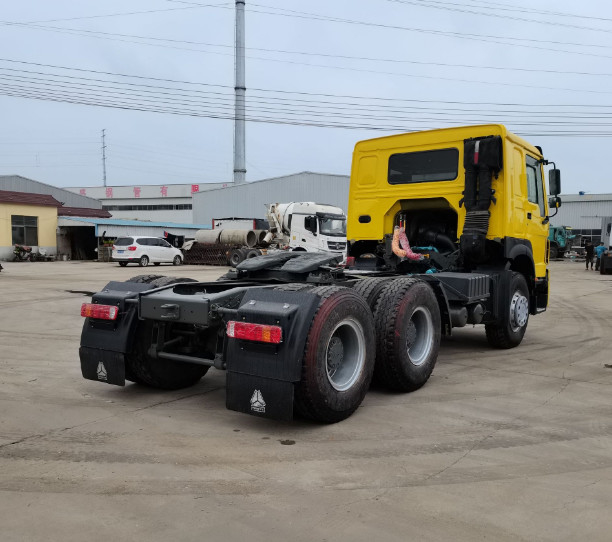

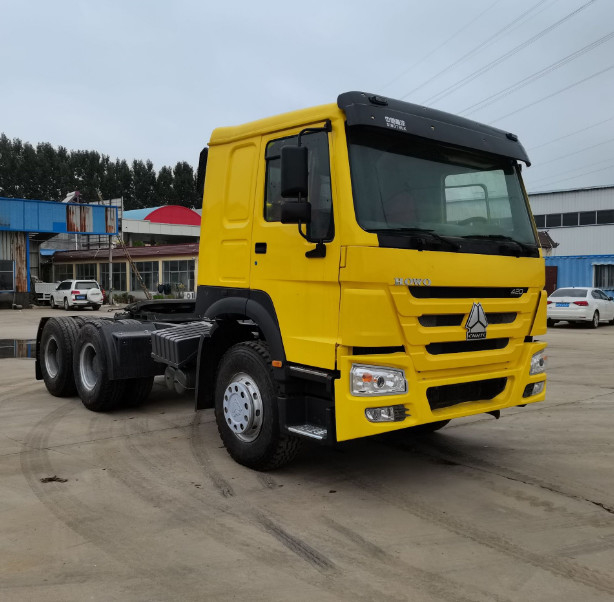

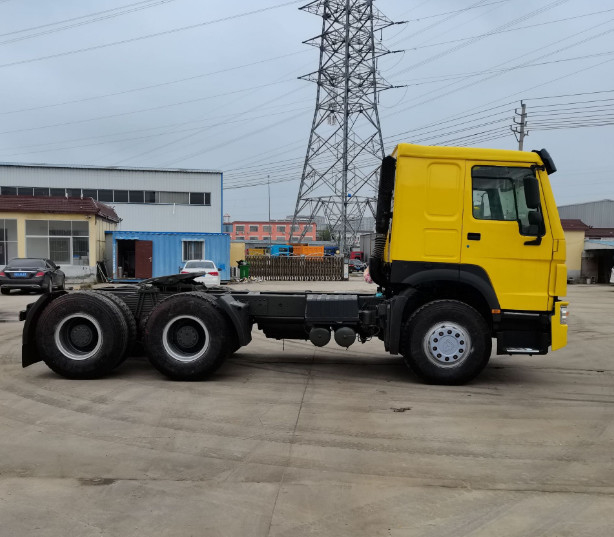

China supplier tractor truck head Used Original HOWO tractor truck 6*4 semi trailer truck tractor
Howo is a model of Sinotruk Jinan Truck Co., Ltd. and one of the main products of Sinotruk. The HOWO car produced by China National Heavy Duty Truck has the Chinese logo on the certificate of HOWO, but in spoken language, few people say that in daily life communication, people generally say HOWO, HOWO is the English logo of HOWO, Only used in export cars.
Maintain the amount of oil in the lubricating oil
Keep the amount of lubricating oil and check it frequently during use. Oil volume of wheel reducer and axle final reducer. Lack of oil will cause early wear of moving parts, and serious ablation. However, lubricating oil is not easy, because excessive lubricating oil will cause high temperature and even lead to oil leakage.
When replacing the lubricating oil of the wheel reducer for the initial maintenance of the new car, according to the regulations, when filling new oil, turn the wheel to the bottom of the oil drain plug, add lubricating oil to this high level, and then screw the oil plug into the . Rotate the wheel several times repeatedly, then turn the wheel to the highest position of the oil drain plug, and the oil plug in the half position, open the oil plug, and let the excess lubricating oil flow out until the liquid level remains at the oil plug. As far as the position is, install the oil filler plug.
There are two plugs on the rear axle housing: there is an oil drain plug at the bottom of the tooth bag, and there is a fuel plug on the near half of the tooth bag. The normal liquid level should always be kept at the height of the oil plug.
The rear axle final reducer and wheel reducer use API GL-5 grade, SAE85W/90 viscosity grade gear oil. Lubricating oil filling amount: 16.5 liters for the rear axle main reducer, 19.7 liters for the middle axle main reducer, and about 3 liters for each wheel reducer.
Used truck tractor is a new technology platform with higher technology content in China. During the research and development period, a large number of cutting-edge technologies have been adopted, and international top research and development teams such as Germany's MAN, BOSCH, AVL, and American Cummins have been combined to ensure the complete vehicle. High reliability and reduced failure rate. In order to create the best profit model of high speed, high efficiency, high reliability and fuel saving for users, Shaanxi Automobile fully launched the Delong F3000 high-speed version of the traction heavy truck. Performance and safety performance Shaanxi Auto Delong F3000 cab has been improved with higher technology. The latest cab sound insulation technology has been adopted to reduce the noise inside the car by 15%.
Product | 6x4 Used Dump Truck | Model | 420Hp | |
Drive type | 6x4, left-hand drive or Right-hand Drive | |||
Dimension | Overall dimension (mm) L*W*H | 10329*2490*3450 | ||
Box inside dimension (mm) L*W*H | 7600*2300*1100 | |||
Bucket cubage (m 3 ) | 20 | |||
Thickness of box (mm) | floor 8, side 4 | |||
Wheel base (mm) | 3625+1350 | |||
Overhang (front/rear, mm) | 1500/1739 | |||
Wheel tread (frong/rear, mm) | 2022/1830 | |||
Approach/departure angle (°) | 19/26 | |||
Weight | Gross vehicle weight(kg) | 14600 | ||
Pay load (kg) | 15930 | |||
Actual load (kg) | > 15930 | |||
Overall weight (kg) | 30660 | |||
Box lifting type | Front hydraulic lifting | |||
Max. speed (km/h) | 75 | |||
Chassis | Number of axles | 3 | ||
Tire | 12.00R20, radial tire | |||
Number of tires | 10+1 | |||
Cab | Model | HW70 standard, two seats, air conditioner, no bed |
||
Engine | Model | WD615.47 | ||
Displacement (ml) | 9726 | |||
Rated power (hp/rpm) | 371/2200 | |||
Emission standard | Euro 2 | |||
Fuel tank capacity (L) | 300 | |||
Clutch | Model | single, dry spring | ||
Gear box | Model | HW19710 | ||
Type | manual | |||
Gears | 10 forward, 2 reverse | |||
PTO | included | |||
Steering | Model | ZF 8098 | ||
Type | integral power steering | |||
Front axle | Model | HF9 hub, 9,000 kgs | ||
Rear axle | Model | HC16, 2x16,000 kgs | ||
Braking system | Type | Air brake | ||
ABS | Optiona |
