Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer

1unit
MOQ
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Tractor Truck
Power: 420HP 440HP
Model: 4x2 6x4
Drive Mode: LHD
Condition: Used One
Shupping: Within 30 Days
High Light:

Tractor Heavy Duty Cargo Trailer

,

6x4 Truck Heavy Duty Cargo Trailer

,

460HP Heavy Duty Cargo Trailer

Basic Infomation
Place of Origin: Euro
Brand Name: Volve
Certification: CE
Model Number: FM
Payment & Shipping Terms
Packaging Details: NUDE PACKING
Delivery Time: 30DAYS
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10UNIT PER MONTH
Product Description
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer

Model
ZZ4257M3241W
ZZ4257N3241W
ZZ4257S3241W
ZZ4257V3241W
Product code
4257602
4257603
4257604
4257605
Engine
Model
WD615.87
WD615.69
WD615.47
D12.42
Horsepower
290
336
371
420
Maximum output
Kw/r/min
213/2200
247/2200
273/2200
309/2000
Maximum torque
N. M/r/min
1160/1100-1600
1350/1300-1600
1460/1300-1600
1820/1100-1500
Type
6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-
Cooled, direct injection
Bore X Stroke
126X130mm
126X155 mm
Valve
2
4
Displacement
9.726L
11.596L
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC
Opening begin, Rigid fan
Option: Thermostat with 71ºC opening begin; Silicone oil fan; Cold-start with
Electric-inlet-air heating System (180Ah battery)
Cab
SINOTRUK HW76 Lengthen cab, single bunk, new type seat, adjustable steering
Wheel, EURO new type heating & ventilating system, German VDO instruments,
Safety belts, exterior sun visor, stereo radio/cassette recorder, left driving,
Air conditioner, Option: Right driving; Color; Wind guide cover
Clutch
SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance
Transmission
SINOTRUK HW15710 or HW19710 transmission, 10 forward and 2 reverse
Ratio: 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00
13.91(R1) 3.18(R2)
Front Axle
SINOTRUK HF7 Front Axle, new 7-ton front axles of equipped with drum brakes
Option: Disc brake
Steering
German ZF8098 Steering Gear Box, hydraulic steering with power assistance,
Ratio: 22.2-26.2
Rear
Axles
ST16 Double Reduction Drive Axle, Pressed axle housing, central single reduction
With planetary wheel reduction and with differential locks between wheels and
Axles, ratio: 3.93, 4.42 or 4.8; Strengthened design, loading capacity and reliability
Have been increased greatly.
HW 1697 Single Reduction Drive Axle, ratio: 4.22 or 3.73 The basic configuration
Of HOWO series on-road vehicle is especially suitable for transportation on
Express way and road above class II.
Brake
System
Service brake: Dual circuit compressed air brake
Parking brake (emergency brake): Spring energy, compressed air operating on
Rear wheels
Auxiliary brake: Engine exhaust valve brake
Wheels &
Tyres
Rims: 8.5-20, 10 hole-steel; Tyres: 12.00-20 diagonal tyre with 1 Spare tire
Option: 12.00R20 radial tyre; 295/80R22.5 tubeless; 12R22.5 tubeless;
315/80R22.5 tubeless
Electrics
Operating voltage: 24V, negative grounded
Starter: 24V, 7.5 Kw
Alternator: 3-phase, 28V, 1500 W
Batteries: 2X12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Option: 2X180Ah Batteries
Oil Tank
D type-400L Aluminum alloy fuel tank
Fifth wheel
50# (2 inch) Option: 90#(3.5 inch)
Other
Optional
Vertical Muffler; ABS; Automatic Break Clearance Adjusting Arm; Traveling Data
Recorder; Under Starting/Stopping Device; Metal Pipeline; Engine Protective Board
Delivery date
Within 30days after receipt advance
Dimensions
In mm
Overall length X Overall width xOverall height 6800X2496X2958
Wheel base 3200+1400
Performance
Maximum drving speed (km/h) 102
Fuel consumption (1/100 km) 35
Steering
TAS85

Fuel Tank(L)
300L(aluminum)

Tire
12.00R20

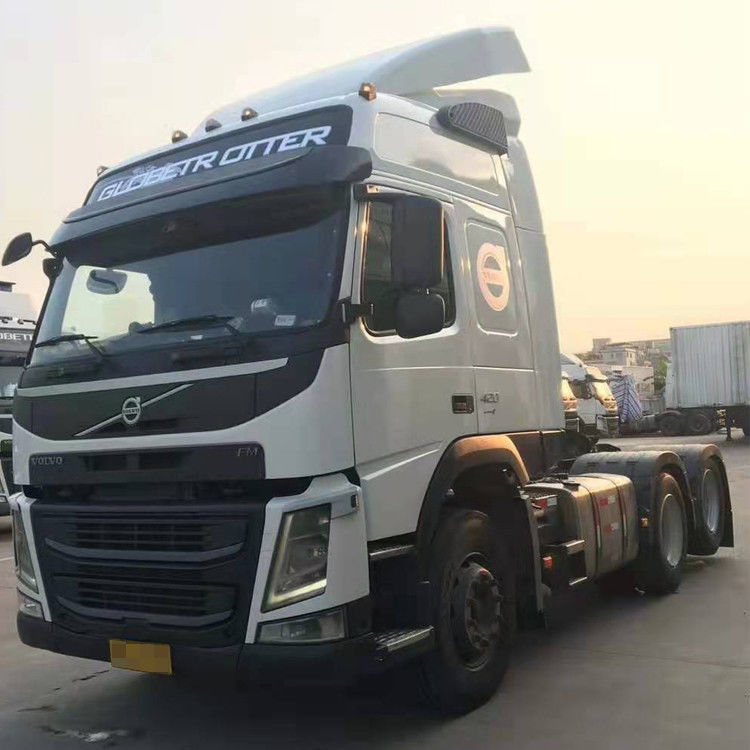

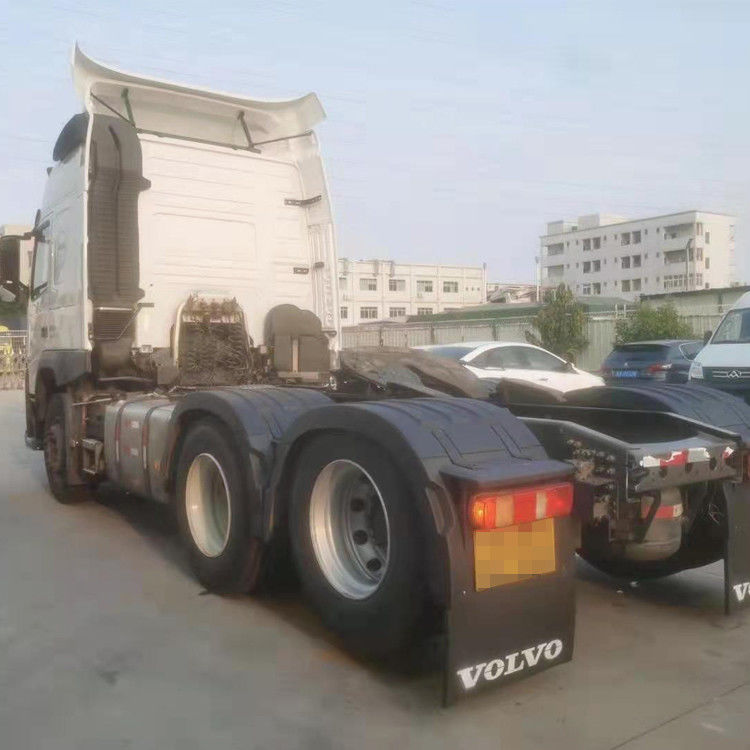

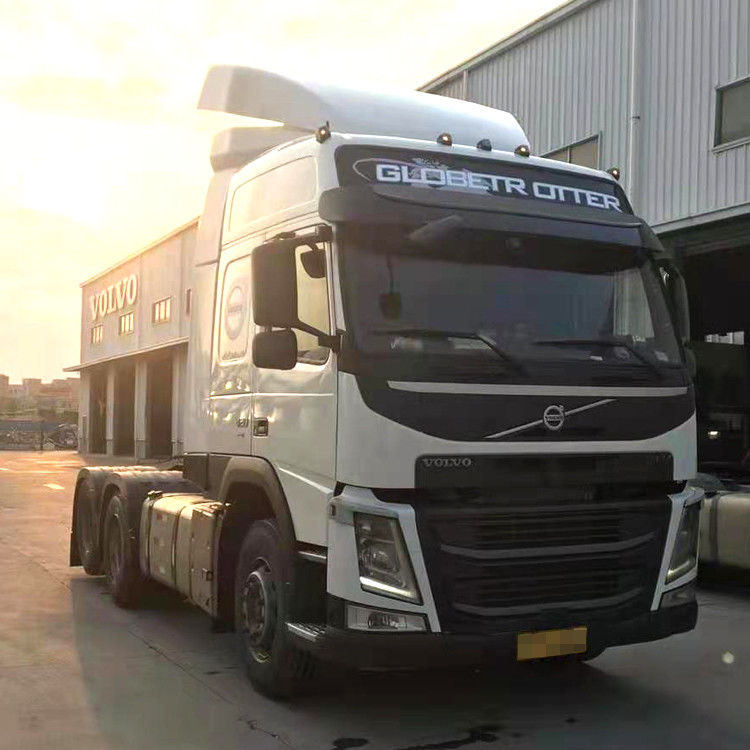

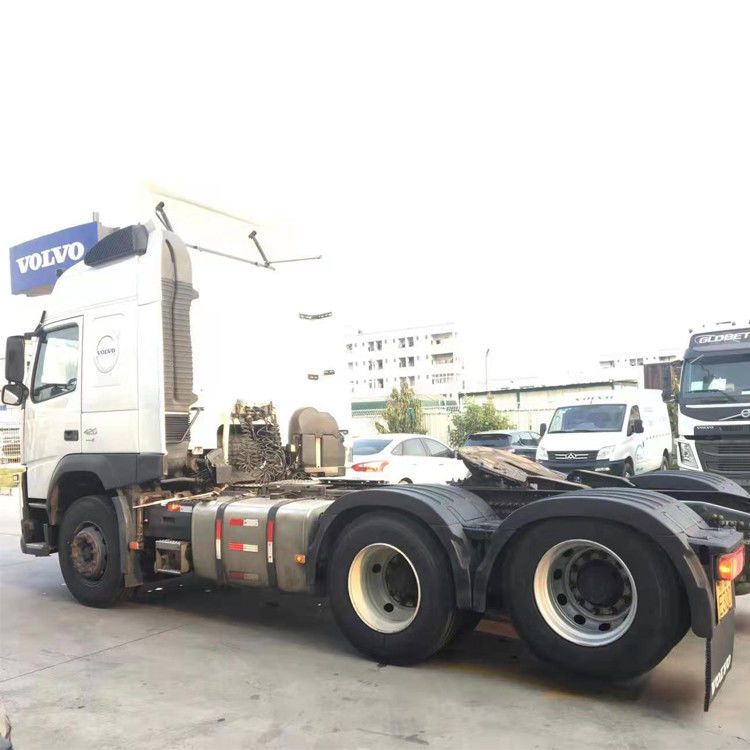

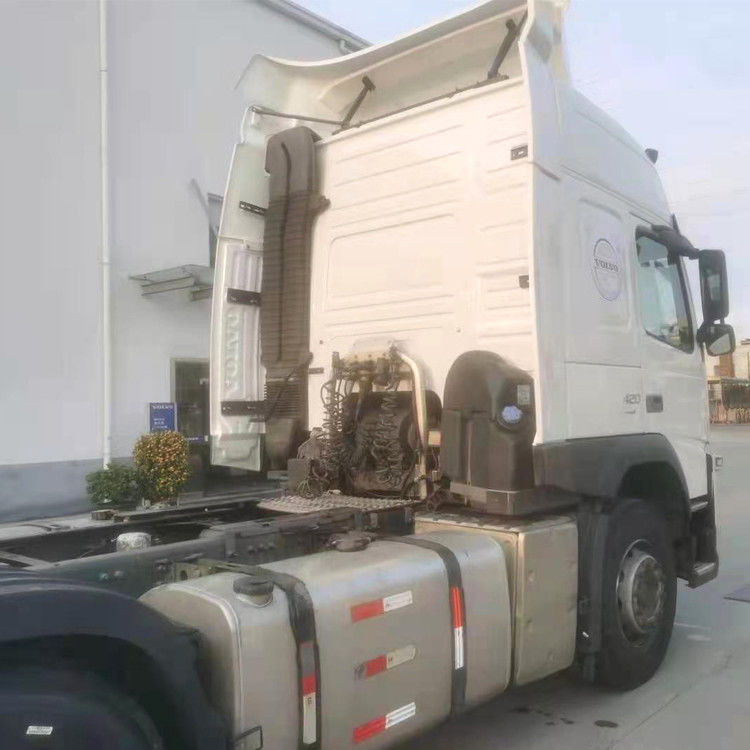

Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 0
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 1
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 2
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 3
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 4
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 5
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 6
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 7
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 8
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 9



Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 10
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 11
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 12
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 13
Used FM VOLV O 420 440HP 460HP 6x4 Truck Tractor Heavy Duty Cargo Trailer 14
