Place of Origin:
CHINA
Brand Name:
Dongfeng
Certification:
ISO
Model Number:
20000L

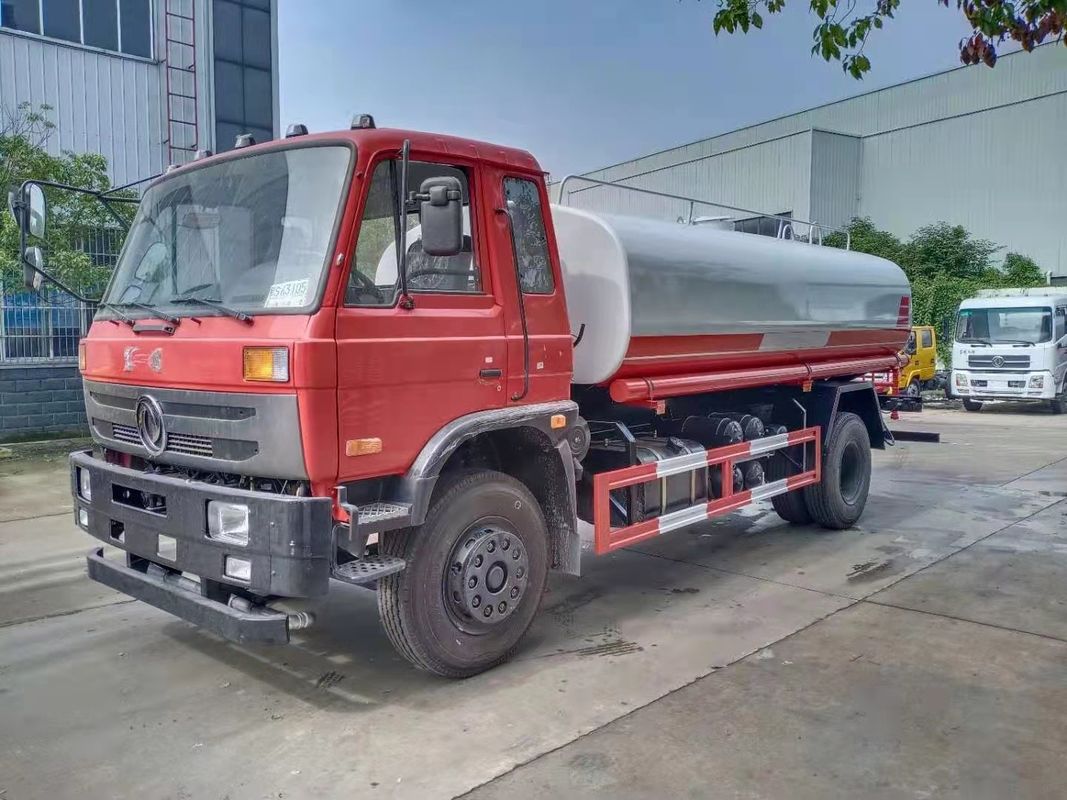

20000L Water Tanker Truck With 210 HP Diesel Engine Dongfeng 4x2 6x4 Sprinkler Price
|
Product Name
|
Water tank truck
|
||
|
Driving Type
|
Left hand drive ( RHD is optional)
|
||
|
Weights
|
|||
|
GVW(kg)
|
6000, 15000, 25000, 31000
|
||
|
Rated payload weight(kg)
|
3000L-30000L
3CBM-30CBM 3 tons to 30 tons |
||
|
Curb weight(kg)
|
9005
|
||
|
Dimensions
|
|||
|
Wheelbase(mm)
|
4325+1350
3300, 3800, 4500, 5100mm is optional |
||
|
Overall Dimension(mm)
|
9800×2495×3130
|
||
|
Box dimension
|
3-30 CBM
3000L -30000L |
||
|
Max speed(km/h)
|
98
|
||
|
Engine
|
|||
|
Engine model
|
WP10.290
(120hp, 190hp, 266hp, 340hp, 380hp, 420hpHP) |
||
|
Engine type
|
4 stroke water-cooled,water-cooling.
|
||
|
No. of cylinders
|
straight-6 cylinders
|
||
|
Displacement(L)/Power(km)
|
6.494/162
|
||
|
Max. torque (kw)
|
800N.m
|
||
|
Drive Line
|
|||
|
Transmission
|
7DS100,7 forwards,1 reverse gear,manual operation
|
||
|
Steering
|
With power steering
|
||
|
Brake system
|
Air brake
|
||
|
Cab
|
|||
|
Air container
|
Have
|
||
|
Standard configuration
|
L cab,sound, and so on
|
||
|
Axle
|
|||
|
Front axle
|
5 tons
|
||
|
Rear axle
|
AK153 tons
|
||
|
Tire specification
|
|||
|
Tire specification
|
10.00R20 standard tire,10 tires+1 spare tire
|
||
|
Specification fuctionof water truck
|
|||
|
Tanker shape
|
Ellipse water tanker
|
||
|
Tanker material
|
Q235,carbon steel
|
||
|
Introduction
|
1. Suction≥7m Sprinkler width≥14m Range≥28m
|
||
|
2. with front spout, back spill and side spout function
|
|||
|
3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be
adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
|||
|
4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming
function. |
|||
|
Sprinkling area(m)
|
»14m
|
Vertical suction range (m)
|
»7m
|
|
Watering pressure
|
250-450Mpa
|
Pump style
|
Self-priming centrifugal pump
|
|
Manhole
|
Manway access hole on top of tank;1 units DN500mm manhole
|
||
|
Front spray function
|
Front spray bar with fan sprayer on both sides, spray range: »28m
|
||
|
Manwalk way
|
With skid resistance manwalk way on top of tank
|
||
|
Horse reels
|
Two 75 ft hose reels at each side of the truck
|
||
|
Water pump
|
Water pump model: CLW80QZF-60/90N
|
||
|
Water pump flow rate(L/m): 60m3/h
|
|||
|
Head of delivery(m): 90m
|
|||
|
Self-priming function(min/4m):1.5
|
|||
|
Efficiency(%):95%
|
|||
