Place of Origin:
China
Brand Name:
HOWO
Certification:
ISO
Model Number:
C7H

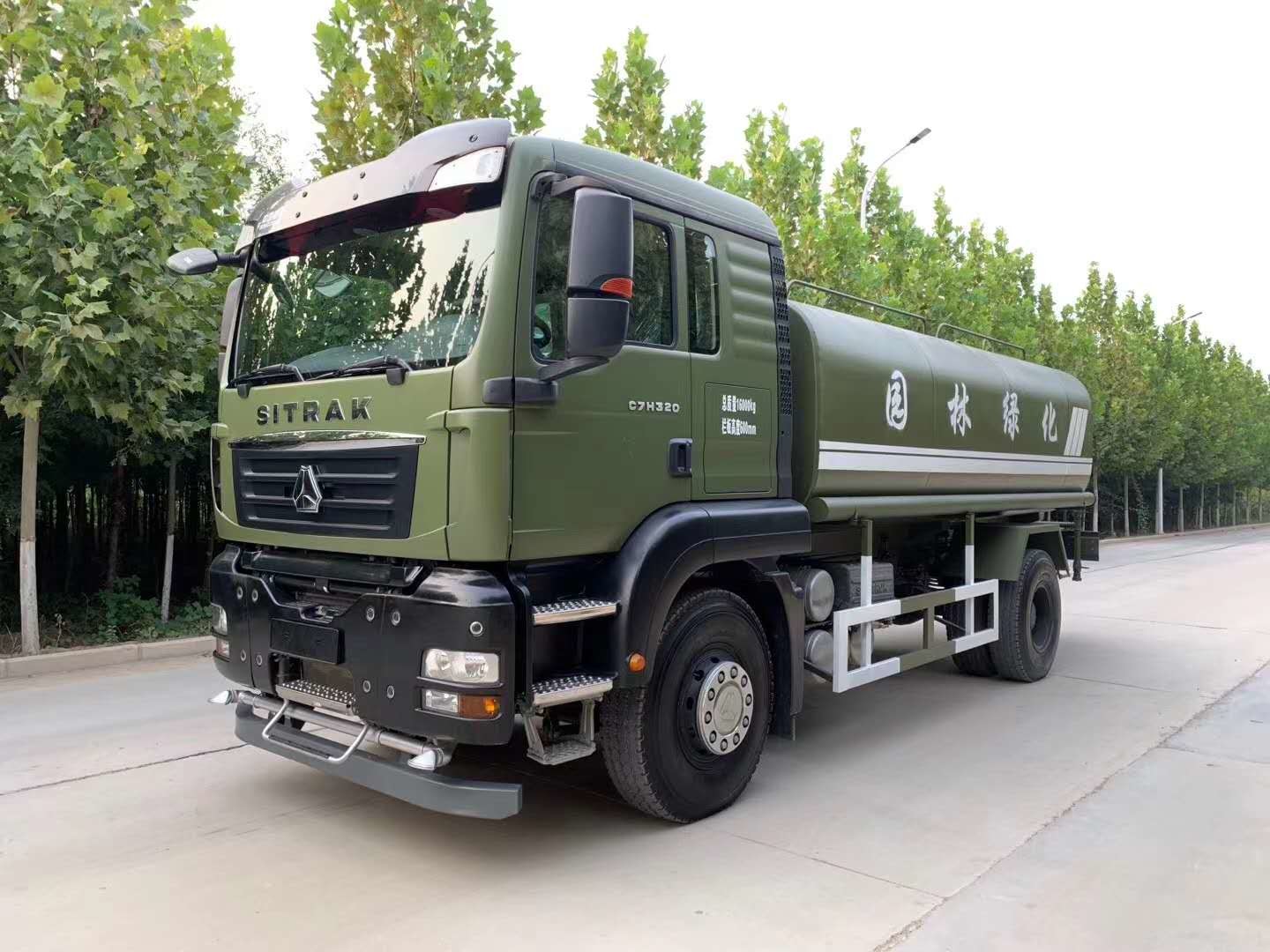

A water tank truck, street sprinkler, water bowser, wate cart, water tanker truck or water tanker, is a motor vehicle designed to carry water on road. Custom-built water tanks are used to deliver potable drinking water and non potable water for dust control or any other specific use that non drinking water can be used for. Our tanks transport water that is dispensed through a pumping system either through a hose reel for delivery or through a series of spray heads and nozzles to spray the water in different directions.
Our water tankers are available in steel, stainless steel, or aluminum, and can be constructed to haul drinking water and non drinking water each with their own specific and different types of pumping systems.
Features and Specifications
• 3000–30,000 liters capacity
• Available in steel, stainless steel and aluminum
• Offset baffle opening to prevent sloshing
• Tanks designed to carry potable and non-potable water
• Chassis frame mounted rear platform area
• Rear mounted hydrant fill with an air space
• High quality, little maintenance, competitive price
• Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
• Numerous chassis available
Technical parameter for water tank truck
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8500×2496×2958 |
| Wheel base (mm) | 4600 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 14.5/15 | |
| Weight in KGS | Tare Weight | 9180 |
| payload | 10000 L | |
| Front axles loading capacity | 1x7000 | |
| Rear axles loading capacity | 1x16000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | FOTON |
| Model | WD615.62 | |
| Type | 4-stroke direct injection , 6-cylinder in-line, turbo-charging and inter-cooling | |
| Horse Power(HP) | 266 HP | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW15710,10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | |
| Tire | 12.00R20 steel radial tires with one spare | |
| Tank specification |
10,000 liters, tank thickness is 4 mm, seal is 5 mm Equipped with front(rear, side)sprinkler(sprinkling width>14m ) Equipped with pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauze |
|
