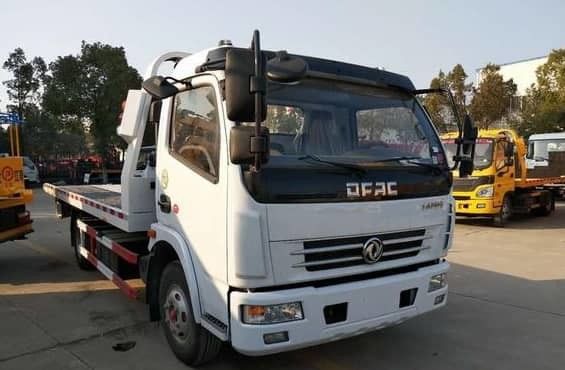

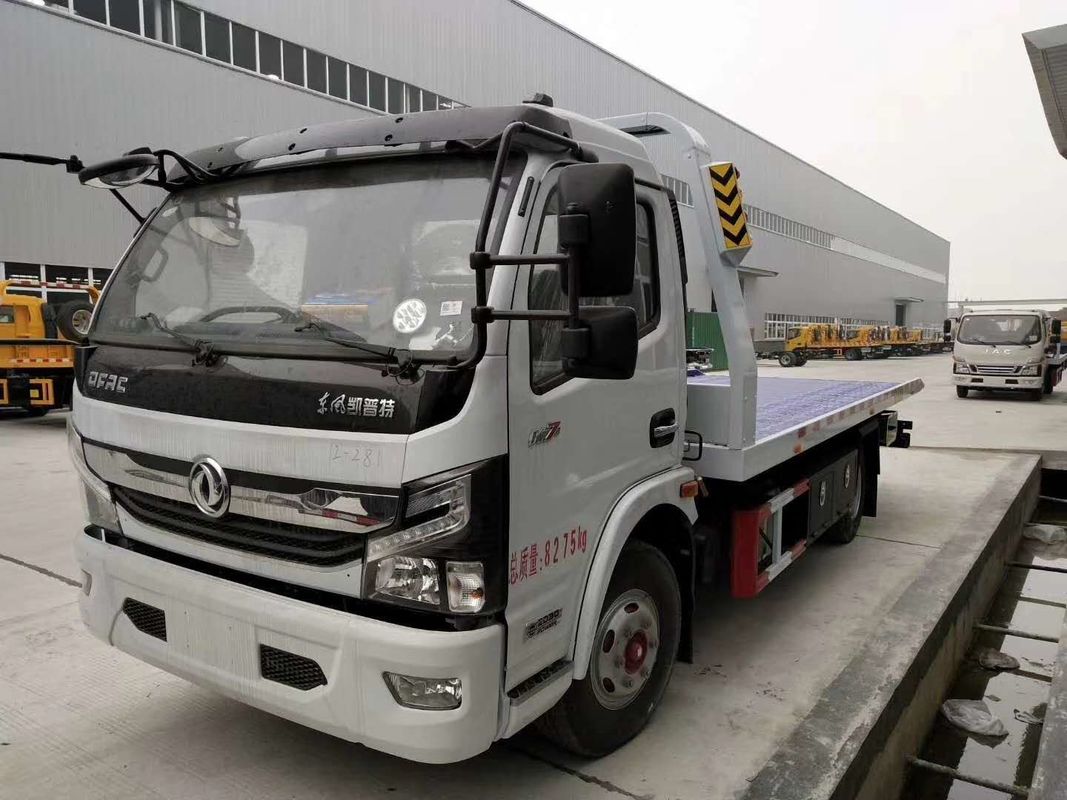

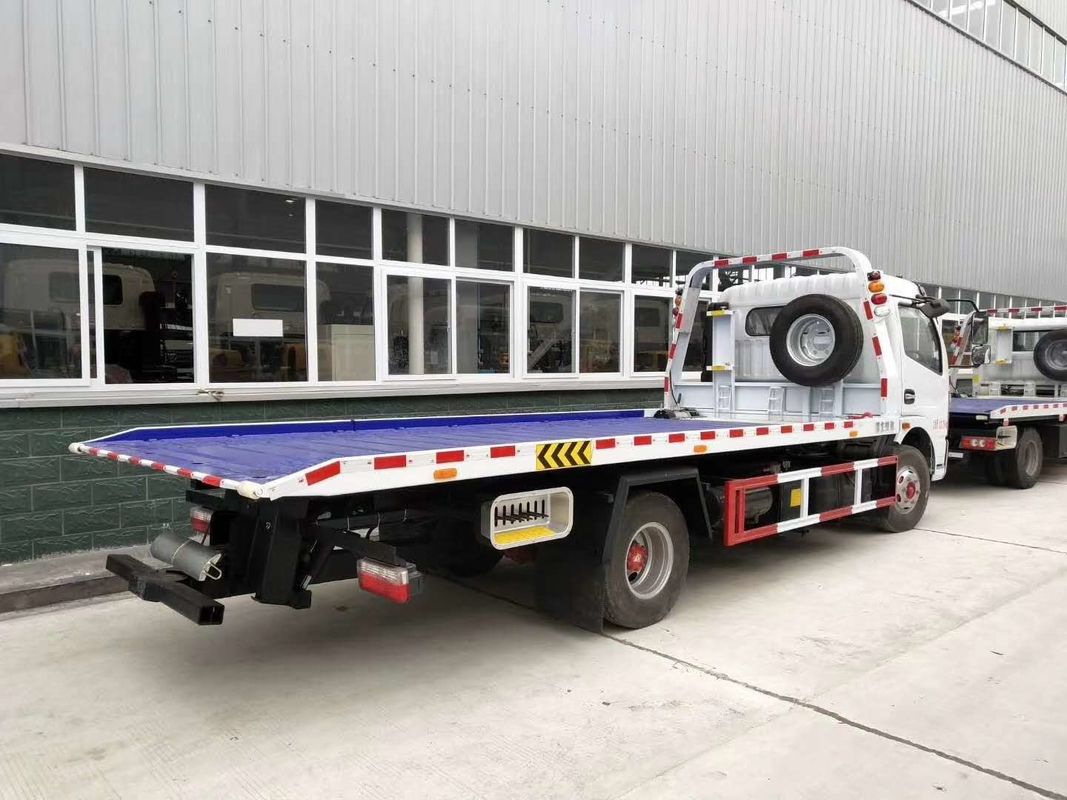

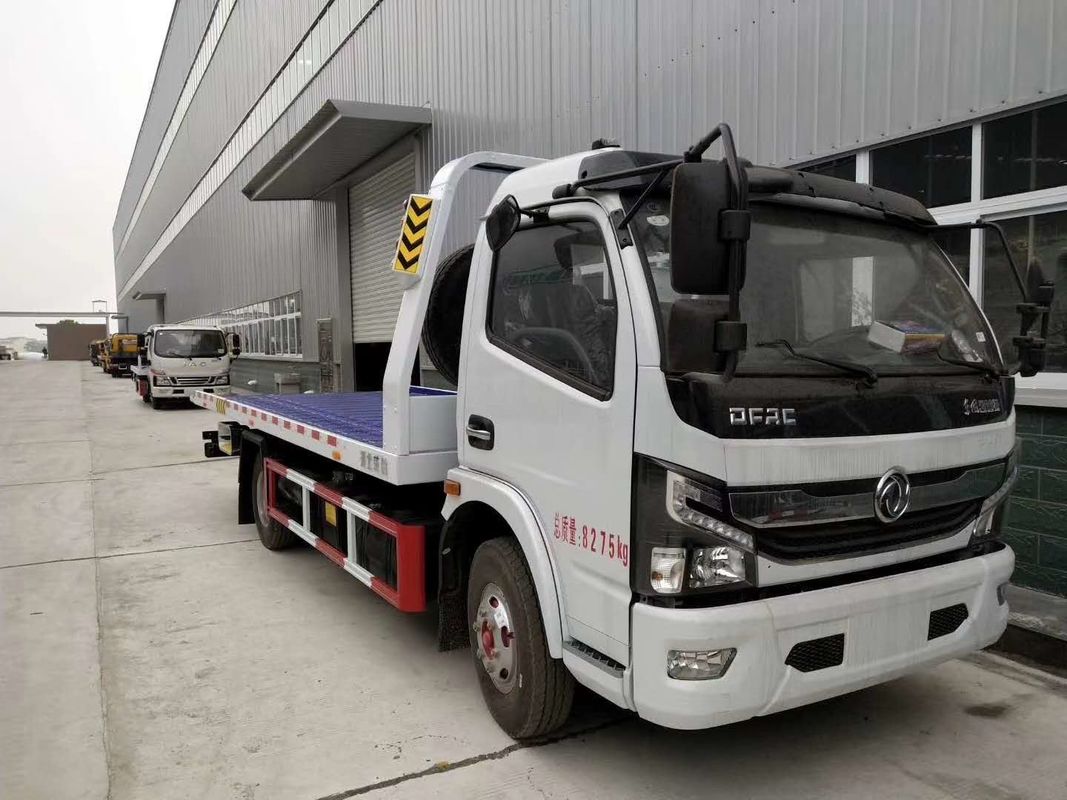

150HP Breakdown Recovery Flatbed Rescue 5 Ton Tow Truck
1Unit
MOQ
150HP Breakdown Recovery Flatbed Rescue 5 Ton Tow Truck
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: Dongfeng
Certification: ISO CE
Model Number: 5
High Light:

5 Ton Tow Truck

,

150HP Flatbed Tow Truck

Payment & Shipping Terms
Packaging Details: Nude Packing
Delivery Time: 15-30days
Payment Terms: T/T, Western Union, L/C,
Supply Ability: 15Unit/Month
Specifications
Name: 5 Ton Tow Truck
Power: 95-150HP
Brand: DONGFENG, FOTON,HOWO, FAW
Engine: YUCHAI,CHAOCHAI,WEICHAI
Product Description

Wrecker 5ton 6 Ton 7 Ton Breakdown Recovery Flatbed Rescue Tow Truck

Product Description:

1. Purpose of 6ton flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 6ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 6ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of 6ton flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.

Tow truck, whole name is road wrecker, also called as the wrecker truck, tow wrecker truck, tow truck wrecker, wrecker towing truck,etc.ISUZU FOTON 4X2 5Ton Deck Rollback Wrecker Truck Used Tow Truck.

General Technical Parameters
Overall Dimension 9440x2480x2760 (mm)
Gross Vehicle Weight 12495kg
Curb Weight 8000kg
Chassis Specification
Chassis Parameters Chassis Brand Dongfeng
Cabin Row and half, Right Hand Driving
Engine Model Cummins ISD180 50, 4 Cylinders
Power 132KW/180HP
Emission Standard EURO V
Displacement 4.5L
Fuel Type Diesel
Gearbox 6 Forward & 1 Reverse Gear
Front and Rear Axle Load 4.5T/9T
Wheel Base 4700(mm)
Overhang( Front/Rear) 1015/2450(mm)
Angle(Approach/departure) 24/9(°)
Brake System Air Brake
Steering Gear Power Assistant
Tire 9.00R20, 6 Pieces with 1 Spare Tire
Maximum Speed 110(km/h)
Superstructure
Flatbed Dimensions 7200x2450 (mm)
Max. Loading Weight 6000(kg)
Operating Stroke 3300 (mm)
Min. Angle of Slope 8(°)
Platform Height from the Ground 1070(mm)
Winch Quantity 1pc
Winch Rating Pulling Capacity 6000 (kg)
Length of Steel Cable 25 (m)
Hoisting Organ Rating Under-Pulling Capacity 6000 (kg)
Rating Under-Hoisting Capacity 2000 (kg)
Fully Extended Max Under-Hoisting Capacity 1600 (kg)
Max Under-Hoist Useful Length 1640 (mm)
Remarks 1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars
150HP Breakdown Recovery Flatbed Rescue 5 Ton Tow Truck 0150HP Breakdown Recovery Flatbed Rescue 5 Ton Tow Truck 1150HP Breakdown Recovery Flatbed Rescue 5 Ton Tow Truck 2150HP Breakdown Recovery Flatbed Rescue 5 Ton Tow Truck 3
