Place of Origin:
CHINA
Brand Name:
Dongfeng
Certification:
ISO
Model Number:
5ton

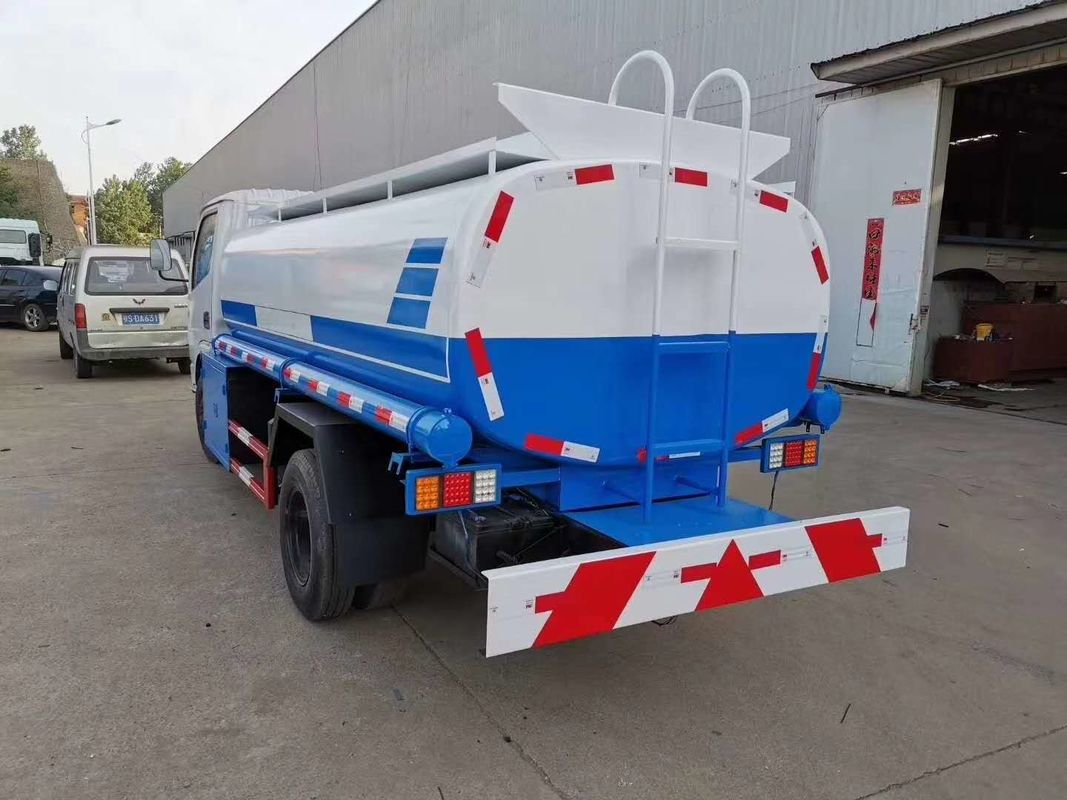

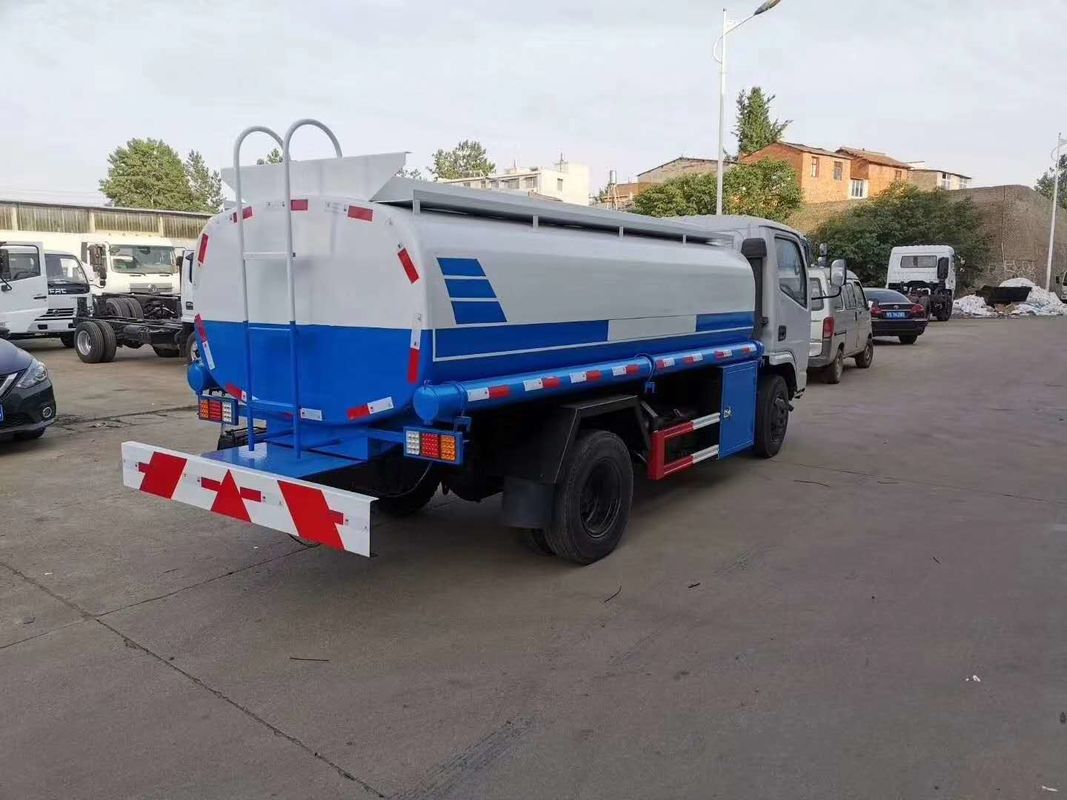

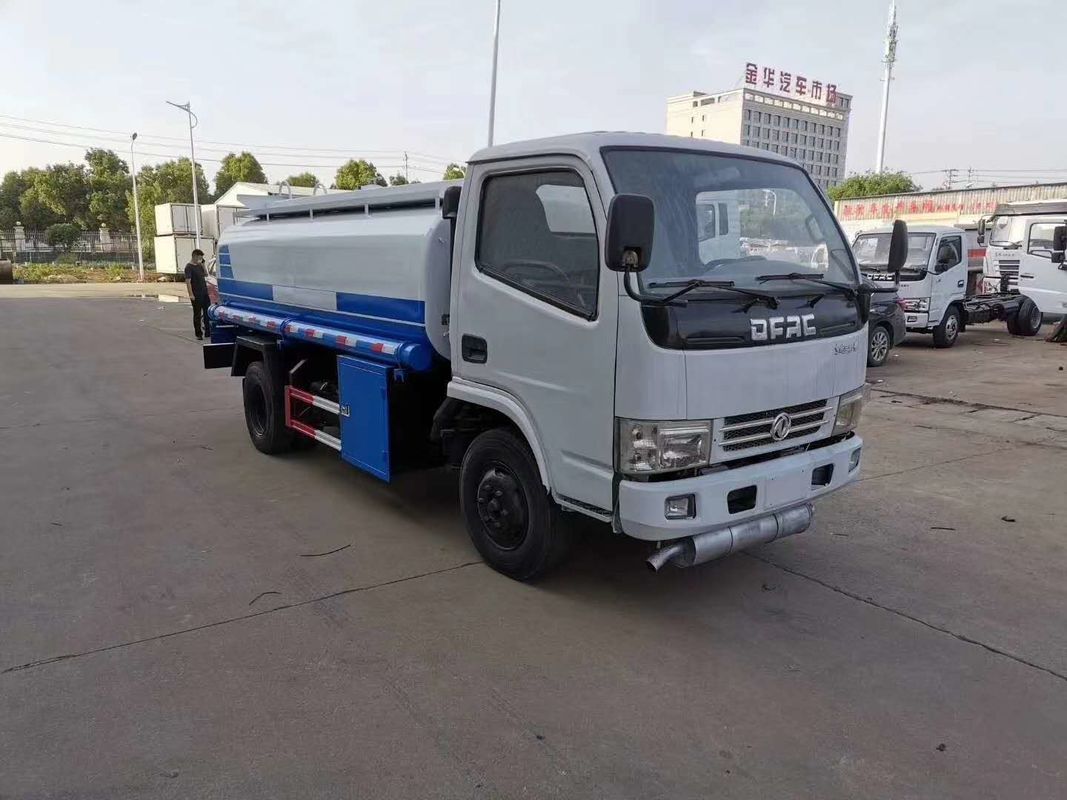

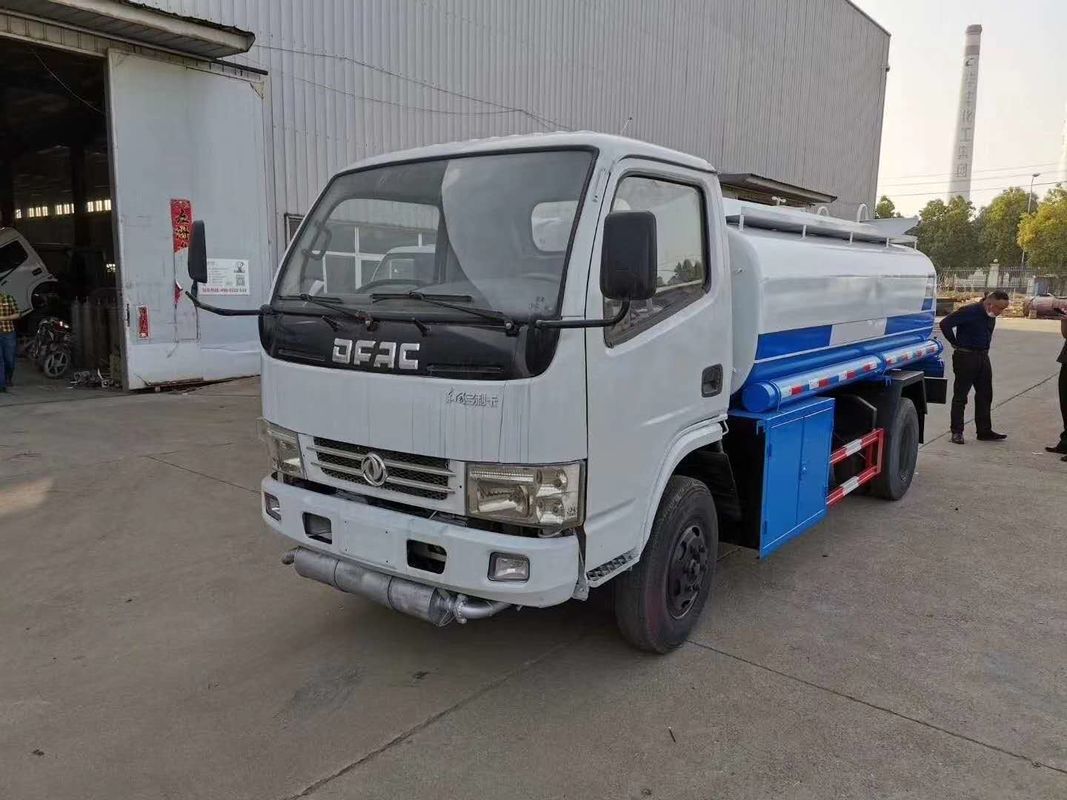

Light Duty Dongfeng 4X2 5000L Oil Fuel Tank Truck 5m3 Oil Refueling Truck
Description | Hot sell Dongfeng 5ton Right hand drive 5000 litres refuelling tank truck 5m3 | |
Drive Model | 4X2 | |
Chassis | EQ1060 | |
Vehicle Main Dimensions | Dimensions(L x W x H)mm | 5990*1960*2400 |
Wheel base (mm) | 3300 | |
Overhang (front/rear) (mm) | 1032/1658 | |
Wheel track (front/rear) (mm) | 1506/1466 | |
Approach/Departure angle(°) | 12/18 | |
Weight in KGS | Curb Weight | 3365 |
GVW. | 6495 | |
Max. driving speed(km/h) | 80 | |
Engine | Model | CY4102-C3F |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 95HP | |
Emission standard | Euro III | |
Gearbox | 5 forwards & 1 reverse | |
Clutch | Reinforced diaphragm clutch | |
Steering Gear | Power steering, hydraulic steering with power assistance | |
Fuel tank (L) | 100 | |
Tire | 7.00-16 tire , 6 pcs+1 spare tire | |
UPPER TANK SPECIFICATION | ||
Protective material | Q235 carbon steel | |
Tank meterial | <5mm> carbon steel | |
Equipment | 1. Equipped with good pump .valves and pipes,a set of Fuel Dispenser | |
2. Fueling truck equipped with a set of filling unit | ||
2. Equipped with a ladder on tank | ||
3. It can be design to have several compartments According to your requirements | ||
4. Equipped with speed limiter.The speed limit of 80 km/h |
(1) Functions:
The Fuel tank truck ( also called oil delivery truck, Mobile Fuel Truck, oil loading truck, oil refuelling truck, oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, fuel bowser, diesel dispensing truck, etc) is mainly used for storage and transport of oil, diesel, gasoline, kerosene, etc.
It can be devided into seperate compartments, to transport different types of fuels, lubricant oil, crude oil, alcohol, etc. .
The Fuel tank truck can equipped with oil pump equipped, could pump in/out the medium. also can with computer fuel dispenser. It could be used as the mobile filling station.
According to different needs, oil delivery truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station.Actually it can be called as the mobile filling station.
(2) Specification Parameters:
* Above is the Technical Parameters table, if it didn't show, you can contact with us!
We can offer diferent brand and volume capacity fuel tank trucks! According to the use of tankers, customers can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump.==
