Place of Origin:
China
Brand Name:
Cooper
Certification:
ISO
Model Number:
12.5m

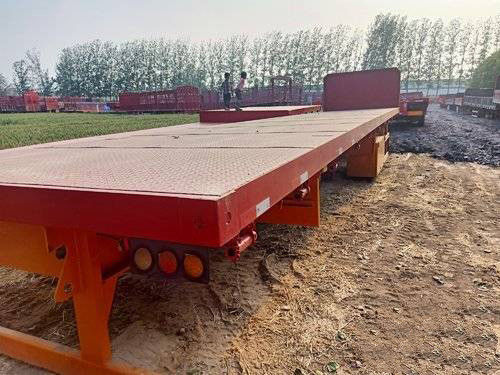

12.5m 3 Axles 40 FT Low Flatbed Semi Trailer BPW Axle with Good condition
| size | 12500mm*3000mm*3100mm |
| payload | 80ton |
| tare weight | 10000kg |
| axle | 3x13ton/14ton/16ton/20ton brand can be opentional |
| suspension | mechanical suspension/air suspension/american type/germany type can be opentional |
| tire | 11R22.5/12R22.5/11.00R20/12.00R20 brand can be opentional |
| wheel rim | 8.25/9.0/8.0/8.5 |
| kingpin | 2"/3.5" |
| I beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 20mm,width140mm;Middle Flange 16mm height 500mm;bottom flange 20mm,width 140mm |
| landing gear | jost c200 /fuwa two speed 28ton |
| floor | 4mm checkered plate |
| twist lock | Optional |
| spare tire carrier | 2 pcs |
| tool box | 1 |
| air wiring | doule air line |
| electricity wiring | 6 core wiring;24v or 12v ;LED lamp; |
| brake system | wabco relay valve;drum brake;t30/30 brake chamber |
| paiting | complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime; 2 coats of final paiting |
| colour | Optional |
| accessories | One standard tool box,one spare tire carrier,one crank,one shaft headwrench, four side lights, two rear lights |
