9.4M Rear Dump Semi Trailer Truck With 3 Axles And 28T TFOC Landing Leg

9.4M Rear Dump Semi Trailer Truck With 3 Axles And 28T TFOC Landing Leg
Features Gallery Product Description Request A Quote
Condition: New
Front Support: 28T, TFOC Brand
Outer Dimension: 9400*2550*4000mm
Inner Dimension: 8600*2400*2200mm
Tire Specs: 12R22.5, Triangle Brand
Number Of Tire: 12
Suspension: Mechanical Suspension
Rim: 9.0
High Light:

used stainless steel tanker trailers


2nd hand trailers

Basic Infomation
Place of Origin: CHINA
Brand Name: COOPER
Certification: ISO/CCC
Model Number: COOPER
Payment & Shipping Terms
Packaging Details: NUDE PACKAGING
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 per month
Product Description

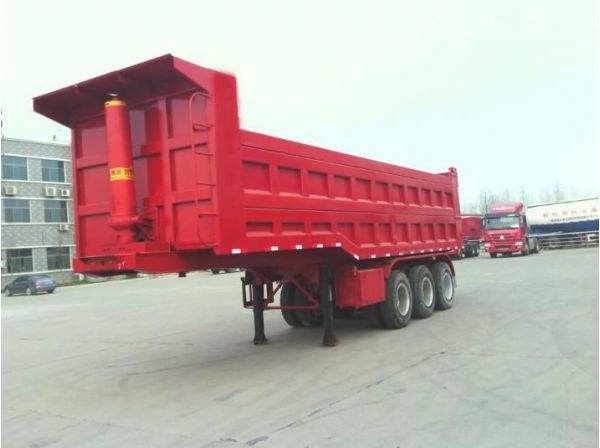

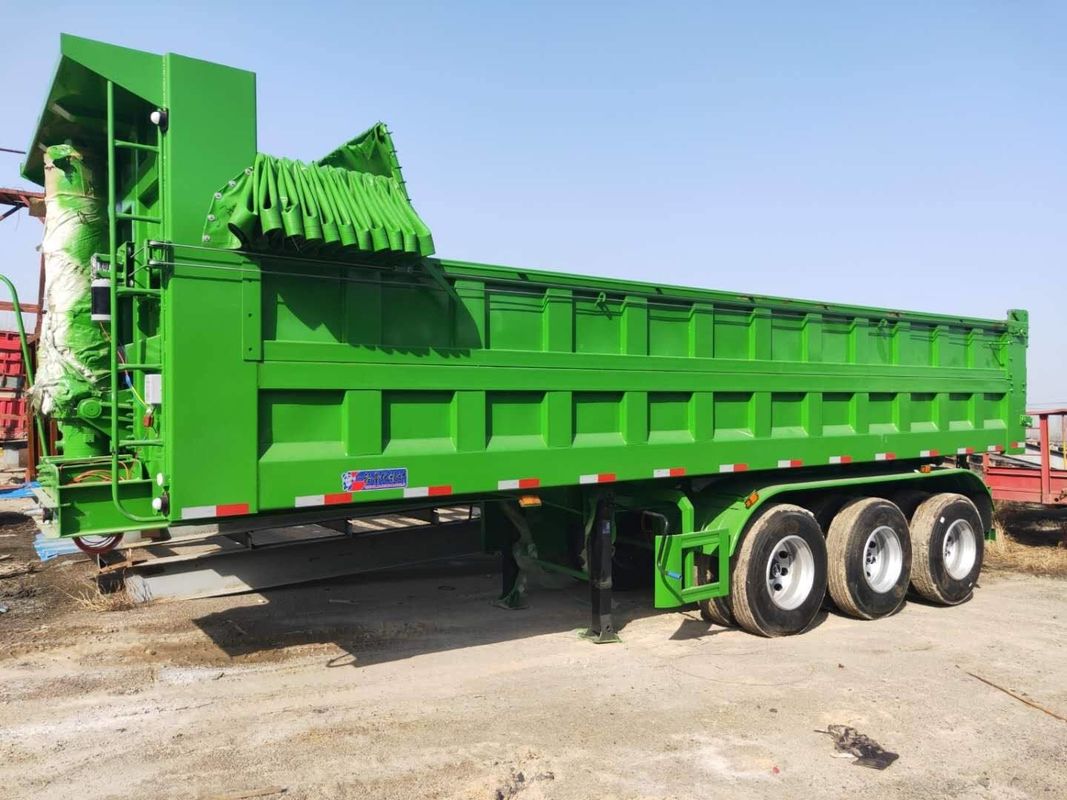

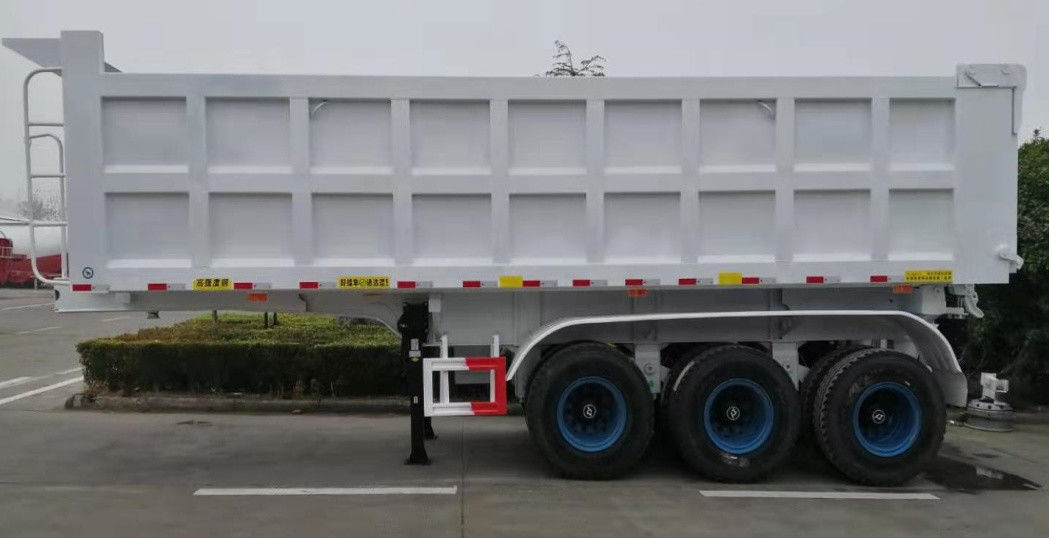

9.4M Rear Dump semi trailer truck trailer with 3 axles and 12pcs of tires mainly used for construction and coal mining industry




Traction Height Saddle height from the ground when unloaded is 1300±20mm
Longeron Model and Specification Middle plate thickness:8MM, front and rear thickening Hydraulic system 220 domestic lifting hydraulic system with high quality
Axle Model and Qty Factory equipped, 16T,3PCS Ground Plate and Side Plate 8mm/6mm
Side Beam 14# Channel Steel Cross Bracing 10# Channel Steel
Tire Model and Qty 12R22.5, Triangle brand, Vacuum tire, 12Pcs Rim Model and Qty 9.0, 12Pcs
Front Support Model Steel material, 28T, TFOC brand Suspension Leaf Spring System 10Pcs each, width 90MM, thickness 16MM, Mechanical suspension
Traction Pin Model 50# or 90# Brake System 4pcs double brake chamber and 2pcs single brake chamber, 2pcs air reservoir
Toolbox 1pcs at right side Spare Tire Carrier 1Pcs
Painting Two-component polyurethane automotive paint Electrical System 24V, LED lamps
Other configuration parameters not marked here will follow the manufacturer's standard configuration.




Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.

Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.

Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
