ZHENGZHOU COOPER INDUSTRY CO., LTD. is one professional supplier of both brand new and used commercial vehicles and heavy equipment as well as relevant spare parts from China.
About buses, the brands we supply including YUTONG, HIGER, KINGLONG, GOLDEN DRAGON, ZHONGTONG, TOYOTA, etc.
Regarding trucks, we supply various types, such as dump trucks, tractor trucks, special purpose trucks, while the brands include DONGFENG, SINOTRUCK HOWO, SHACMAN, BEIBEN, HUALING, etc.
Through solid partnership with the key bus and truck manufacturers, plus the professional staff team for sourcing of new and used/second hand buses & trucks on an international basis, ZHENGZHOU COOPER INDUSTY CO., LTD. has grown quickly to be a professional and famous player and exporter in the field.
Looking to the future, ZHENGZHOU COOPER INDUSTY CO., LTD. will enhance core competitiveness to MEET EVERY CUSTOMER’S REQUIREMENTS!

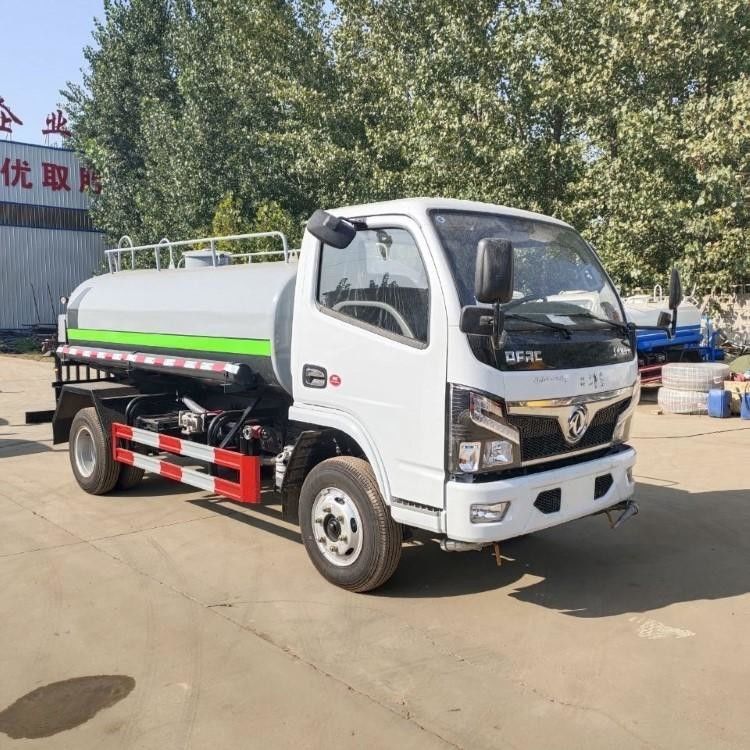

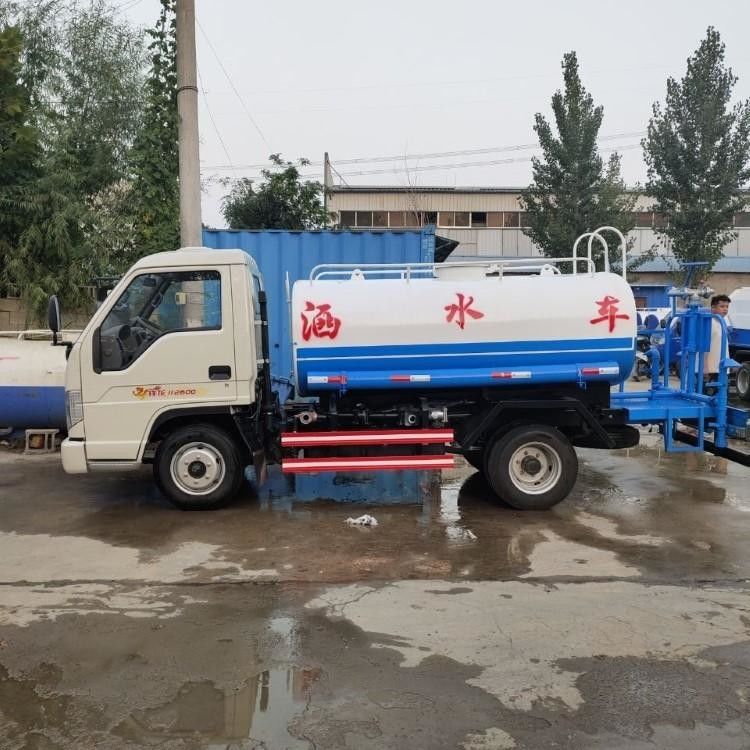

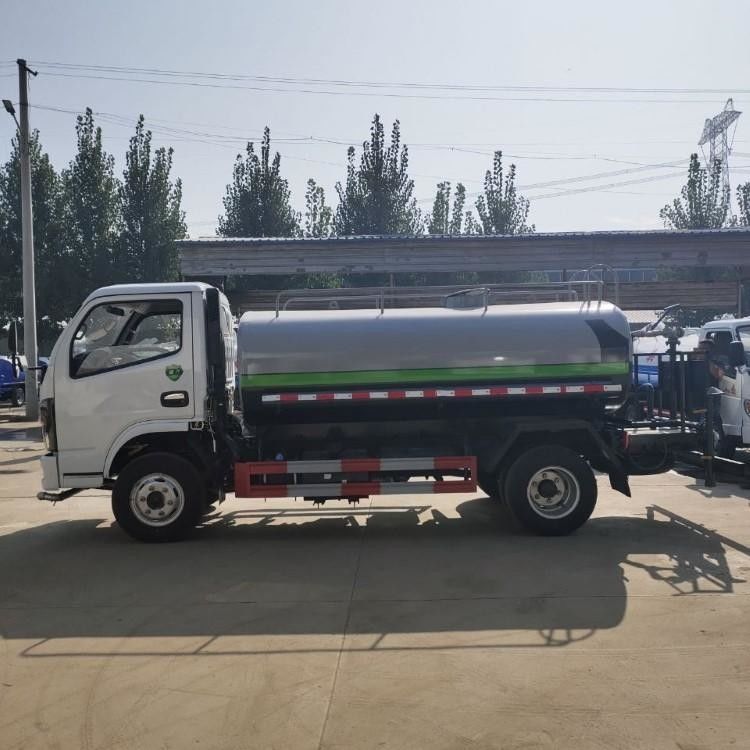

| Product Name | Water tank truck | ||
| Driving Type | Left hand drive ( RHD is optional) | ||
| Weights | |||
| GVW(kg) | 6000, 15000, 25000, 31000 | ||
| Rated payload weight(kg) | 3000L-30000L 3CBM-30CBM 3 tons to 30 tons |
||
| Curb weight(kg) | 9005 | ||
| Dimensions | |||
| Wheelbase(mm) | 4325+1350 3300, 3800, 4500, 5100mm is optional |
||
| Overall Dimension(mm) | 9800×2495×3130 | ||
| Box dimension | 3-30 CBM 3000L -30000L |
||
| Max speed(km/h) | 98 | ||
| Engine | |||
| Engine model | WP10.290 (120hp, 190hp, 266hp, 340hp, 380hp, 420hpHP) |
||
| Engine type | 4 stroke water-cooled,water-cooling. | ||
| No. of cylinders | straight-6 cylinders | ||
| Displacement(L)/Power(km) | 6.494/162 | ||
| Max. torque (kw) | 800N.m | ||
| Drive Line | |||
| Transmission | 7DS100,7 forwards,1 reverse gear,manual operation | ||
| Steering | With power steering | ||
| Brake system | Air brake | ||
| Cab | |||
| Air container | Have | ||
| Standard configuration | L cab,sound, and so on | ||
| Axle | |||
| Front axle | 5 tons | ||
| Rear axle | AK153 tons | ||
| Tire specification | |||
| Tire specification | 10.00R20 standard tire,10 tires+1 spare tire | ||
| Specification fuctionof water truck | |||
| Tanker shape | Ellipse water tanker | ||
| Tanker material | Q235,carbon steel | ||
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m | ||
| 2. with front spout, back spill and side spout function | |||
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
|||
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. |
|||
| Sprinkling area(m) | »14m | Vertical suction range (m) | »7m |
| Watering pressure | 250-450Mpa | Pump style | Self-priming centrifugal pump |
| Manhole | Manway access hole on top of tank;1 units DN500mm manhole | ||
| Front spray function | Front spray bar with fan sprayer on both sides, spray range: »28m | ||
| Manwalk way | With skid resistance manwalk way on top of tank | ||
| Horse reels | Two 75 ft hose reels at each side of the truck | ||
| Water pump | Water pump model: CLW80QZF-60/90N | ||
| Water pump flow rate(L/m): 60m3/h | |||
| Head of delivery(m): 90m | |||
| Self-priming function(min/4m):1.5 | |||
| Efficiency(%):95% | |||
