HOWO A7 380HP Used Dump Truck 6x4 Drive Mode EURO II Emission Standard

1 UNIT
MOQ
Negotiable
Price
HOWO A7 380HP Used Dump Truck 6x4 Drive Mode EURO II Emission Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: Second Hand
Year: 2014
Overall Dimensions(mm): 8265*2496*3490mm
Cargo Body Size (L*W*H): 5800*2300*1500mm
Bottom Thickness(mm): 8mm
Side Thickness(mm): 6mm
F/R Overhang(mm): 1540/1650 Mm
Wheelbase(mm): 3825+1350 Mm
Emission: EURO IV
Horse Power: 380 HP
High Light:

used commercial trucks

,

used heavy duty dump trucks

Basic Infomation
Place of Origin: CHINA
Brand Name: SINOTRUK—HOWO
Certification: ISO/CCC
Model Number: ZZ3257N3847N1
Payment & Shipping Terms
Packaging Details: Nude packing
Delivery Time: 5- 8 working days after receipt of payment
Payment Terms: T/T
Supply Ability: 50 units per month
Product Description

EURO II Emission and 6x4 Drive mode Used 380HP dumper Truck in 2014 year​ could be used in kinds of circumstances.







Truck Model ZZ3257N3847N1
Truck Brand SINOTRUK—HOWO A7
Dimension(Lx W xH)(unloaded)(mm) 8265*2496*3490
Driving Type Left Hand Driving
Cargo body size (L*W*H, mm)

5800*2300*1500

bottom:8mm,side:6mm

Lifting Type Ventral side Lifting
Approaching angle/Departure angle(°) 20/26
Overhang(front/rear) (mm) 1540/1650
Wheel base (mm) 3825+1350
Curb weight(kg) 12270
Persons in cab(persons) 2
Gross vehicle weight(kg) 25000
Max speed(km/h)(km/h) 80

Engine Model

(Steyr technology, made in China)

D10.38-40, water-cooled,four strokes,6 cylinders in line with water cooling, directly injection
Fuel type Diesel
Horse Power, max(kw/rpm) 380HP
Emission EURO IV
Fuel tanker capacity (L) 300
Transmission Model HW19710 10 forwards and 2 reverse
Steering Model 8118 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type.
Clutch single disc, dry type, diaphragm spring ;φ430
Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake The engine exhaust brake (EVB)
Front axle HF9 Disc Steering with double T-cross section beam
Rear axle AC16 Casting axle housing, central double reduction with differential locks between axles and wheels
Color White, Red, Yellow. according to the customer
Tyre

12.00R20

NO.10+1 Pieces

Electrical system Battery 2X12V/180Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab A7-W standard cabin, two seats and one bed with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers







Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.

Packing : Nude packing.

Shipment: By RO-RO or Bulk vessel .

Price validity: Within 30 days.

Payment terms: T/T before shipment.



Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.



Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.

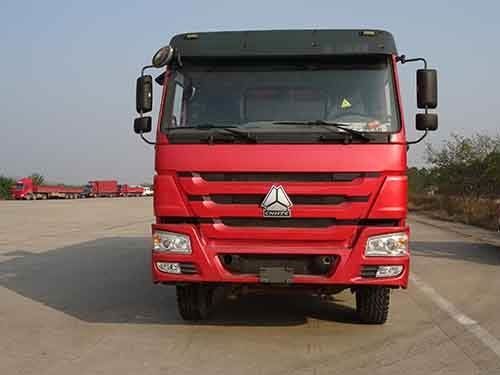

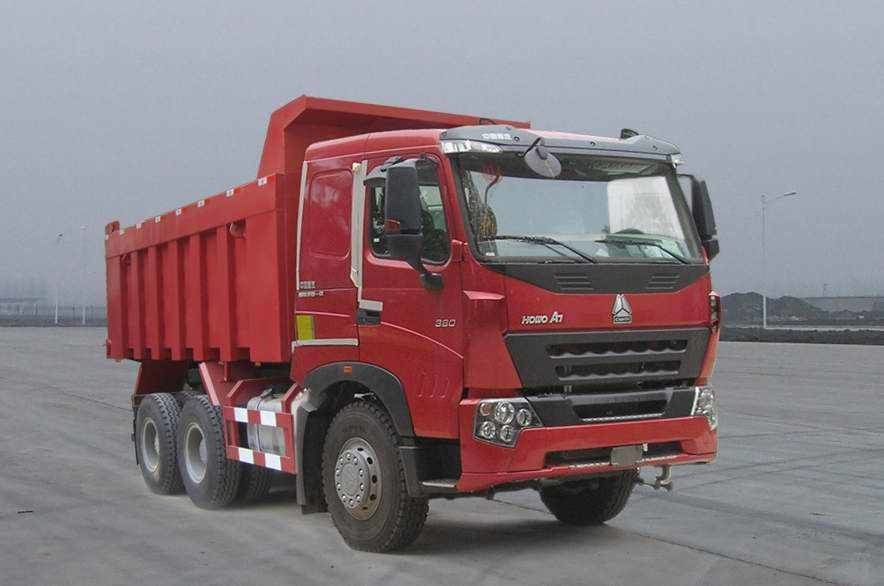

HOWO A7 380HP Used Dump Truck 6x4 Drive Mode EURO II Emission Standard 0

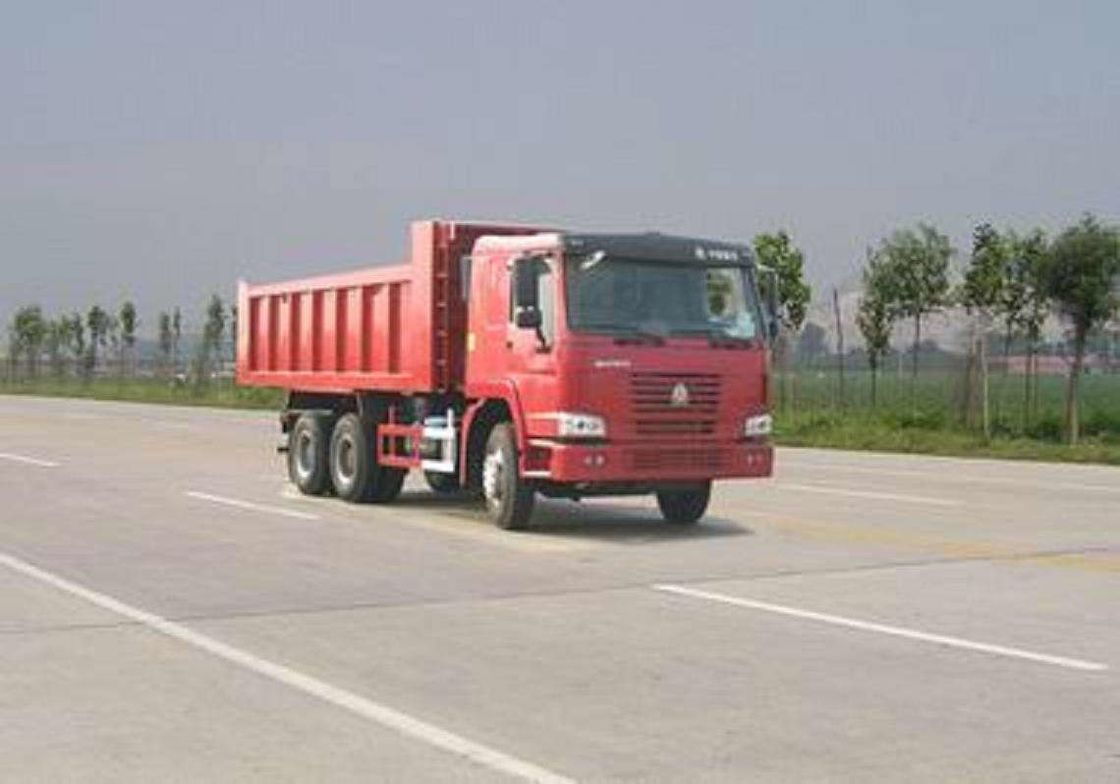

HOWO A7 380HP Used Dump Truck 6x4 Drive Mode EURO II Emission Standard 1

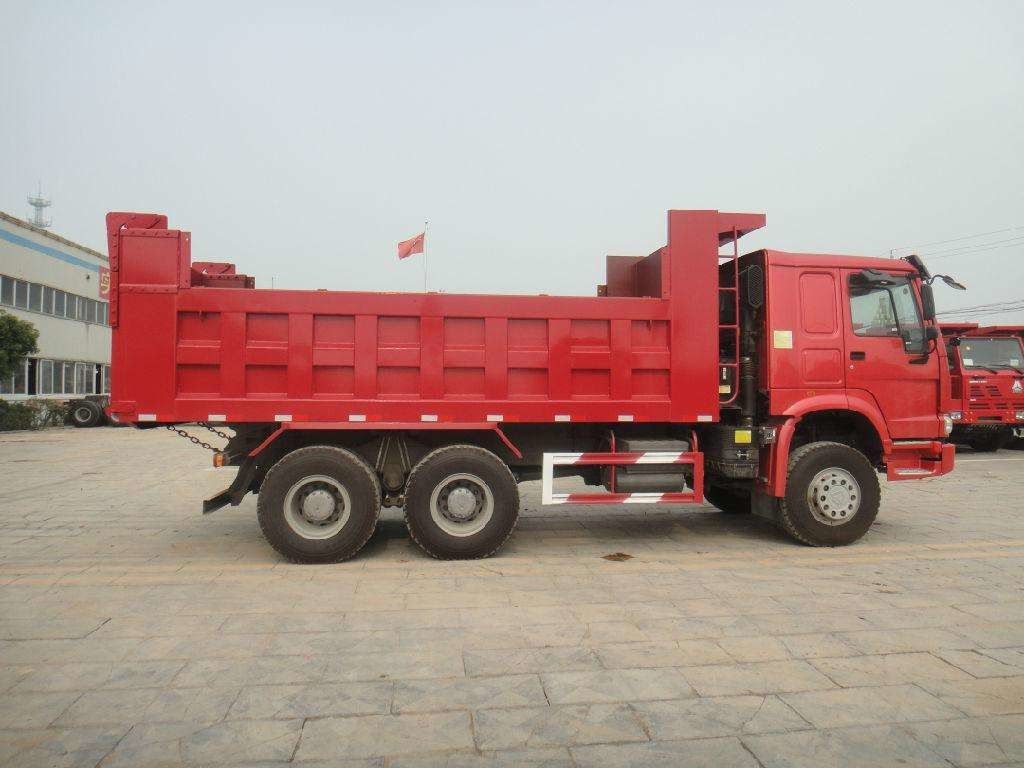

HOWO A7 380HP Used Dump Truck 6x4 Drive Mode EURO II Emission Standard 2
