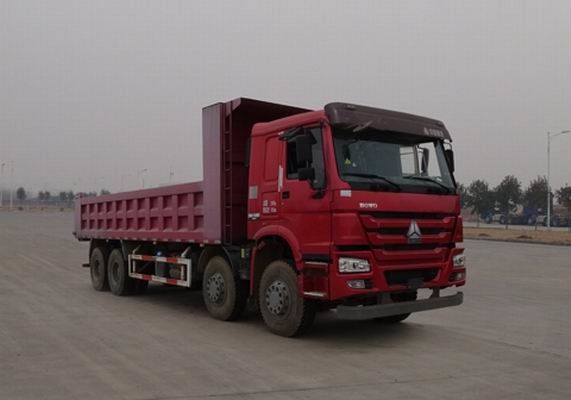

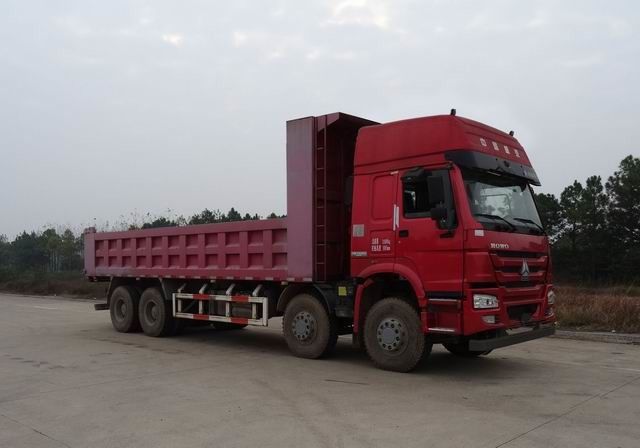

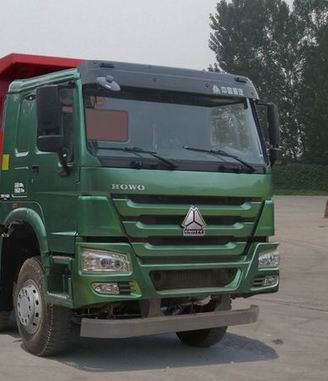

8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year

China 8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year supplier
8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year supplier 8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year supplier 8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year supplier

Large Image :  8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year

Product Details:

Place of Origin: CHINA
Brand Name: SINOTRUK—HOWO
Certification: ISO/CCC
Model Number: ZZ3317N3867

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude packing
Delivery Time: 5- 8 working days after receipt of payment
Payment Terms: T/T
Supply Ability: 50 units per month
Contact Now
Detailed Product Description
Condition: USED Year: 2014
Overall Dimensions(mm): 10545*2496*3450mm Cargo Body Size (L*W*H): 7500*2300*1500mm
Bottom Thickness(mm): 10mm Side Thickness(mm): 8mm
F/R Overhang(mm): 1500/2095mm Wheelbase(mm): 1800+3800+1350 Mm
Emission: EURO IV Horse Power: 371HP





371HP, 8×4 Drive mode and EURO II Emission Seccond hand dumper Truck in 2014 year could be used in kinds of circumstances.







Truck Model ZZ3317N3867
Truck Brand SINOTRUK—HOWO
Dimension(Lx W xH)(unloaded)(mm) 10545*2496*3450
Driving Type Right Hand Driving
Cargo body size (L*W*H, mm) 7500*2300*1500mm bottom:10mm,side:8mm
Lifting Cylinder China Brand
Lifting Type Front side Lifting
Approaching angle/Departure angle(°) 19/20
Overhang(front/rear) (mm) 1500/2095
Wheel base (mm) 1800+3800+1350
Curb weight(kg) 15200
Persons in cab(persons) 2
Gross vehicle weight(kg) 31000
Max speed(km/h)(km/h) 80

Engine Model

(Steyr technology, made in China)

WD615.47 water-cooled,four strokes,6 cylinders in line with water cooling, directly injection
Fuel type Diesel
Horse Power, max(kw/rpm) 371HP
Emission EURO IV
Fuel tanker capacity (L) 300
Transmission Model HW19710 10 forwards and 2 reverse
Steering Model 8198 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type.
Clutch

single disc, dry type, diaphragm spring ;φ430

φ430

Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake The engine exhaust brake (EVB)
Front axle HF9 Steering with double T-cross section beam
Rear axle HC16 Casting axle housing, central double reduction with differential locks between axles and wheels
Color White, Red, Yellow. according to the customer
Tyre

12.00R20

NO.12+1 Pieces

Electrical system Battery 2X12V/180Ah
Alternator 28V-1500kw
Starter 7.5Kw/24V
Cab HW76 cab (single sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers




Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.

Packing : Nude packing.

Shipment: By RO-RO or Bulk vessel .

Price validity: Within 30 days.

Payment terms: T/T before shipment.



Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.



Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.













8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year

8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year

8×4 Drive Mode Second Hand Dumper Truck SINOTRUK HOWO Brand 2014 Year
