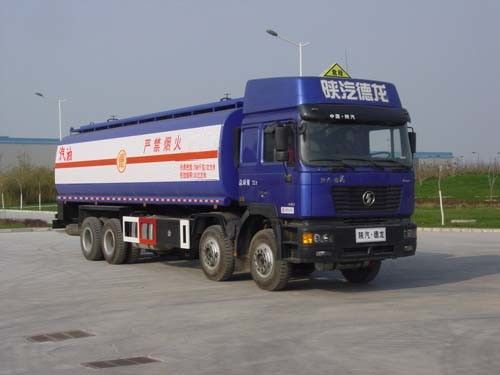

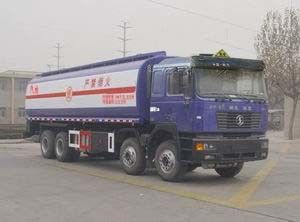

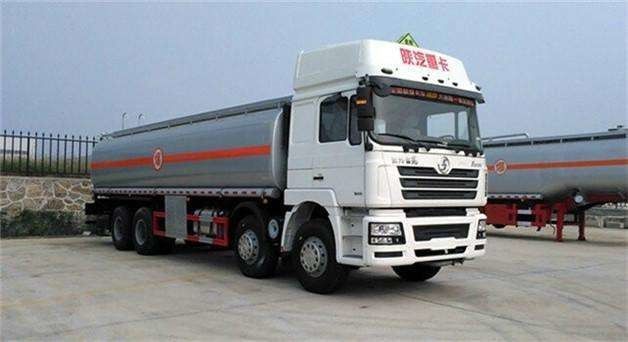

25m3 Volume Used Tanker Trucks , Used Fuel Oil Trucks EURO IV Emission Standard
1 UNIT
MOQ
Negotiable
Price
25m3 Volume Used Tanker Trucks , Used Fuel Oil Trucks EURO IV Emission Standard
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: SHACMAN
Certification: ISO/CCC
Model Number: SX5315GYYGM456
High Light:

used fuel oil trucks

,

used fuel trucks

Payment & Shipping Terms
Packaging Details: NUDE PACKING
Delivery Time: 5-8 WORK DAYS AFTER PAYMENT
Payment Terms: T/T
Supply Ability: 20 UNITS PER MONTH
Specifications
Condition: Used
Year: 2014
Engine: WP10.300N
Volume Of The Tank(L): 25000
Emission Standard: EURO IV
Max. Power(Kw/rpm): WP10.300N
Displacement(ml): 9726
Max. Torque(N.m/rpm): 1390/1500
Drive Mode: 8×4
Overall Dimension(mm): 12000*2490*3780
Product Description





25m3 volume of the tank(L) 8×4 Drive mode and EURO IV Emission standard Second hand oil tanker truck IN 2014Year could be used in kinds of circumstances.





SPECIFICATION
SHACMAN OIL TANKER TRUCK SX5315GYYGM456
volume of the tank(L) 25000
Drive mode 8×4
Engine Model WP10.300N
Type 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR
Max. power(Kw/rpm) 221/1900
Max. torque(N.m/rpm) 1390/1500
Cylinder bore ×Stroke(mm) 102×120
Emission standard EURO IV
Displacement(ml) 9726
Type of fuel Diesel
Compression ratio (17.5±0.5):1
Cab D530 one and a half rows
Capacity 3 persons
Gearbox Type FAST 9JS119
Max. torque(N.m) 1500
Clutch Φ395mm push-type diaphragm spring clutch
Frame H×W× T(mm) 250×80×(7+4)
Axles Front axle(Kg) 6500
Rear axle(Kg) 18000
No. of spring leaves 7/9+6
Tyre Size 11.00R20 18PR,11R22.5 16PR,12.00R20 16PR,12R22.5 18PR
Air conditioner A/C
Dimensions Overall dimension(mm) 12000*2490*3780
Wheel base(mm) 1800+4575+1400
Front/Rear suspension(mm) 1525/2825
Front/Rear tread(mm) 2036/2036/1850/1850
App./Dep. angel (°) 18°/14°
Performance Max. speed(Km/h) 77
Max. gradeability(%) 30
Min. turning diameter(m) 17
Mass Payload(Kg) 16,740
Curb weight(Kg) 14,130
G.V.W(Kg) 31,000



Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.

Packing : Nude packing.

Shipment: By RO-RO or Bulk vessel .

Price validity: Within 30 days.

Payment terms: T/T before shipment.



Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.



Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
