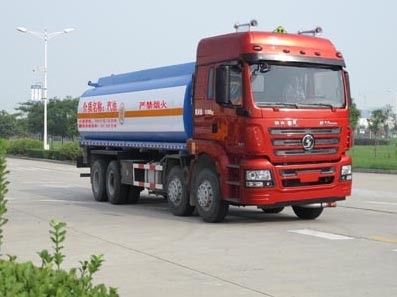

27.5m3 volume of the tank(L) 8×4 Drive mode and EURO IV Emission standard Second hand oil tanker truck IN 2014Year could be used in kinds of circumstances.
| SPECIFICATION | ||
| SHACMAN OIL TANKER TRUCK SX5316GYYGM456 | ||
| volume of the tank(L) | 27500 | |
| Drive mode | 8×4 | |
| Engine | Model | WP10.290E40 |
| Type | 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR | |
| Max. power(Kw/rpm) | 213/1900 | |
| Max. torque(N.m/rpm) | 1340/1200 | |
| Cylinder bore ×Stroke(mm) | 102×120 | |
| Emission standard | EURO IV | |
| Displacement(ml) | 9700 | |
| Type of fuel | Diesel | |
| Compression ratio | (17.5±0.5):1 | |
| Cab | D530 | one and a half rows |
| Capacity | 3 persons | |
| Gearbox | Type | FAST 9JS135 |
| Max. torque(N.m) | 1500 | |
| Clutch | Φ395mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 250×80×(7+4) | |
| Axles | Front axle(Kg) | 6500 |
| Rear axle(Kg) | 18000 | |
| No. of spring leaves | 7/9+6 | |
| Tyre | Size | 11.00R20 18PR,11R22.5 16PR,12.00R20 16PR,12R22.5 18PR |
| Air conditioner | A/C | |
| Dimensions | Overall dimension(mm) | 11935*2490*3360 |
| Wheel base(mm) | 1800+4500+1350 | |
| Front/Rear suspension(mm) | 1485/2675 | |
| Front/Rear tread(mm) | 2011/1860 | |
| App./Dep. angel (°) | 20°/11° | |
| Performance | Max. speed(Km/h) | 78 |
| Max. gradeability(%) | 30 | |
| Min. turning diameter(m) | 17 | |
| Mass | Payload(Kg) | 18,870 |
| Curb weight(Kg) | 12,000 | |
| G.V.W(Kg) | 31,000 | |
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
