6×4 Drive Mode Used Oil Trucks , Used Truck Fuel Tanks 19.7 M3 Volume
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: Used
Year: 2014
Engine: WP7.270E40
Volume Of The Tank(L): 19700
Emission Standard: EURO IV
Max. Power(Kw/rpm): 199/2300
Displacement(ml): 7146
Max. Torque(N.m/rpm): 1100/1200
Drive Mode: 6×4
Overall Dimension(mm): 9926*2490*3360
High Light:

used oil trucks

,

used fuel trucks

Basic Infomation
Place of Origin: CHINA
Brand Name: SHACMAN
Certification: ISO/CCC
Model Number: SX5256GYYMN434
Payment & Shipping Terms
Packaging Details: NUDE PACKING
Delivery Time: 5-8 WORK DAYS AFTER PAYMENT
Payment Terms: T/T
Supply Ability: 20 UNITS PER MONTH
Product Description

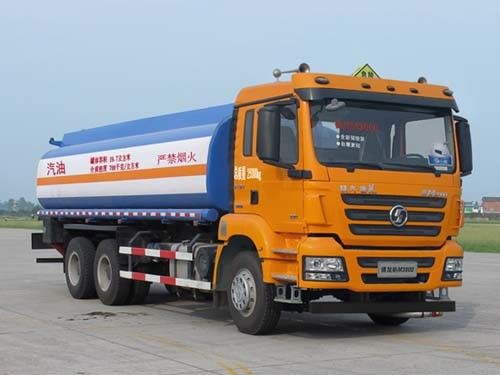

6×4 Drive mode and EURO IV Emission standard 19.7 m3 volume of the tank(L) Second hand oil tanker truck











SPECIFICATION
SHACMAN OIL TANKER TRUCK SX5256GYYMN434
volume of the tank(L) 19700
Drive mode 6×4
Engine Model WP7.270E40
Type 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR
Max. power(Kw/rpm) 199/2300
Max. torque(N.m/rpm) 1100/1200
Cylinder bore ×Stroke(mm) 102×120
Emission standard EURO IV
Displacement(ml) 7146
Type of fuel Diesel
Compression ratio (17.5±0.5):1
Cab D530 one and a half rows
Capacity 3 persons
Gearbox Type FAST 9JS135
Max. torque(N.m) 1600
Clutch Φ395mm push-type diaphragm spring clutch
Frame H×W× T(mm) 250×80×(7+4)
Axles Front axle(Kg) 7000
Rear axle(Kg) 18000
No. of spring leaves 7/9+6
Tyre Size 11.00R20 16PR,12.00R20 14PR,12R22.5 16PR
Air conditioner A/C
Dimensions Overall dimension(mm) 9926*2490*3360
Wheel base(mm) 4375+1400
Front/Rear suspension(mm) 1485/2666
Front/Rear tread(mm) 2011/1800
App./Dep. angel (°) 18°/11°
Performance Max. speed(Km/h) 78
Max. gradeability(%) 30
Min. turning diameter(m) 17
Mass Payload(Kg) 13,230
Curb weight(Kg) 11,640
G.V.W(Kg) 25,000







Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.

Packing : Nude packing.

Shipment: By RO-RO or Bulk vessel .

Price validity: Within 30 days.

Payment terms: T/T before shipment.



Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.



Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
