Place of Origin:
CHINA
Brand Name:
SINOTUK-HOWO
Certification:
ISO/CCC
Model Number:
ZZ5147XXYG421CE1

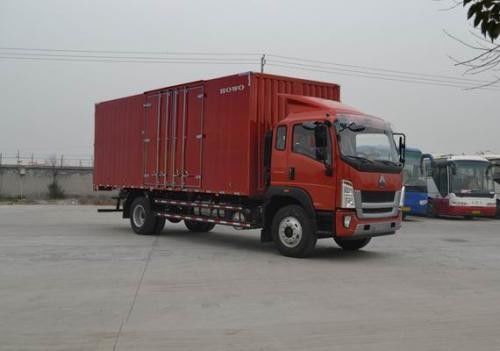

4×2 Drive mode and EURO IV Emission standard Used SINOTUK-HOWO Lorry Truck in 2013 year could be used in kinds of constructions.
| SPECIFICATION | ||
| SINOTUK-HOWO Cargo Truck ZZ5147XXYG421CE1 | ||
| Drive mode | 4×2 | |
| Engine | Model | Cummins ISF3.8s5154 |
| Type | 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR | |
| Max. power(Kw/rpm) | 115/2600 | |
| Max. torque(N.m/rpm) | 500/1400 | |
| Cylinder bore ×Stroke(mm) | 102×120 | |
| Emission standard | EURO IV | |
| Displacement(ml) | 3760 | |
| Type of fuel | Diesel | |
| Compression ratio | (17.5±0.5):1 | |
| Cab | D530 | one and a half rows |
| Capacity | 3 persons | |
| Gearbox | Type | WLY6TS55 |
| Max. torque(N.m) | 750 | |
| Clutch | Φ395mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 250×80×(7+4) | |
| Axles | Front axle(Kg) | 4860 |
| Rear axle(Kg) | 9200 | |
| No. of spring leaves | 7/9+6 | |
| Tyre | Size | 10.00R20,295/80R22.5 |
| cago box | form | Van body |
| Air conditioner | A/C | |
| Dimensions | Overall dimension(mm) | 7445x2470x3750 |
| cargo box dimension(mm) | 5200x2300x2300 | |
| Wheel base(mm) | 4200 | |
| Front/Rear suspension(mm) | 1160/2085 | |
| Front/Rear tread(mm) | 1805/1800 | |
| App./Dep. angel (°) | 19°/17° | |
| Performance | Max. speed(Km/h) | 95 |
| Max. gradeability(%) | 30 | |
| Min. turning diameter(m) | 17 | |
| Mass | Payload(Kg) | 9,765 |
| Curb weight(Kg) | 4,100 | |
| G.V.W(Kg) | 14,060 | |
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
Send your inquiry directly to us
