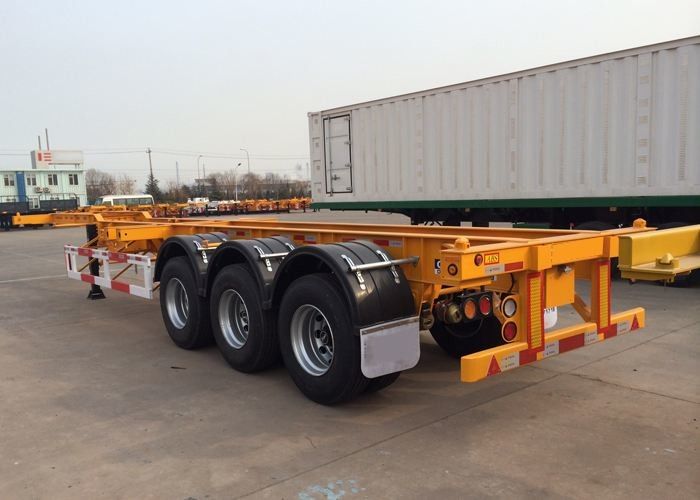

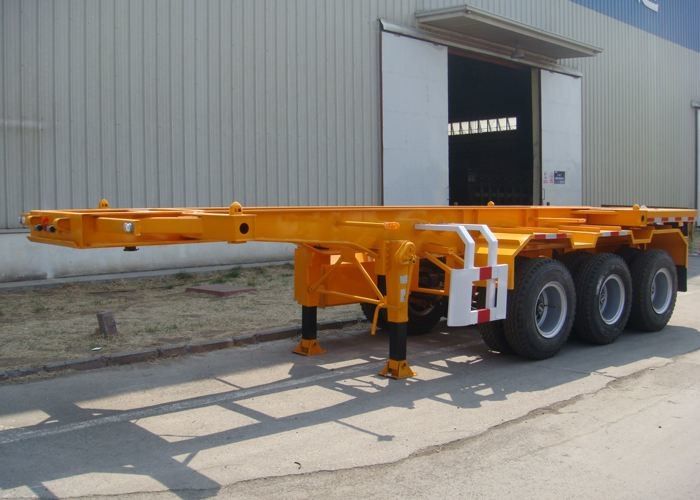

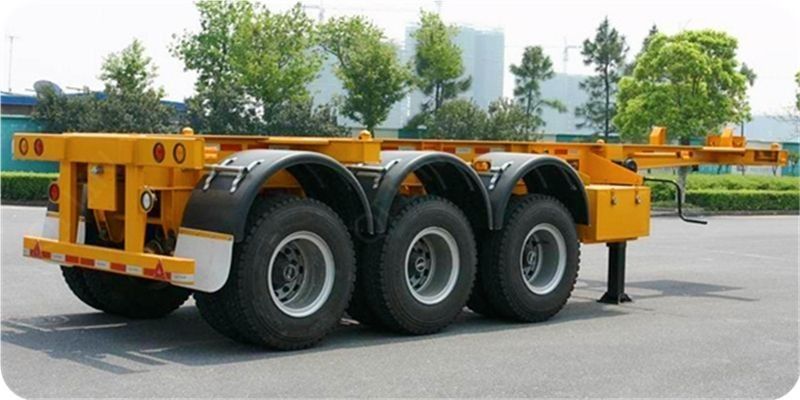

3* 13 tons capacity, YORK brand Axle and 12400*2490*1400 mm Outside dimension Second hand Skeleton semi trailer could be used in kinds of constructions.
| Type: | 40ft Skeleton semi trailer | |
| Dimensions: | Outside dimension |
12400*2490*1400 mm (The final dimensions depend on the final design drawings) |
|
Frame:
|
Design/welding technology |
Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes. |
|
Main beam |
Opting for high strength Q345B steel, 500mm deep welded I-section main beams Top Flange thickness 14mm Bottom Flange thickness 16mm Middle Flange thickness 8mm; |
|
|
OEM parts:
|
Axle | 3 *13 tons capacity, YORK brand |
| King Pin | 2.00’’(50#) bolting king pin | |
| Suspension | tri-axle suspension with equalizers, American design | |
| Steel Spring | Six sets of 10pcs leaf spring | |
| Twist Locks | 8 units ISO twist locks | |
| Landing legs | 28 Tons manual operation landing legs with sand shoe | |
| Tire specs | 11R22.5, Aeolus brand | |
| Rim | 8.25-22.5 | |
| Number of wheel | 12 pieces | |
|
Brake system |
Four double and two single brake chamber; Two units of reliable local brand standard coppery air-connector. |
|
| Electrical: | One unit of 24V 7-pin ISO socket; LED light | |
|
Miscellaneous: |
Painting |
Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| Spare Tire Carriers | Standard | |
| Tools box | Standard | |
|
Note: All the details not mentioned should comply with Chinese regulations. |
||
Trade Terms:
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
