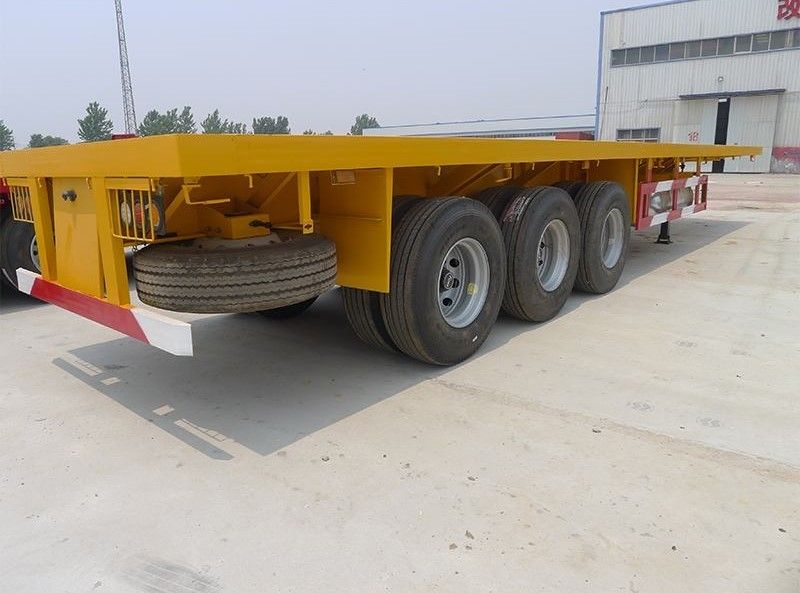

Second hand carbon steel flat bed Semi trailer with 12500x2500x1600mm Size and 50T Loading capacity could be used in kinds of trackor heads.
| Name | carbon steel flat bed Semi trailer | ||||
| Loading capacity | 50T | ||||
| Size | 12500x2500x1600mm | ||||
|
Chassis (I beam)
|
Top flange plate | Material and thickness | Q345B 14mm | ||
| Bottom flange plate | Material and thickness | Q345B 16mm | |||
|
Middle flange plate |
Material | Q345B | |||
| Thickness | 8mm | ||||
| Height | 500mm | ||||
|
Side beam height |
Type | U steel | |||
| Bending parts | |||||
| Height | 16# U steel | ||||
|
Floor |
Material | Carbon steel Q235 | |||
| Thickness | 3mm | ||||
| Floor type | Checkered plate | ||||
|
Running mechanism
Running mechanism
|
Container twist lock | 12pcs for 1x40ft and 2x20ft container | |||
|
Axle |
|||||
| Type | 13t | ||||
| Number | 3pcs | ||||
| Rim | Type | 9.0-22.5 | |||
| Number | 12 pcs | ||||
|
Tire |
Brand | Taitong brand | |||
| Type | 12R22.5 | ||||
| Number | 12pcs | ||||
| Suspension | Mechanical suspension | ||||
|
Spring leaf |
Leaf width | 90mm | |||
| Leaf thickness | 13mm | ||||
| Layer/set | 10 Layer | ||||
| King pin | Type | Bolts type | |||
| Diameter | 2 inch | ||||
|
Brake system |
Air tank | 40L air tanks | |||
| Brake chamber | 4double spring brake chamber | ||||
| ABS | Without | ||||
|
Landing gear |
Brand | Zhongli brand | |||
| Type | 28T two speed | ||||
|
Accessories
|
Spare tire carrier | 2sets | |||
| Light | LED light | ||||
| Voltage | 24v | ||||
| Receptacle | 7 ways(7wire harness)and quick change type | ||||
| Tool box | One piece,1000x500x500mm | ||||
| Painting | Polyurethane paint&anti-rust primer&sand blasting | ||||
| Tools for trailer | Head wrench ;spare wheel crank ; | ||||
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
