Place of Origin:
CHINA
Brand Name:
COOPER
Certification:
ISO/CCC
Model Number:
CLY9401GRYC

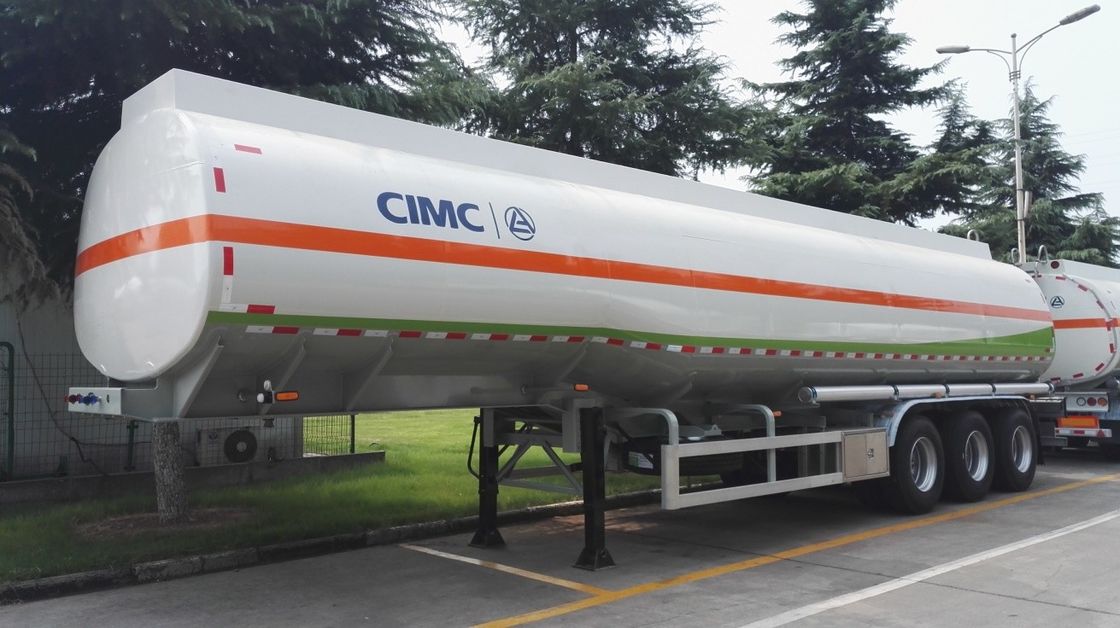

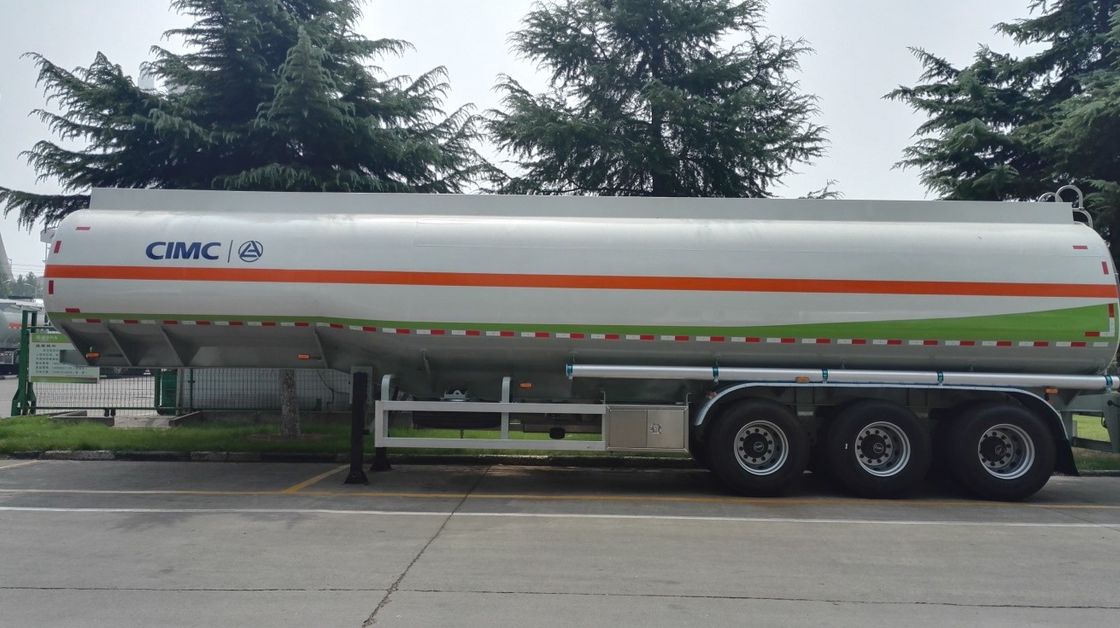

40m3 Tanker capacity and 3pcs Axle Second hand Oil Transportation Semi Trailers could bu used in kinds of construction.
| SPECIFICATION | ||||
| Item | Quantity | The main parameters | ||
| The shape parameters | The vehicle model | / | CLY9401GRYC | |
| Shape | / | Round shape | ||
| Dimensions | / | 12000 X 2500 X 3900mm | ||
The frame configuration |
Axle | 3 PCE | HJ 13T axle | |
| Suspension | / | Steel suspension | ||
| Leg | 1 SET | JOST E100 | ||
| Kingpins | 1 SET | JOST 90 #, assembled | ||
| Tyre | 12 PCE | Linglong 12R22.5 | ||
| Rim | 12 PCE | Xingmin 9.0-22.5 | ||
| ABS | 1 SET | WABCO 4S / 2M | ||
Tank configuration |
The total volume of tank | / | 40000L(including 5% ullage space) | |
| The number of compartment | / | 2 compartments | ||
| Material of tank | Head | / | 5083 /6.5 mm | |
| Shell | / | 5083 /6 mm | ||
| Anti-wave plate | / | 5083 /6 mm | ||
| Manhole | 2 PCE | 20inch | ||
| Discharge system | Bottom valve | 2 PCE | 4 inches aluminum alloy | |
| Discharge valve | 2 PCE | 3 inches API valve | ||
| Vapor Recovery System | / | No | ||
| Discharge pump | / | No | ||
| Delivery hose | 2 PCE | 3 inch rubber hose, with the pipe box | ||
| Fire extinguisher | 2 PCE | 8kg dry powder fire extinguisher | ||
| Ladder | 1 PCE | Steel | ||
| Tank top walkway | 1 SET | on tank top anti-sliding walkway | ||
| Control box | 1 PCE | Aluminium material | ||
| Toolbox | 1 PCE | Aluminium material | ||
| Spare tire rack | 1 PCE | / | ||
| Lighting | 1 SET | LED lights | ||
| Reflective logo | / | 3M reflective logo | ||
| Safety Accessories | / | An anti-static drag strip, An antistatic reel, A Flammable liquids signs | ||
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
