HOWO Brand Used Concrete Mixer Truck 340hp Rated Power For Construction
HOWO Brand Used Concrete Mixer Truck 340hp Rated Power For Construction
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: Yate
Certification: ISO/CCC
Model Number: TZ5257GJBZE3EA
High Light:

used concrete mixer


second hand concrete mixer trucks

Payment & Shipping Terms
Packaging Details: NUDE PACKING
Payment Terms: T/T
Supply Ability: 20 UNITS PRE MONTH
Condition: Used
Year: 2012
Emission: Euro III
Drive Form: 6X4
Rated Power: 340hp,rated Power Speed 1900rpm
Chassis Model: ZZ1257N4347E1
Overall Dimensions: 10370x2496x3998mm
Displacement: 9726ml
Steering Wheel: Left Hand Drive
Mixing Capacity(m³): 10
Product Description

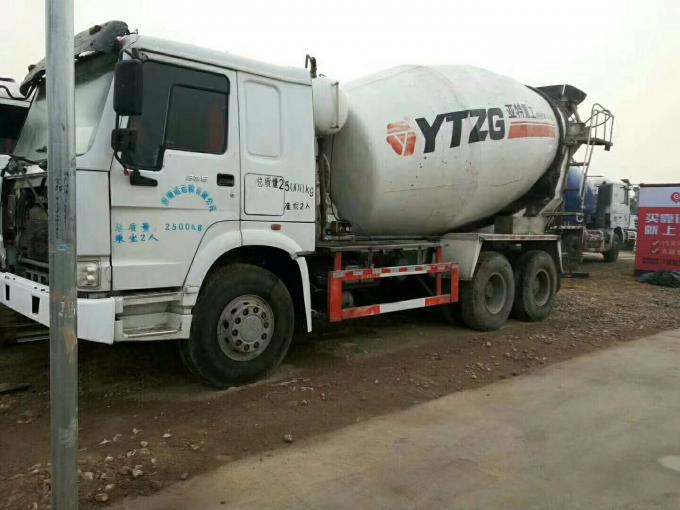

Euro III Emission, 6X4 Drive form and 340hp Rated power Second hand YATE-HOWO Concrete Mixer Truck could be used in kinds of construction.

Vehicle parameters
Vehicle Model TZ5257GJBZE3EA Vehicle Brand Yate
Overall dimensions 10370x2496x3998mm Curb weight 16100kg
Loading capacity 10m3


Chassis parameters
Chassis model ZZ1257N4347E1 Chassis brand HOWO
Overall dimensions 10370x2496x3998mm Wheel base 4025+1350mm
Front/rear wheel track 2022/1830/1830mm Front/rear suspension 1500/3195mm
Approach/departure angle 16/11° Maximum speed 80km/h
Chassis Manufacturer SINOTRUK

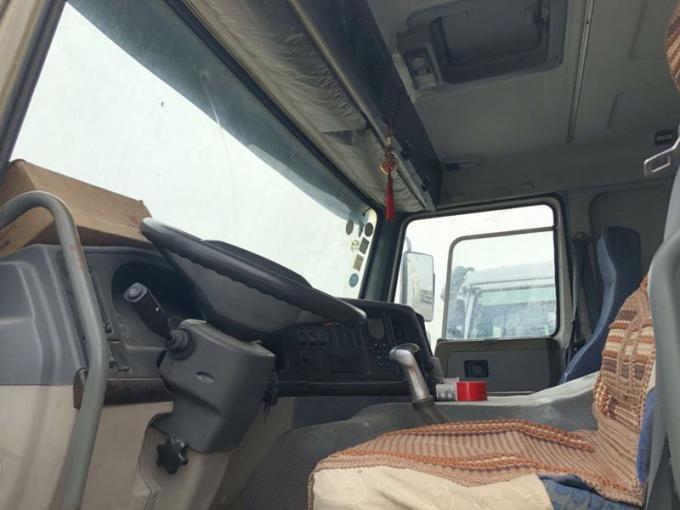

Cab Configuration F3000 flat roof heating cab, main seat hydraulic seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, single-bed, 14 rear-view mirrors, manual window-shaking machine, manual overturn,F3000 cooling system, domestic left steering machine,180Ah battery, SHACMAN logo, all Russian logo, remote throttle control
Color White,other color is optional
Engine Model D10.34-50
Emission Euro III
Type 4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 340hp,rated power speed 1900rpm
Displacement 9726ml
Max.torque 1490N.m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd.
Tire Size 12.00R20 steel wire tire
Number 10 nos
Clutch Eaton φ430 diaphragm clutch
Fuel tank 380L aluminium alloy
Front axle MAN, 7.5 tons disc type
Rear axle MAN,16 tons casting bridge,main reduction ratio 5.262
Drive form 6X4
Rated voltage 24V,DC
Transmissions FAST 12JSD160TA,12 speed forward 2 reverse.
Steering device Power assisted steering,steering machine
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard


Concrete mixer truck structure parameters
Mixing capacity(m³) 10 Color and Logo Optional
Feeding speed (m³/min) ≥8 Discharge speed(m³/min) ≥5
Discharge residual rate ≤0.5% Slump scope(mm) 50-210
Water tank capacity(L) 400L Water pressure(Mpa) 0.35-0.38
Tank material 5mm alloy steel Tank front head 8mm alloy steel
Reducer ZF3301 Hydraulic motor Germany REXROTH
Hydraulic pump Germany REXROTH Radiator KAIPENG
Standard configuration chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
8m3 Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.
Germany ZF/Italy PMP reducer, Italy PMP/Italy MESSORI/America EATON/America SAUER hydraulic pump, hydraulic motor.


Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
