ZOOMLION HOWO Used Mixer Trucks 6X4 Drive Form

1 UNIT
MOQ
Negotiable
Price
ZOOMLION HOWO Used Mixer Trucks 6X4 Drive Form
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: Used
Year: 2013
Loading Capacity: 12m3
Vehicle Model: ZLJ5258GJBH
Overall Dimensions: 11505x2496x3950mm
Chassis Model: ZZ1257N3647D1
Emission: Euro III
Displacement: 9726ml
Rated Power: 340hp,rated Power Speed 1900rpm
Drive Form: 6X4
High Light:

second hand cement mixer

,

used concrete mixer

Basic Infomation
Place of Origin: CHINA
Brand Name: ZOOMLION
Certification: ISO/CCC
Model Number: ZLJ5258GJBH
Payment & Shipping Terms
Packaging Details: NUDE PACKING
Delivery Time: 5-8 WORK DAY AFTER PAYMENT
Payment Terms: T/T
Supply Ability: 20 UNITS PER MONTH
Product Description





2013 Year Euro III Emission and 6X4 Drive form Used 340hp ZOOMLION-HOWO Concrete Mixer Truck could be used in kinds of construction





Vehicle parameters
Vehicle Model ZLJ5258GJBH Vehicle Brand ZOOMLION
Overall dimensions 11505x2496x3950mm Curb weight 15000kg
Loading capacity 12m3





Chassis parameters
Chassis model ZZ1257N3647D1 Chassis brand HOWO
Overall dimensions 11505x2496x3950mm Wheel base 3625+1350mm
Front/rear wheel track 2022/1830/1830mm Front/rear suspension 1500/2375mm
Approach/departure angle 16/17° Maximum speed 77km/h
Chassis Manufacturer SINOTRUK
Cab Configuration F3000 flat roof heating cab, main seat hydraulic seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, single-bed, 14 rear-view mirrors, manual window-shaking machine, manual overturn,F3000 cooling system, domestic left steering machine,180Ah battery, SHACMAN logo, all Russian logo, remote throttle control
Color White,other color is optional
Engine Model D10.34-40
Emission Euro iii
Type 4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine
Rated power 340hp,rated power speed 1900rpm
Displacement 9726ml
Max.torque 1490N.m
Bore x stroke 126x130mm
Manufacturer Weichai Power Co., Ltd.
Tire Size 12.00R20 steel wire tire
Number 10 nos
Clutch Eaton φ430 diaphragm clutch
Fuel tank 380L aluminium alloy
Front axle MAN, 7.5 tons disc type
Rear axle MAN,16 tons casting bridge,main reduction ratio 5.262
Drive form 6X4
Rated voltage 24V,DC
Transmissions FAST 12JSD160TA,12 speed forward 2 reverse.
Steering device Power assisted steering,steering machine
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard





Concrete mixer truck structure parameters
Mixing capacity(m³) 12 Color and Logo Optional
Feeding speed (m³/min) ≥8 Discharge speed(m³/min) ≥5
Discharge residual rate ≤0.5% Slump scope(mm) 50-210
Water tank capacity(L) 450L Water pressure(Mpa) 0.35-0.38
Tank material 5mm alloy steel Tank front head 8mm alloy steel
Reducer ZF3301 Hydraulic motor Germany REXROTH
Hydraulic pump Germany REXROTH Radiator KAIPENG
Standard configuration chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
12m3 Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.

Germany ZF/Italy PMP reducer, Italy PMP/Italy MESSORI/America EATON/America SAUER hydraulic pump, hydraulic motor.







Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.


Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.

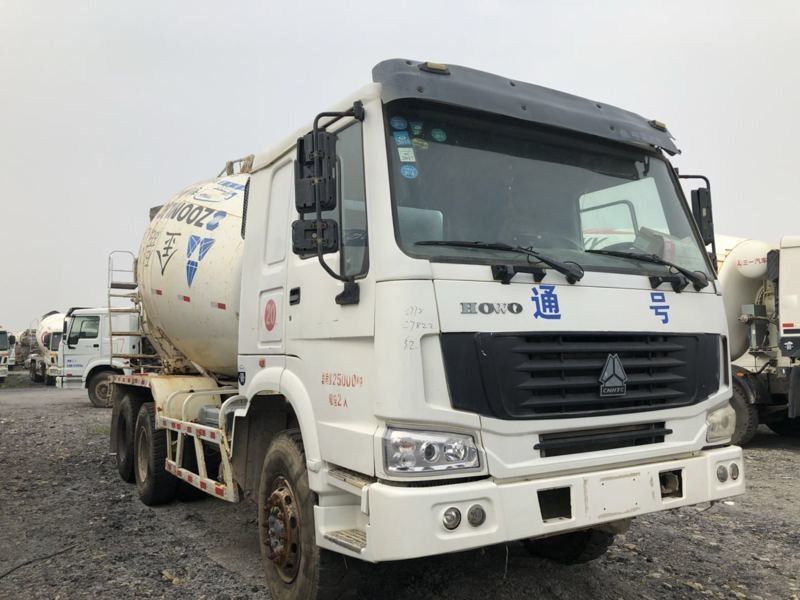

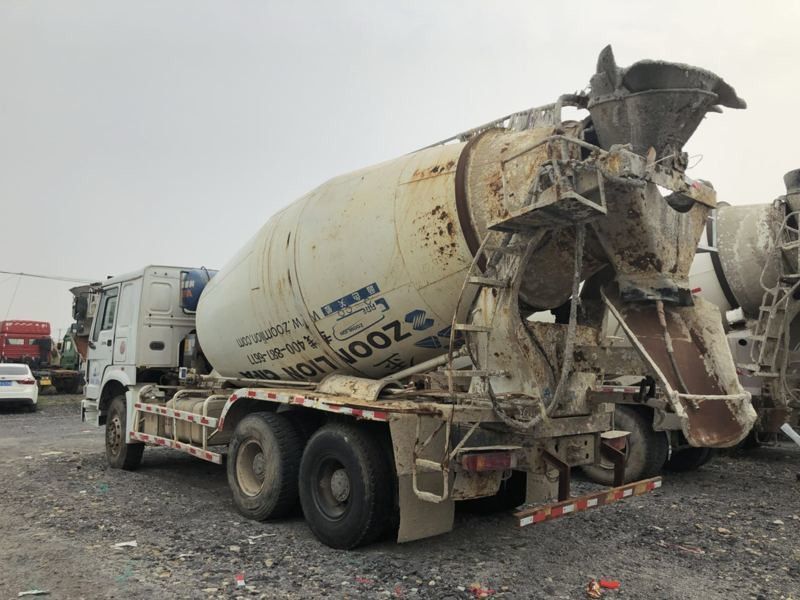

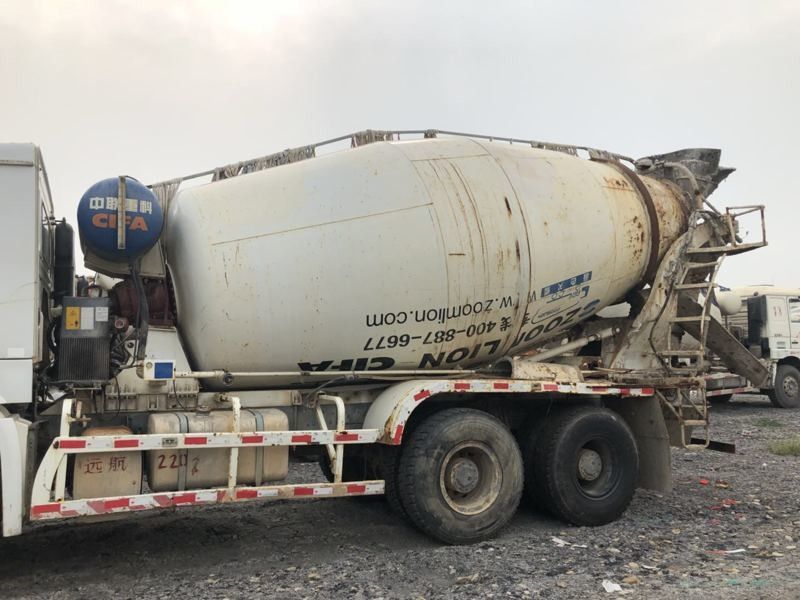

ZOOMLION HOWO Used Mixer Trucks 6X4 Drive Form 0ZOOMLION HOWO Used Mixer Trucks 6X4 Drive Form 1
