Place of Origin:
CHINA
Brand Name:
DONGFENG
Certification:
ISO/CCC
Model Number:
DFS4256GL1

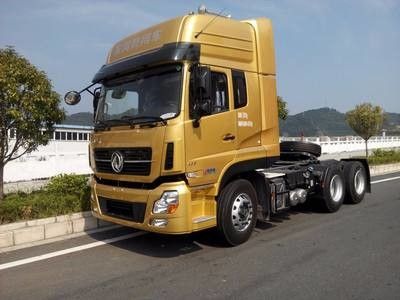

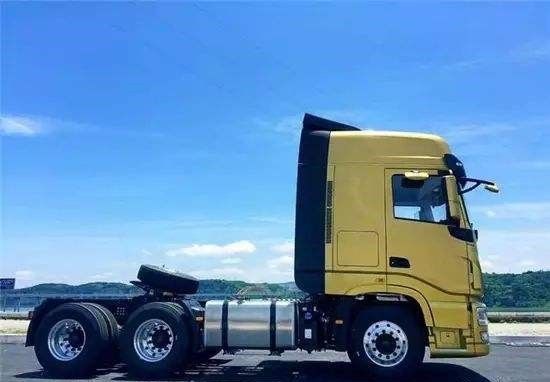

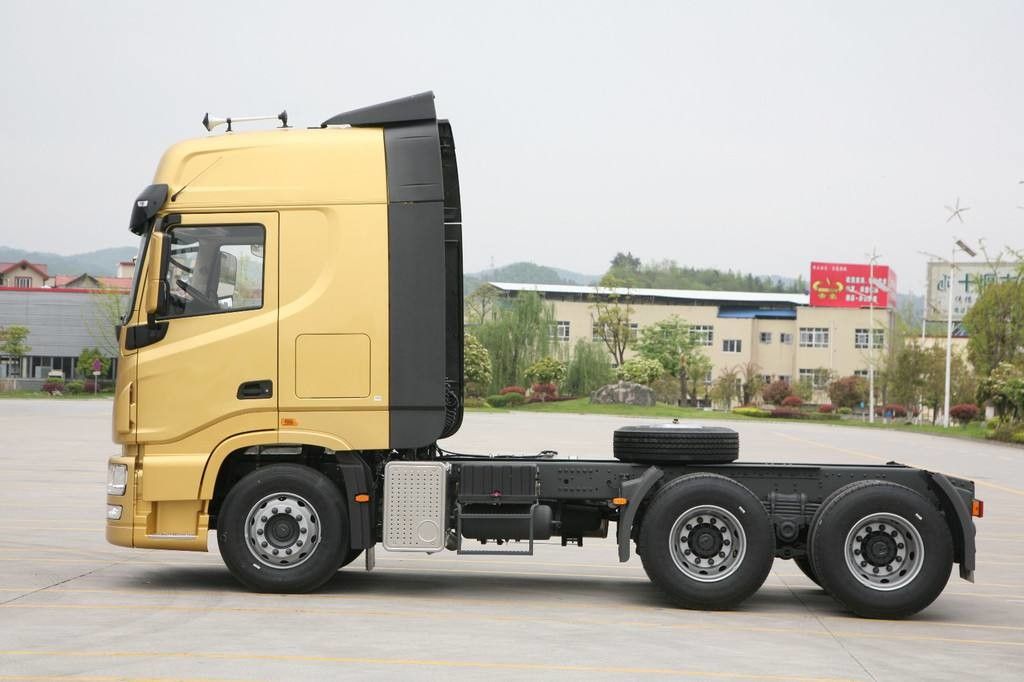

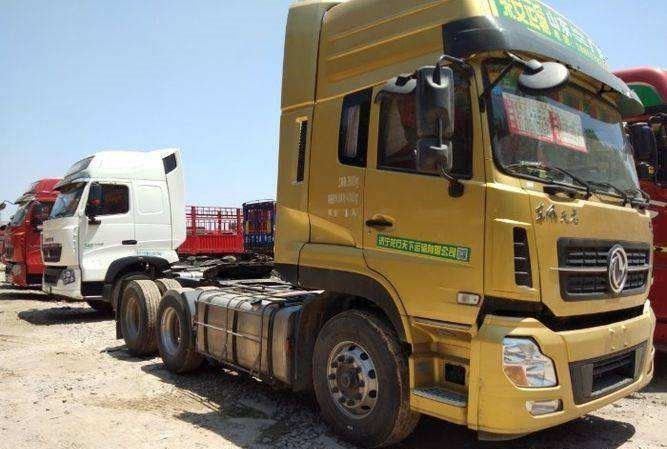

340hp 6x4 drive mode and Euro III Emission Standard DONGFENG Tractor Second hand Truck in 2015 year could be used in kinds of circumstances.
| Specification | ||
| Drive mode | 6×4 | |
| Engine | Model | Cummins L340 30 |
| Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, built-in EGR | |
| Max. power(Kw/rpm) | 250/2200 | |
| Max. torque(N.m/rpm) | 1350/1400 | |
| Cylinder bore ×Stroke(mm) | 114×145 | |
| Displacement(ml) | 8900 | |
| Type OF Fuel | Diesel | |
| Compression ratio | (16.6±0.5):1 | |
| No. of valves | 4 | |
| Cab | Capacity | 3 persons, one bed |
| Gearbox | Type | 12JS160TA |
| Max. torque / Rated speed (N.m/rpm) | 1600/2600 | |
| Gear ratio | 12 forward & 2reverse 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 /14.86 3.33 | |
| Clutch | Φ430mm | pull-type diaphragm spring clutch |
| Frame H×W× T(mm) | 300×90×(8+5) | |
| Frame width 940 (front ), Frame width 810 ( rear ) | ||
| No. of spring leaves | 3/10 | |
| Steering | Dongfeng Power | |
| Tyre | Size | 11.00R20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 7600 ×2500×3360 |
| Wheel base (mm) | 3400+1350 | |
| Front/Rear tread(mm) | 2027/1820 | |
| App./Dep. angel (°) | 18/32 | |
| Min. ground clearance(mm) | 300 | |
| Performance | Max. speed(Km/h) | 98 |
| Max. gradeability(%) | 35 | |
| Min. turning diameter(m) | 16 | |
| Fuel consumption(L/100Km) | 38 | |
| Alex | Front Alex Loading Weight(Kg) | 6500 |
| Front Alex Loading Weight(Kg) | 13000x2 | |
| Mass | Curb weight(Kg) | 9950 |
| G.V.W (Kg) | 25000 | |
| Trailer G.V.W(Kg) | 40000 | |
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you
