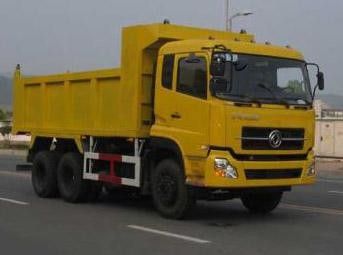

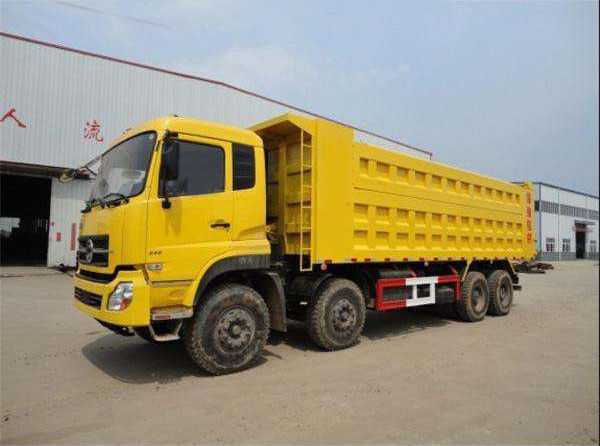

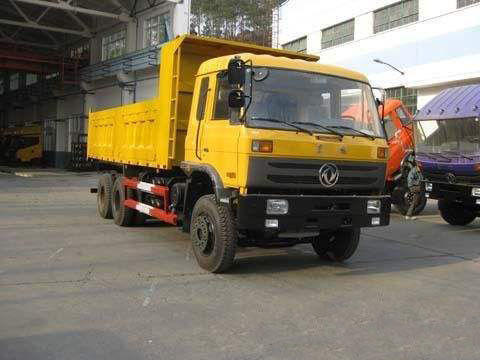

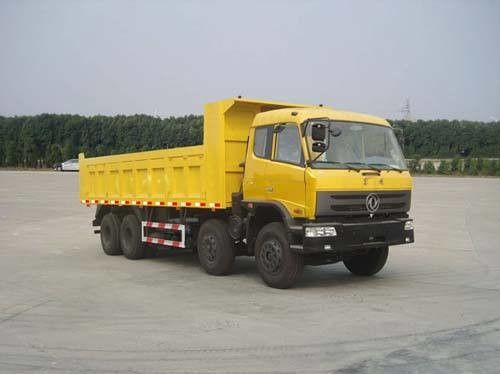

Euro III Dongfeng Logo yellow 2009 year second hand dumper truck/tipper truck diesel truck engine for build could be used in kinds of constructions.
|
Vehicle Parameters
|
|||
| Vehicle Brand | DONGFENG | ||
| Overall dimensions | 9450X2480X2900mm | Curb weight | 12005kg |
| Van dimensions | 5800X2300X1200mm | Loading capacity | 25000kg |
| Chassis parameters | |||||
| Chassis model | EQ5253GFJ2 | Chassis brand | DONGFENG | ||
| Overall dimensions | 9565x2470x2850mm | Wheel base | 4350+1300mm | ||
| Front/rear wheel track | 1940/1860/1860mm | Front/rear suspension | 1245/2670mm | ||
| Approach/departure angle | 28/15° | Maximum speed | 85km/h | ||
| Chassis Manufacturer | Dongfeng Motor Corporation | ||||
| Cab | Configuration | New model,a row and a half deluxe cab(with sleeping berth),allowable 3 passengers | |||
| Color | Yellow,other color is optional | ||||
| Engine | Model | B210 33 | |||
| Emission | Euro 3 | ||||
| Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||||
| Rated power | 210hp,rated power speed 2500rpm | ||||
| Displacement | 5900ml | ||||
| Max.torque | 700N.m | ||||
| Bore x stroke | 102x120mm | ||||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||||
| Tire | Size | 10.00-20 nylon tire | |||
| Number | 10+1 nos | ||||
| Frame | 280×80×(7+5)mm | ||||
| Fuel tank | 200L,steel | ||||
| Front axle | 5.0T | ||||
| Rear axle | 10.0T | ||||
| Drive form | 6X4 | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | Gearbox 8JS118, 8 speed forward 1 reverse. | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Right hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
| Dump truck structure parameters | ||||
| Van body dimensions | 5800X2300X1200mm | Side wall | 6mm | |
| Bottom plate | 8mm | Van body material | Common steel | |
| Lifting position | Front | Dumping direction | Rear | |
| Oil Cylinder | Domestic Ф180 | Color and Logo | Optional | |
| Standard configuration | chassis,sub frame,van body side 6mm bottom 8mm,domestic middle lifting hydraulic cylinder Ф180,common steel,two longitudinal beams,rectangular van body,single door | |||
| Selective configuration | ||||
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By container or RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
