25 Tons Used Commercial Trucks , 6X4 371HP / 375HP Used Heavy Duty Dump Trucks
1 UNIT
MOQ
Negotiable
Price
25 Tons Used Commercial Trucks , 6X4 371HP / 375HP Used Heavy Duty Dump Trucks
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: SINOTRUCK HOWO
Certification: ISO, CCC, CE
Model Number: ZZ3257N3647
High Light:

used commercial trucks

,

used heavy duty dump trucks

Payment & Shipping Terms
Packaging Details: Nude packing
Delivery Time: 5- 8 working days after receipt of payment
Payment Terms: T/T
Supply Ability: 50 units per month
Specifications
Product Name: Used Dump Truck
Condition: USED
Year: 2015.12
Overall Dimension (mm): 8245x2550x3450mm
Inner Dimension (mm): 5400x2300x1500 Mm
Wheelbase(mm): 3625+1350mm
Engine: WD615.95E
Horsepower: 375hp
Payload(kg): 25000kg
Curb Weight (kg): 12600KG
Emission Standard: EURO II
Color: Red
Product Description

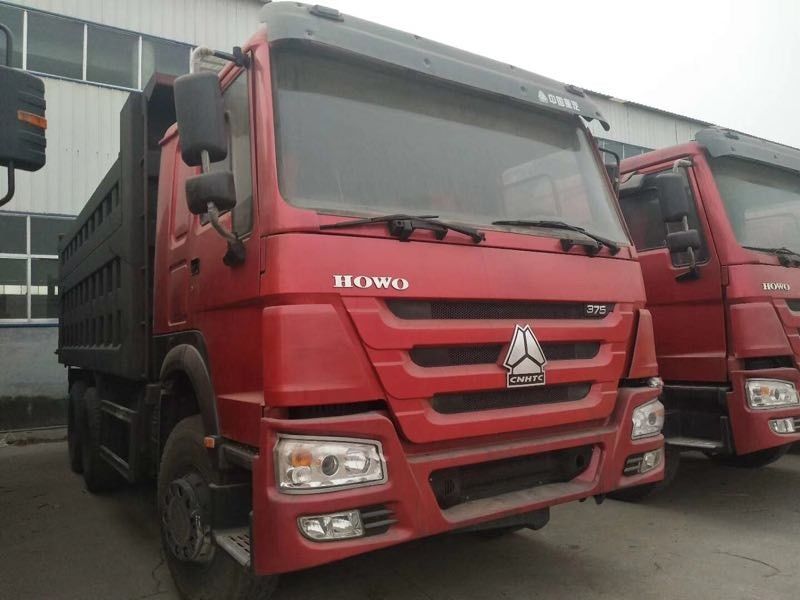

USED 25tons 6X4 371HP/ 375HP SINOTRUCK HOWO DUMP TRUCK/TIPPER from China made in year 2015



 SPECIFICATION



Truck Model ZZ3257N3647
Truck Brand SINOTRUK –HOWO
Driving Type LHD
Dimension(Lx W xH)(unloaded)(mm) 8245x2550x3450
Cargo body size (L*W*H) 5400x2300x1500 18m3
Cargo body thickness(mm) bottom:8mm, side:6mm
Lift type of Carriage Ventral lifting
Approaching angle/Departure angle(°) 19/23
Overhang(front/rear) (mm) 1500/1870
Wheel base (mm) 3625+1350
Max speed(km/h) 75
Curb weight(kg) 12600
Loading Weight(kg) 25000
Fuel tanker capacity(L) 300L with locking fuel cap
Clutch Single-plate dry clutch Φ430mm

Engine Model

(Steyr technology, made in China)

Model WD615.95E,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling
Horse Power 375HP/276kw.2000r/min, 9.726L
Emission EURO II
Fuel Type Diesel
Transmission Model HW19710,10 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model

hydraulic steering with power assistance

Ratio:22.2-26.2

Front axle

HF9 , Steering with double T-cross section beam

Loading capacity:9000KG

Rear axle

HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels

Loading capacity: 16000kg

Color Optional
Tire

12.00R20 Steel tires

10+1 spare

Electrical system Operating voltage 24V,negative grounded
Starter 24V,7.35KW
Alternator 28V,1500W
Batteries 2*12V.165Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Cab HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Instrument Panel Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging



Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
