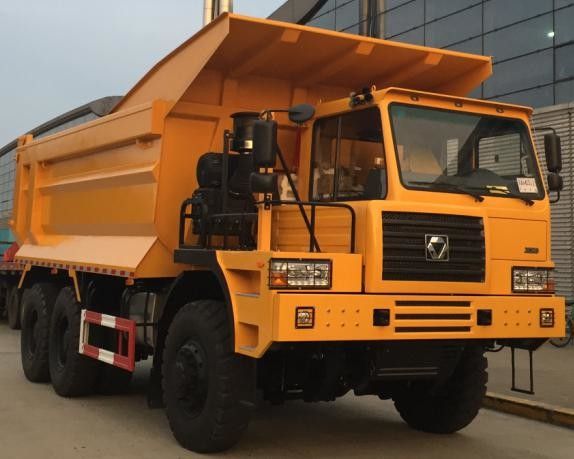

6x6 drive mode and Euro 3 Weichai engine Dongfeng used mining tipper truck in 2013 year could be used in kinds of constructions.
| Type | Item | unit | data | |
| Dimensions | Overall length | mm | 8800 | |
| Overall width | mm | 3275 | ||
| Overall height | mm | 4040 | ||
| Wheel base of Front and middle axle | mm | 3800 | ||
| Wheel base of middle and rear axle | mm | 1600 | ||
| Tread | Front wheel | mm | 2615 | |
| Rear wheel | mm | 2310 | ||
| Weight | Total vehicle weight | kg | 76000 | |
| Rated payload | kg | 49460 | ||
| Empty vehicle weight | kg | 26540 | ||
| Weight distribution | Empty | Front axle | kg | 9972 (38%) |
| Middle axle | kg | 8284 (31%) | ||
| Rear axle | kg | 8284 (31%) | ||
| Fullly loaded | Front axle | kg | 15420 (20 %) | |
| Middle axle | kg | 30290 (40%) | ||
| Rear axle | kg | 30290 (40%) | ||
| Engine | Model | / | WD12G420E211 | |
| Rated power | kW /rpm | 309/2200 | ||
| Max. torque | Nm/rpm | 1750/1300～1500 | ||
| Type of drive | / | 6×6 | ||
| Tyre | / | 14.00-25 | ||
| Traveling data | Max. vehicle speed | km/h | 55 | |
| Min. turning clearance circle radius | mm | 11 | ||
| Max. gradeability | % | 40 | ||
| Max. turning angle | ° | 35/28 | ||
| Min.ground clearance | mm | 345 | ||
| Working data | Loading height | mm | 2825 | |
| Raise time | s | 40 | ||
| Raise angle | ° | 48 | ||
| Capacities | Fuel tank | L | 400 | |
| Hydraulic oil tank | L | 100 | ||
| Engine oil | L | 28 | ||
| coolant | L | 55 | ||
| Main reducer-front axle | L | 18 | ||
| Wheel end-front axle(single) | L | 3 | ||
| Main reducer-middle axle | L | 20 | ||
| Wheel end-middle axle(single) | L | 6 | ||
| Middle axle and rear axle differential | L | 2 | ||
| Main reducer-rear axle | L | 18 | ||
| Wheel end-rear axle(single) | L | 6 | ||
| Balance shaft(single) | L | 0.7 | ||
| Dump body capacity | Struck | m3 | 20.88 | |
| 2:1 heaped | m3 | 26.7 | ||
| Dump body size | 5800*3000*1200 | mm | ||
| No. | Parts Name | Belong to | Manufacturer |
| 1 | Engine | Power train | Weichai |
| 2 | Transmission | Shanxi fast | |
| 3 | Transfer case | Zhuchi | |
| 4 | Radiator | Zhejiang Yinlun | |
| 5 | Oil water separator | Weichai | |
| 6 | Air cleaner | Hebei Yili | |
| 7 | Air reservior | Taizhou Tianyi | |
| 8 | Drive shaft | Hangzhou wanxiang | |
| 9 | Parking brake | Ruili | |
| 10 | Service brake | Ruili | |
| 11 | Front axle | Pengxiang | |
| 12 | Middle axle | Pengxiang | |
| 13 | Rear axle | Pengxiang | |
| 14 | Tyre | Kunlun | |
| 15 | Rim | Runde | |
| 16 | Main pump | Hydraulic system | Haiwo |
| 17 | Main valve | Haiwo | |
| 18 | High pressure filter | Haiwo | |
| 19 | hoisting cylinder | Haiwo | |
| 20 | gear selector | Electrical system | Shanxi Fast |
| 21 | Hoist joystick | Haiwo | |
| 22 | Cabin | cabin | Yangzhou Fengyuan |
| 23 | Air conditioner | Shanghai Yibao | |
| 24 | Seat | Jiangsu Dexiang |
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
