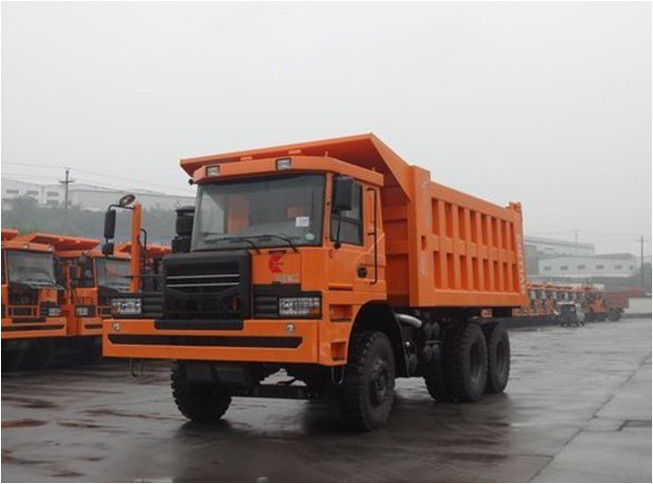

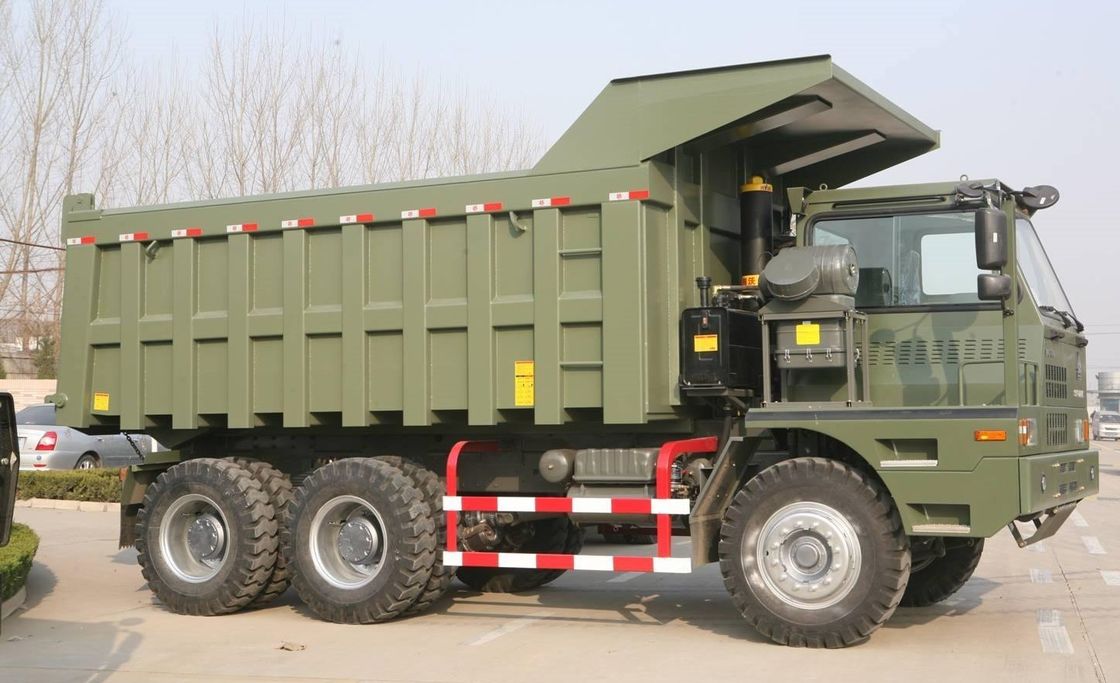

Used Dongfeng Mining Dump Truck with 6×4 Dirve Mode and euro 3 Emission standard in 2013 year could be used in kinds of constructions.
| Specifications of Dongfeng Truck | |||||||
| Truck Model | CT870 | CT890 | |||||
| Driving Mode | 6×4 | 6×4 | |||||
| Curb Weight(kg) | 25200 | 27000 | |||||
| Rate Weight(kg) | 45000 | 53000 | |||||
| G.V.W(kg) | 70000 | 80000 | |||||
| Overall Dimension(mm) | Length | 8680 | 8850 | ||||
| Width | 3150,3200 | 3350 | |||||
| Height | 3750 | 3800 | |||||
| Min Clearance(mm) | 333 | 350 | |||||
| Min Turning Diameter(m) | 11.5 | 12 | |||||
| Max Gradeability (％) | 36 | 35 | |||||
| App/Dep(°) | 27.5/45 | 27.5/45 | |||||
| Wheel base(mm) | 3560+1520 | 3650+1580 | |||||
| Tread(F/R)(mm) | 2550/2236 | 2731/2550 | |||||
| Engine Model | WP12NG380 | WD12.375 | WD12.420/BF6M1015C | ||||
| Engine Displacement(L) | 11.596 | 11.596 | 11.596 | ||||
| Rated Power(kW/PS) | 280 | 276 | 309 | ||||
| Max Torque/Speed(N.r/min) | 1500/(1400-1600) | 1500/ | 1750/1400-1600 | ||||
| (1300-1500) | |||||||
| Gear Box Model | 7DS180 | 4300ORS | 7DS180/45000ORS | ||||
| Front Alex Loading Weight(Kg) | 14000 | 16000 | |||||
| Front Alex Loading Weight(Kg) | 56000 | 64000 | |||||
| Emission Standard | Euro III | EroII | EroII | ||||
| Frame(mm) | 320*90*(10+8) | 320*120*(10+10) | |||||
| Brake System | Double Circuit, Hub Brake | Double Circuit, Hub Brake | |||||
| Electronics System | 24V | 24V | |||||
| Tank Volume(L) | 450 | 350 | 350 | 350 | |||
| Tyre Specification | 13.00-25 | 14.00-25 | |||||
| Cargo Dimension (mm) | 5600 | 5600 | |||||
| Width | 2850,2900,3000 | 3100,3200 | |||||
| 1500,1600/1680 | 1600,1700 | ||||||
| Lifting Mode | Front Lifting | Front Lifting | |||||
| Max Inclination Angle(°) | 48±2 | 48±2 | |||||
| Driving Wheel Diameter(mm) | 635 | 690 | |||||
| Max Speed(km/h) | 60 | 45 | |||||
| Min Speed(km/h) | 2 | 2 | |||||
| Carriage Lifting Time(s) | ≤30 | ≤30 | |||||
| Carriage Down Time(s) | ≤18 | ≤18 | |||||
| Braking Distance(V=30km/h) | ≤23.27m | ≤23.27m | |||||
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
