Place of Origin:
China
Brand Name:
Howo
Certification:
ISO, CCC, CE
Model Number:
ZZ4185N3516

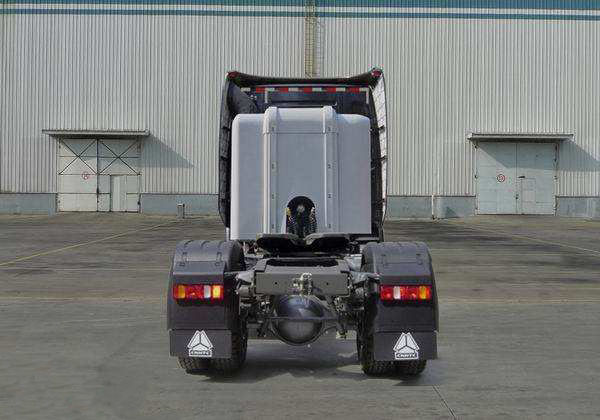

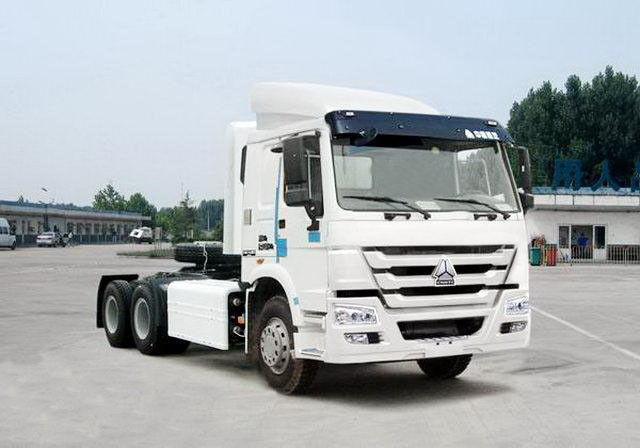

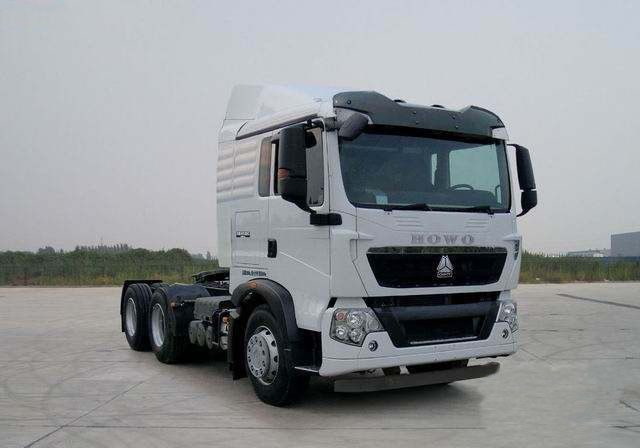

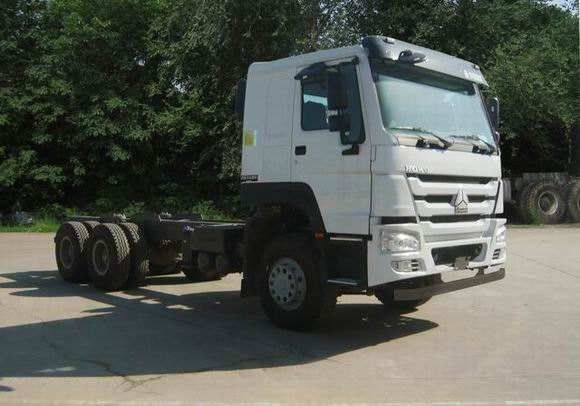

Sinotruck HOWO Tractor USED Dump Truck 371hp 4x2 Diesel Engine in 2012 year could be used in kinds of circumstances.
| VEHICLE SPECIFICATION | DESCRIPTION | |
| Truck Model | ZZ4185N3516 | |
| Type of Vehicle | TRACTOR TRUCK | |
| Driving Position | Left hand Driving /Right hand driving | |
| Fuel tanker capacity(L) | 400 | |
| The Total Mass | 50,000kg | |
| Dead Weight | 6810 | |
| Max speed(km/h)(km/h) | 102 | |
| Color | Optional | |
| Chassis & Add Components | ||
| Frame Details | High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sub-frame, all cold riveted cross members. | |
| Dimension(Lx W xH)(unloaded)(mm) | 6175x2496x3350 | |
| Approaching angle/Departure angle(°) | 20/45 | |
| Overhang(front/rear) (mm) | 1550/1025 | |
| Wheel base (mm) | 3600 | |
| Engine | ||
| Model | WD615.47 | |
| Power | 371hp | |
| Emission | EURO III | |
| Displacement(L) | 9.726 | |
| Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | |
| Kind of Fuel | Diesel | |
| Clutch & Gear Box System | ||
| Clutch | SINOTRUKΦ430mm diaphragm spring clutch | |
| Gear Box | 10 forwards and 2 reverse | |
| Axles | ||
| Front Axle Model | H153 axle | |
| Rear Axle | MCY13 axle | |
| Electrical System | ||
| Battery | 2X12V/165Ah | |
| Alternator | 28V-1500w | |
| Starter | 7.5Kw/24V | |
| Brake System | ||
| Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Engine exhaust brake | |
| Steering system | ||
| Model | D50 | |
| Type | hydraulic steering with power assistance | |
| Wheels & Tyres | ||
| Type | 12R22.5 | |
| Material | Tubeless tires | |
| Quantity | 6+1 spare | |
| Kin pin | 50mm or 90mm | |
| Cabin | ||
| Type | H17 | |
| Single sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc. | ||
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
