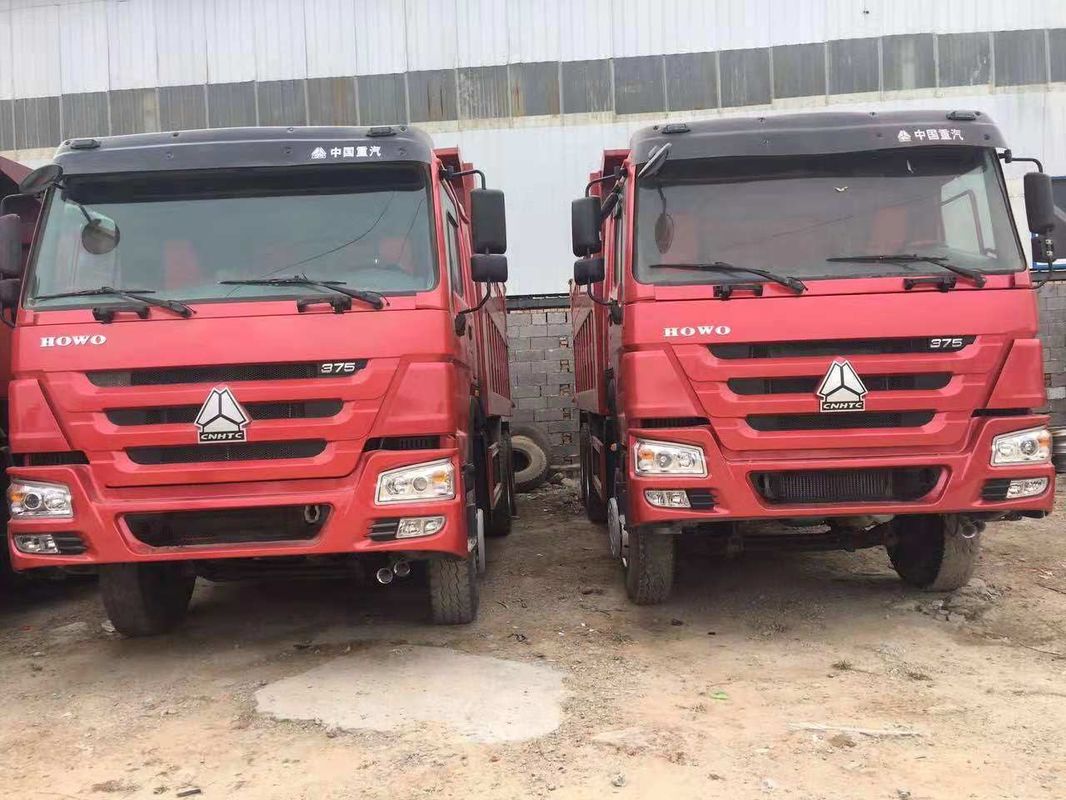

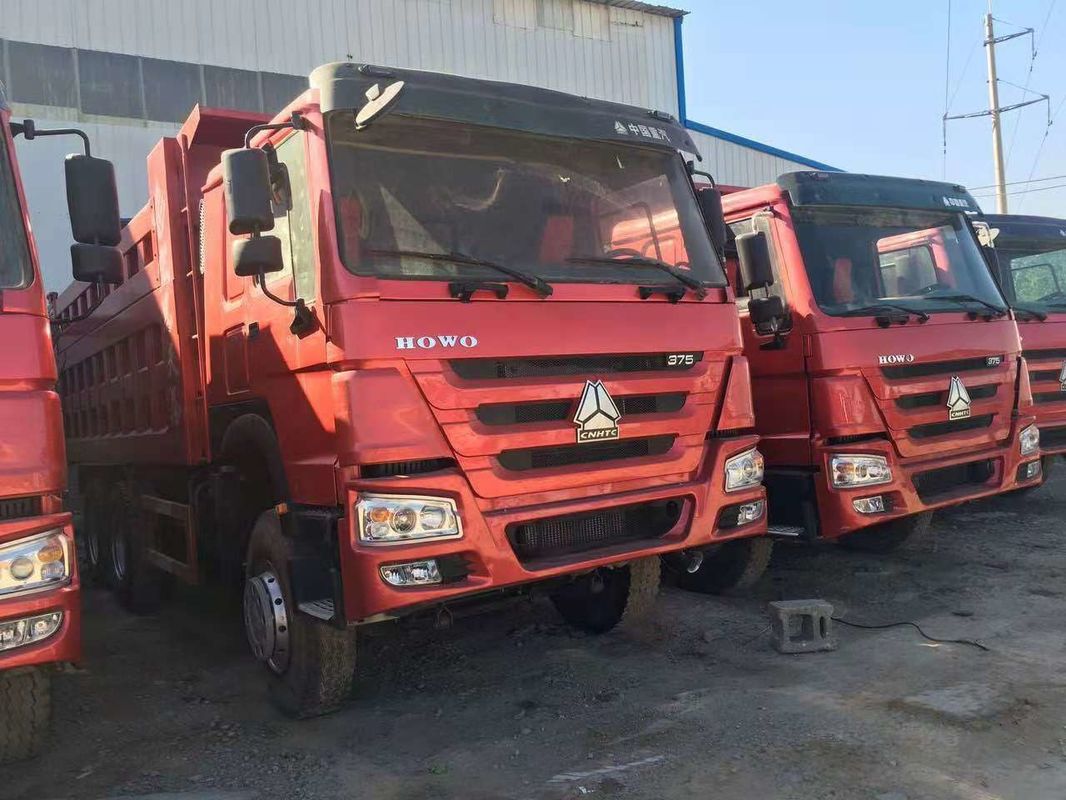

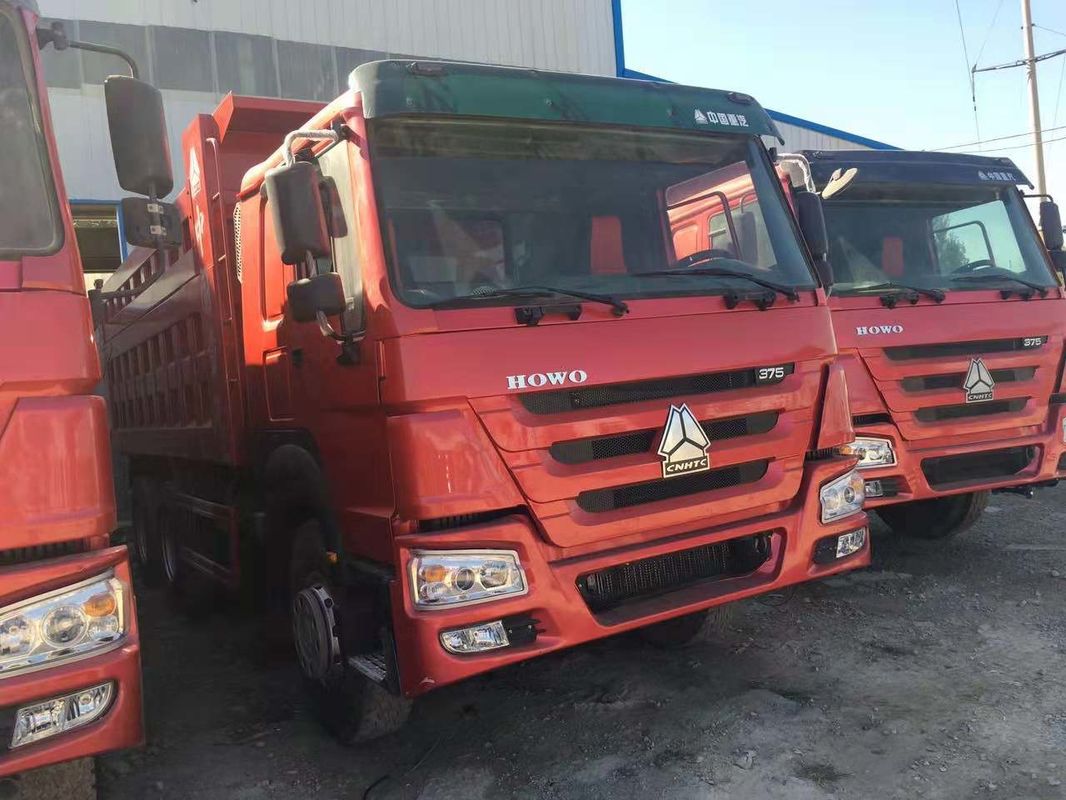

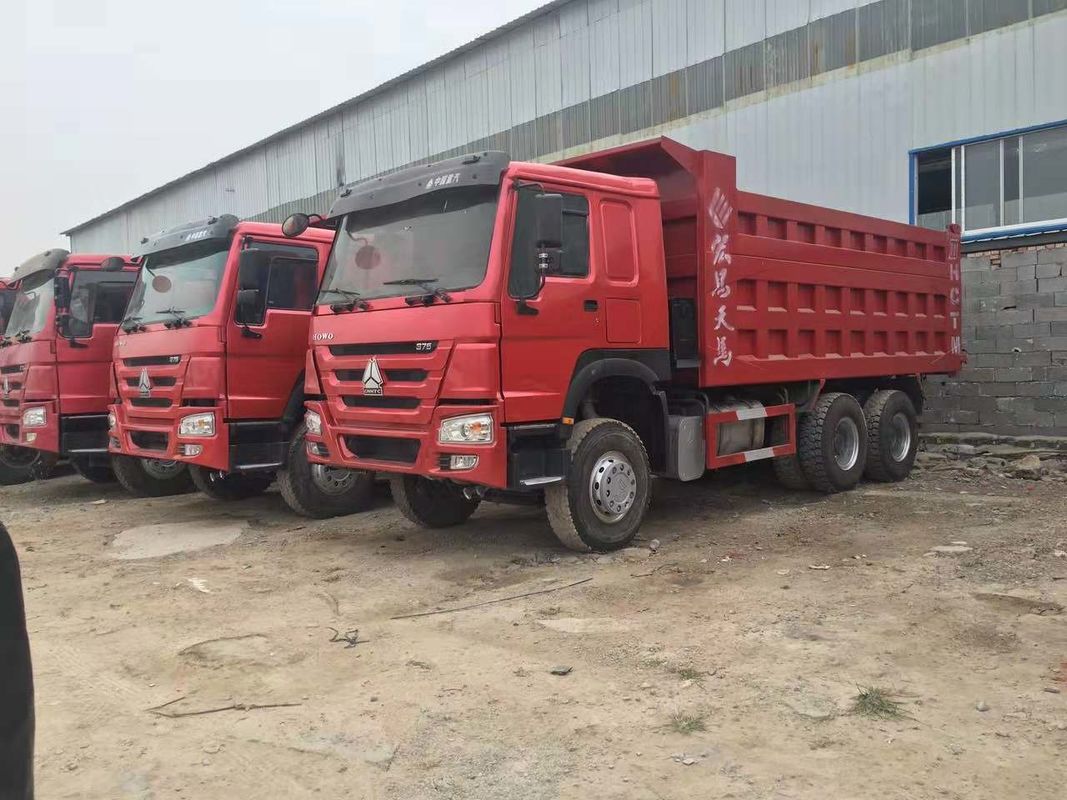

6x4 LHD/RHD model 375hp USED howo dump truck/tipper trcuk made in 2015 year coud be used in kinds of constructions.
| Truck Model | ZZ3257N3647 | ||||
| Truck Brand | SINOTRUK –HOWO | ||||
| Driving Type | Left Hand Driving | ||||
| Dimension(Lx W xH)(unloaded)(mm) | 8545x2550x3450 | ||||
| Cargo body size (L*W*H) | 5600x2300x1500 19.32m3 | ||||
| Cargo body thickness(mm) | bottom:8mm, side:6mm | ||||
| Lift type of Carriage | Ventral lifting | ||||
| Approaching angle/Departure angle(°) | 19/23 | ||||
| Overhang(front/rear) (mm) | 1500/1870 | ||||
| Wheel base (mm) | 3625+1350 | ||||
| Max speed(km/h) | 75 | ||||
| Curb weight(kg) | 12600 | ||||
| Loading Weight(kg) | 25000 | ||||
| Fuel tanker capacity(L) | 300L with locking fuel cap | ||||
| Clutch | Single-plate dry clutch Φ430mm | ||||
|
Engine Model (Steyr technology, made in China) |
Model | WD615.96C,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling | |||
| Horse Power | 375HP | ||||
| Emission | EURO III | ||||
| Fuel Type | Diesel | ||||
| Transmission | Model | HW19710,10 forwards and 2 reverse | |||
| Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | Engine exhaust brake | ||||
| Steering system | Model |
hydraulic steering with power assistance Ratio:22.2-26.2 |
|||
| Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
||||
| Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg |
||||
| Color | Optional | ||||
| Tire |
13R22.5 10+1 spare |
||||
| Electrical system | Operating voltage | 24V,negative grounded | |||
| Starter | 24V,7.35KW | ||||
| Alternator | 28V,1500W | ||||
| Batteries | 2*12V.165Ah | ||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||
| Cab | HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
| Instrument Panel | Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | ||||
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
