6X4 Drive form, 8 cubic meter and Emission Euro V Used SHACMAN-HUAYI Concrete Mixer Truck is easy to manipulate and could be used in kinds of construction.
|Vehicle Model||EHY5258GJBDR384||Vehicle Brand||HUAYI|
|Overall dimensions||8500x2490x3450mm||Curb weight||13240kg|
|Chassis model||SX5258GJBDR384||Chassis brand||SHACMAN|
|Overall dimensions||8270x2495x3250mm||Wheel base||3775+1400mm|
|Front/rear wheel track||2036/1850/1850mm||Front/rear suspension||1525/1770mm|
|Approach/departure angle||20/19°||Maximum speed||77km/h|
|Chassis Manufacturer||Shanxi Automobile Group Co., Ltd.|
|Cab||Configuration||F3000 flat roof heating cab, main seat hydraulic seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, single-bed, 14 rear-view mirrors, manual window-shaking machine, manual overturn,F3000 cooling system, domestic left steering machine,180Ah battery, SHACMAN logo, all Russian logo, remote throttle control|
|Color||White,other color is optional|
|Type||4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine|
|Rated power||336hp,rated power speed 1900rpm|
|Bore x stroke||126x130mm|
|Manufacturer||Weichai Power Co., Ltd.|
|Tire||Size||12.00R20 steel wire tire|
|Clutch||Eaton φ430 diaphragm clutch|
|Fuel tank||380L aluminium alloy|
|Front axle||MAN, 7.5 tons disc type|
|Rear axle||MAN,16 tons casting bridge,main reduction ratio 5.262|
|Transmissions||FAST 12JSD160TA,12 speed forward 2 reverse.|
|Steering device||Power assisted steering,steering machine|
|Steering wheel||Left hand drive|
|If there is a slight change in the chassis parameters above,please take the actual product as the standard|
|Concrete mixer truck structure parameters|
|Mixing capacity(m³)||8||Color and Logo||Optional|
|Feeding speed (m³/min)||≥8||Discharge speed(m³/min)||≥5|
|Discharge residual rate||≤0.5%||Slump scope(mm)||50-210|

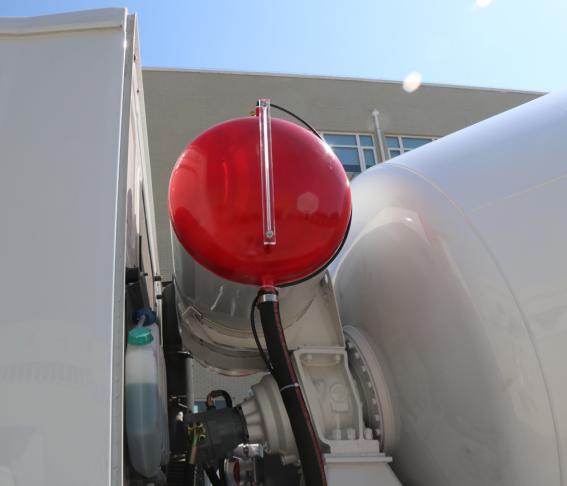

|Water tank capacity(L)||300||Water pressure(Mpa)||0.35-0.38|
|Tank material||5mm alloy steel||Tank front head||8mm alloy steel|

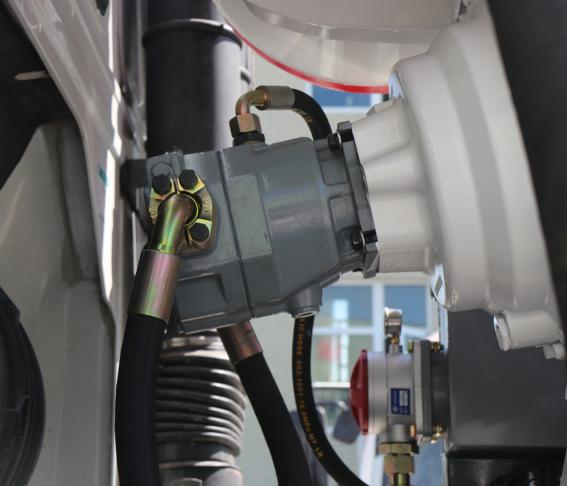

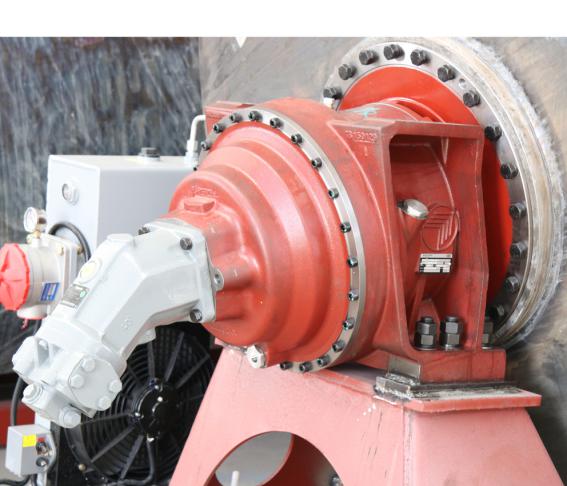

|Reducer||ZF3301||Hydraulic motor||Germany REXROTH|

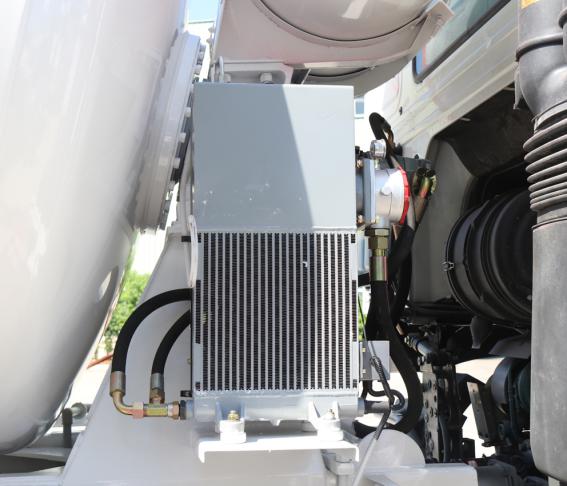

|Hydraulic pump||Germany REXROTH||Radiator||KAIPENG|

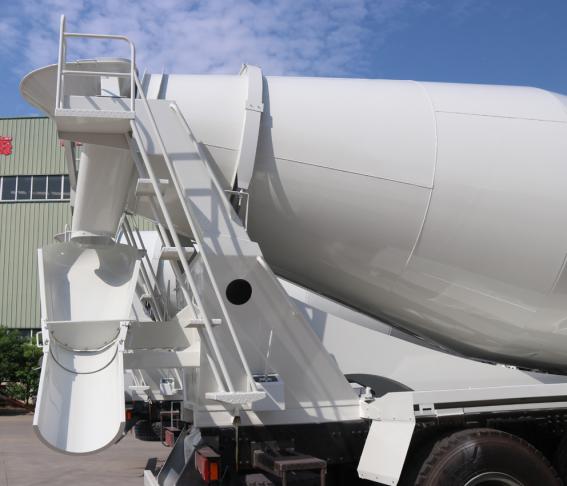

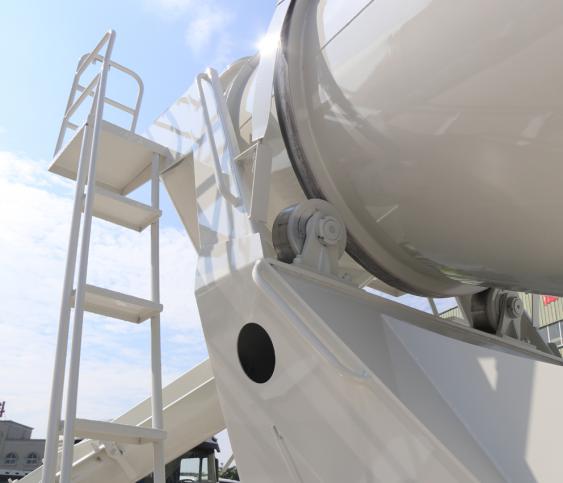

|Standard configuration||chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.|
|8m3||Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)|
Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
