Dongfeng Brand Second Hand Lorry With Push Type Diaphragm Spring Clutch

China Dongfeng Brand Second Hand Lorry With Push Type Diaphragm Spring Clutch supplier
Dongfeng Brand Second Hand Lorry With Push Type Diaphragm Spring Clutch supplier Dongfeng Brand Second Hand Lorry With Push Type Diaphragm Spring Clutch supplier

Large Image :  Dongfeng Brand Second Hand Lorry With Push Type Diaphragm Spring Clutch

Product Details:

Place of Origin: China
Brand Name: Dongfeng
Certification: ISO, CCC, CE
Model Number: DFD1120B

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude packing
Delivery Time: 5- 8 working days after receipt of payment
Payment Terms: T/T
Supply Ability: 50 units per month
Contact Now
Detailed Product Description
Product Name: Used Lorry Truck Brand: Dongfeng
Year: 2015 Drive Mode: 4×2
Engine Model: Cummins B170 33 Max. Power(Kw/rpm): 125/2500
Max. Torque(N.m/rpm): 550/1500 Displacement(ml): 5900ml
Type Of Fuel: Diesel Cab Capacity: 3 Persons
Gearbox Model: DF6S750 Frame H×W× T(mm): 250×80×(7+4)mm
Front Axle(Kg): 4500kg Rear Axle(Kg): 9000kg
Overall Dimension(mm): 8600×2500×2830mm Wheel Base(mm): 5000mm
Front/Rear Tread(mm): 1880/1800 Mm App./Dep. Angel (°): 20/11
Curb Weight(Kg): 5,880kg Payload(Kg): 20,000kg

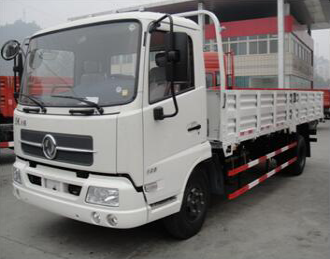

Dongfeng Cargo Truck DFD1120B push-type diaphragm spring clutch SECOND HAND used lorry truck 2015 year white


Dongfeng Cargo Truck DFD1120B
Specification
Drive mode4×2
EngineModelCummins B170 33
Type6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR
Max. power(Kw/rpm)125/2500
Max. torque(N.m/rpm)550/1500
Cylinder bore ×Stroke(mm)102×120
Displacement(ml)5900
Type of fuelDiesel
Compression ratio(17.5±0.5):1
CabD530one and a half rows
Capacity3 persons
GearboxTypeDF6S750
Max. torque(N.m)750
ClutchΦ395mmpush-type diaphragm spring clutch
Frame H×W× T(mm)250×80×(7+4)
AxlesFront axle(Kg)4500
Rear axle(Kg)9000
No. of spring leaves7/9+6
TyreSize9.00-20
Air conditionerA/C
DimensionsOverall dimension(mm)8600×2500×2830
Inner dimension(mm)6600×2294×600
Wheel base(mm)5000
Front/Rear tread(mm)1880/1800
App./Dep. angel (°)20/11
PerformanceMax. speed(Km/h)90
Max. gradeability(%)30
Min. turning diameter(m)17
MassPayload(Kg)20,000
Curb weight(Kg)5,880
G.V.W(Kg)25,580



Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.

Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.

Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Dongfeng Brand Second Hand Lorry With Push Type Diaphragm Spring ClutchDongfeng Brand Second Hand Lorry With Push Type Diaphragm Spring Clutch
