|Name:||Water Truck||Emission Standard:||Euro 3/4/5|
|Sprinkling Area:||12 - 16m||Transmission Type:||Manual|
|Volume:||10001 - 15000L|
tanker water truck,
digital billboard truck

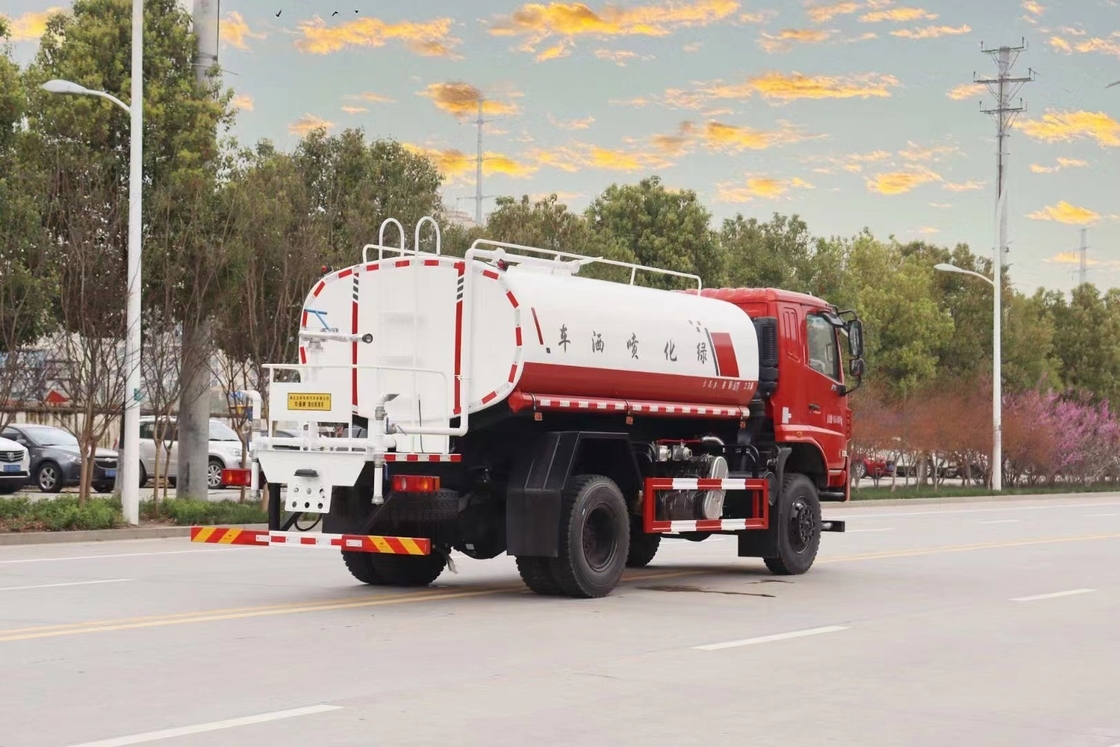

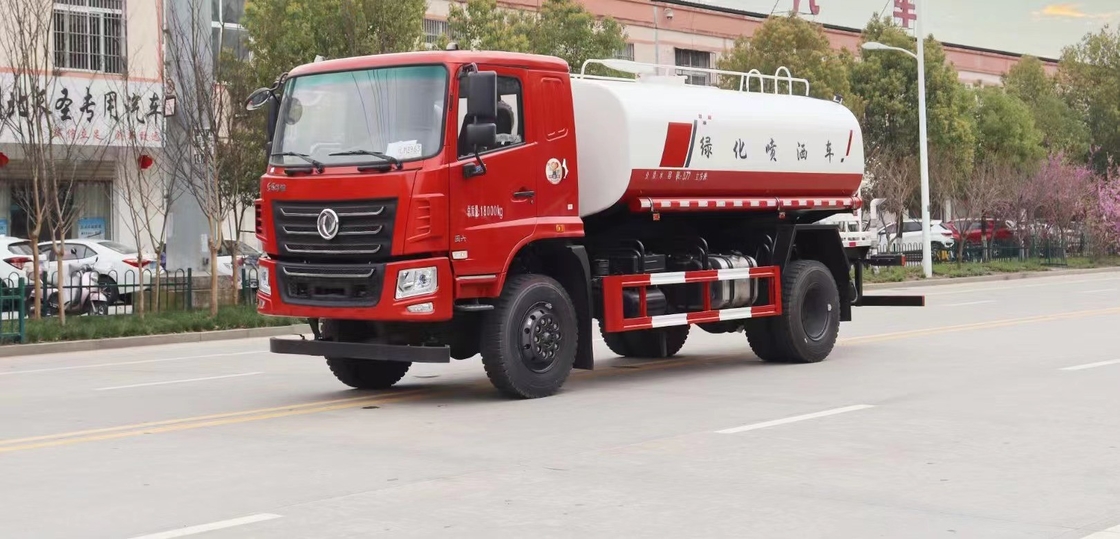

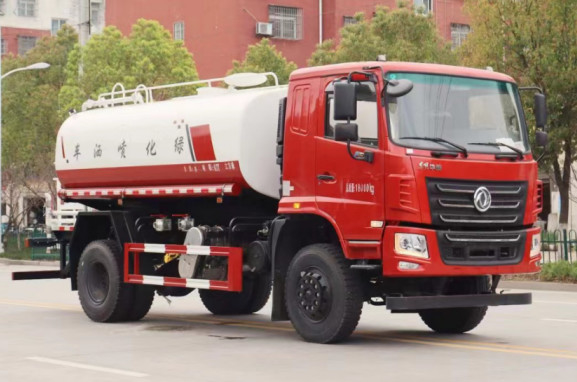

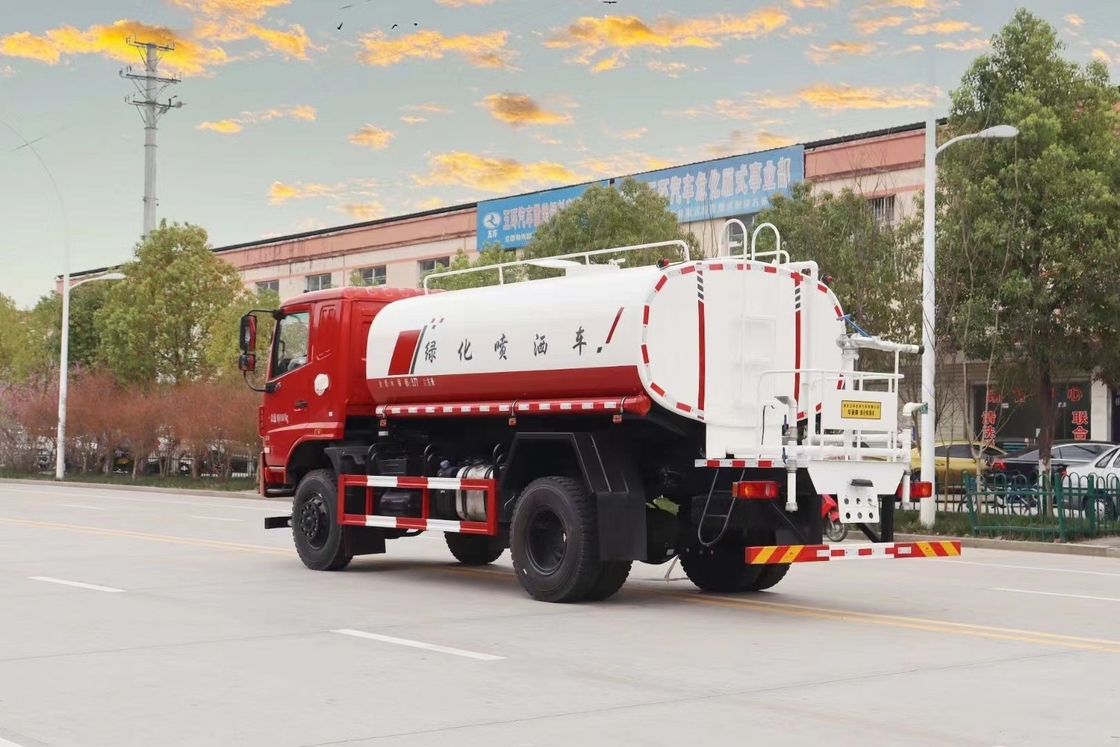

Dongfeng HOWO Shacman Road Sprinkler Sanitation Vehicle 12000 liters Tanker Water Truck
|Vehicle||Dongfeng water tank truck|
|F/R track base||1940/1860|
|Tire specification||9.00-20/6 units||Number of axles||2|
|Engine model||Manufacturer||Dongfeng Cummins|
|type||Diesel, 6 cylinder , direct-line, turbocharge and water cooling|
|Standard Configuration||Tank is made of 4mm carboon steel. Installing the water pump, side input and output water port.|
Water truck also known as spray trucks, multi-purpose sprinklers, landscaping sprinklers, water tankers, and water trucks. The sprinkler is suitable for all kinds of road surface washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude building flushing. It has the functions of watering, dusting, high and low level spraying, pesticide spraying, guardrail washing, etc. It also has functions such as water transport, drainage and emergency fire fighting.
Spray trucks, also known as multi-functional green sprinklers. It is used for clean roads, sanitation, dust prevention, watering, spraying pesticides, etc. in urban roads, large factories, troops, gardens, etc., in order to achieve the role of beautifying the environment.
At the same time, it can be used for temporary emergency fire sprinklers. Each sprinkler is equipped with a dedicated fire-fighting interface.
The Dongfeng sprinkler is driven by the engine to drive the gearbox. The power take-off mounted on the gearbox drives the sprinkler pump. The sprinkler pump generates the main power and sprays the liquid inside the tank through the pipe network. Self-priming height: ≤7m, sprinkling width: ≥20m, maximum range: ≥28m; can be adjusted into column shape, range ≥28m; can also be adjusted into fog, range ≥5m.
It is sprayed before spraying, with a duck-shaped nozzle or a round-headed nozzle in front, a cylindrical open sprinkler nozzle or a shower head nozzle on the back, and a working platform at the rear, equipped with a high-pressure water cannon. Eight nozzles (optional) in the rear can also be used to flush the street.
The basic composition of Dongfeng sprinkler : anti-rust tank, power take-off, drive shaft, special self-priming sprinkler, pipe network, spray outlet, working platform, second-class chassis.
Sprinkler optional configuration: GPS, universal nozzle, electromagnetic valve, pneumatic valve, visual operating system,external power, medicine tray.
