| ITEM | UNIT | PARAMETER | |

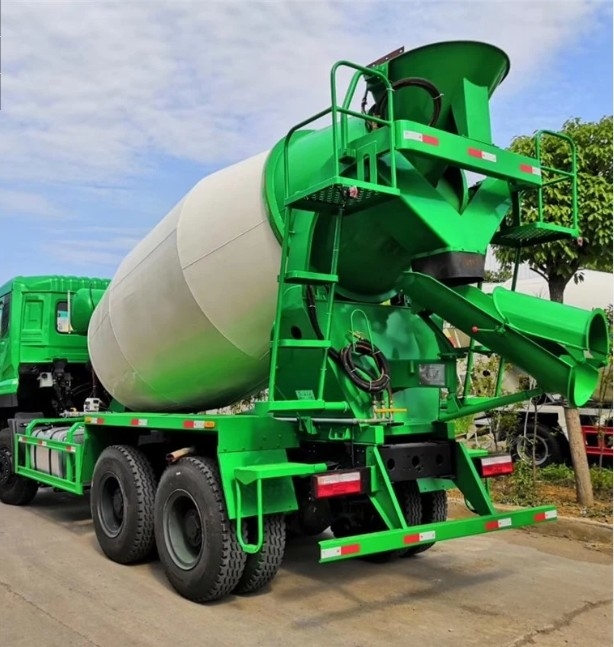

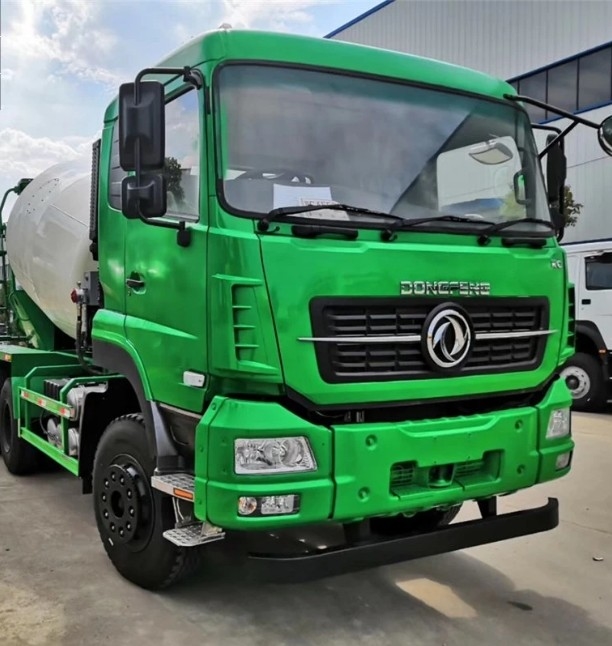

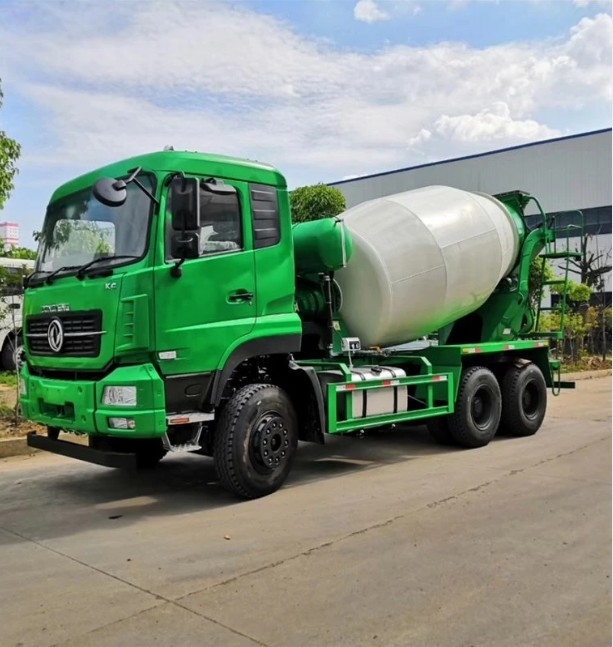

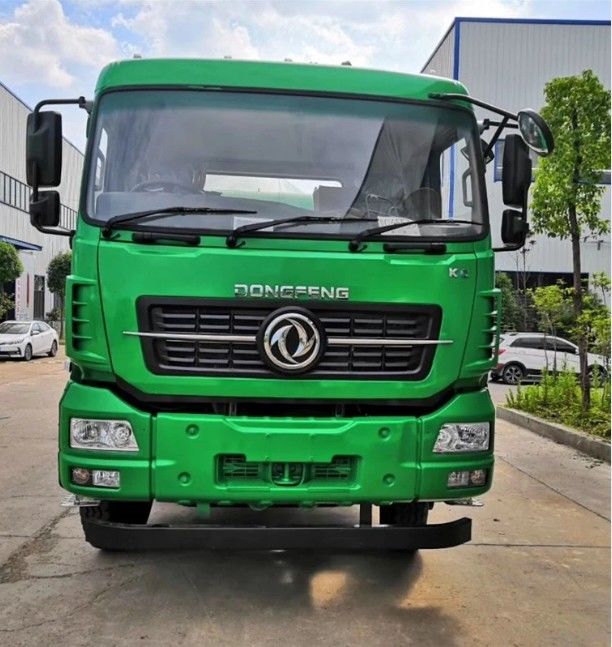

| Vehicle | Concrete mixer truck | ||
| Overall dimensions | mm | 9300x2450x3960 | |
| Cargo fence dimensions | 3450x2150x600 | ||
| GVW | kg | 25000 | |
| Curb weight | 12900 | ||
| Wheel base | mm | 3800+1350 | |
| F/R track base | 2030/1847 | ||
| F/R suspension | 1540/2600 | ||
| Approach/departure angle | ° | 17/21 | |
| Max speed | km/h | 90 | |
| Axle Load | kg | 7000/18000 | |
| Drive system | 6x4 | Emission standard | Eu 3 |
| Tire specification | 11.00-20 | Number of axles | 3 |
| Steering | Power | Transmission | 8F&1R |
| Engine model | Manufacturer | Dongfeng | |
| Model | B210-33 | ||
| Emission/kw | 5900ml/155Kw, 210hp | ||
| Gear box | 8F&1R | ||
| type | Diesel, 6 cylinder , direct-line, turbocharge and water cooling | ||
| Crane configurations |
1. Speed reducer: Italy Bonfiglioli. 2. Hydraulic pump and Motor: USA SAUER. 3. Tank material: Q345 |
||
