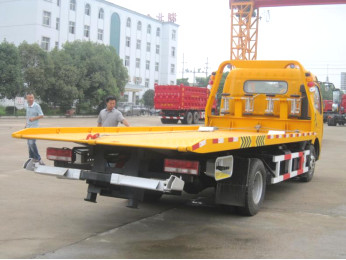

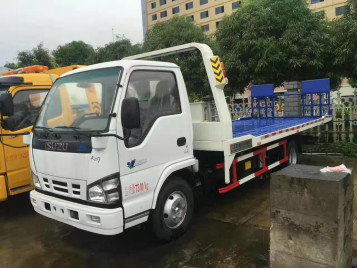

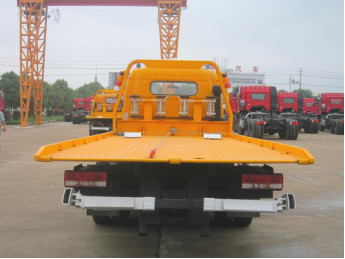

Wrecker Made In China ISUZU Towting Truck 4*2 Drive Mode Euro 5 Flat Bed 5 Tons
Description:
2 units of towing wheel, 1 unit of 8 ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp. Single row cab, allowable 3 passengers,air conditioner, USB radio interface, car interior. Isuzu MSB five speed transmission, 5 speed forward 1 reverse. Wrecker Made In China
Service we can provide:
Wrecker Made In China, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc. Wrecker Made In China
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.Wrecker Made In China
| Chassis parameters | |||||
| Chassis model | QL1070A5HAY | Chassis brand | ISUZU | ||
| Overall dimensions | 5900X1880X2200mm | Wheel base | 3360mm | ||
| Front/rear wheel track | 1504/ 1425mm | Front/rear suspension | 1015/ 1450mm | ||
| Approach/departure angle | 24/ 16° | Maximum speed | 105km/h | ||
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | ||||
|
Cab |
Configuration | 600P,single row cab, allowable 3 passengers,air conditioner, USB radio interface, car interior | |||
| Color | White,other color is optional | ||||
|
Engine |
Model | 4KH1CN5HS | |||
| Emission | Euro 5 | ||||
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | ||||
| Rated power | 130hp,rated power speed 3400rpm | ||||
| Displacement | 2999ml | ||||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||||
| Tire | Size | 7.00R16 | |||
| Number | 6+ 1 nos | ||||
| Frame | 172X65(4+3)mm | ||||
| Front axle | 2.5 tons | ||||
| Rear axle | 4 8 tons | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | Isuzu MSB five speed transmission, 5 speed forward 1 reverse | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
| Wrecker structure parameters | |
| Equipment | 2 units of towing wheel, 1 unit of 8 ton winch, 1 unit of steel wire rope, 1 unit of spare tire, 1 unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp. |
| Flat-bed dimensions | 5600*2300mm |
| Flat-bed Max capacity | 5000kg |
| Max under-hoisting capacity | 1800kg |
| Winch numbers | 1 unit |
| Max towing capacity of winch | 8000kg |
| Max towing speed | 40km/h |
| Length of steel wire rope | 20m |
| Speed of steel wire rope | 8 m/min |
