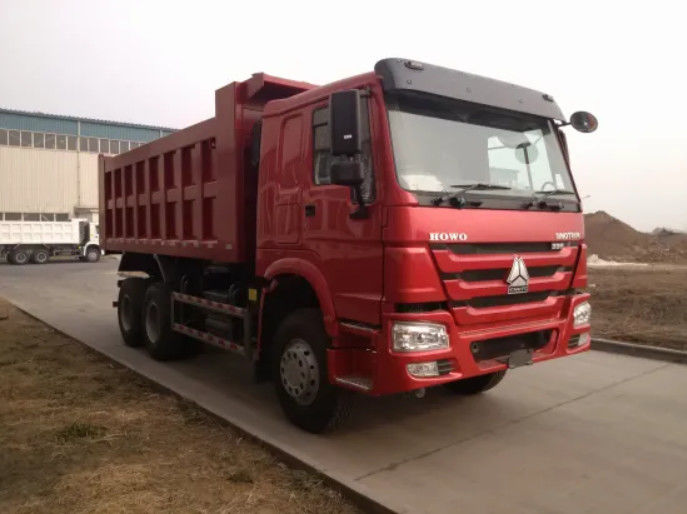

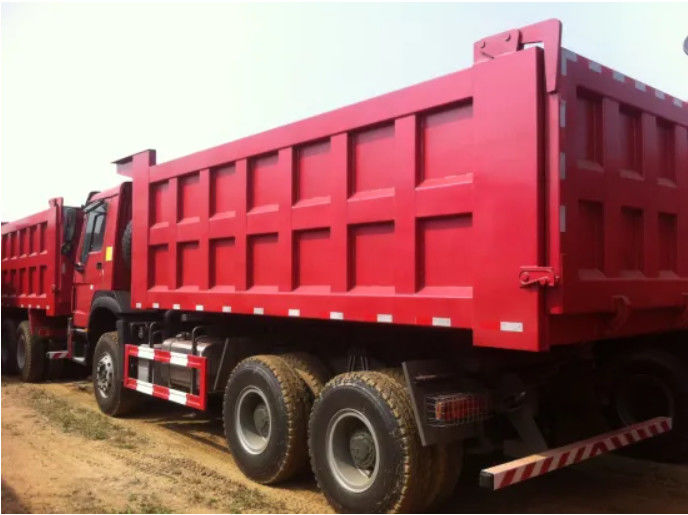

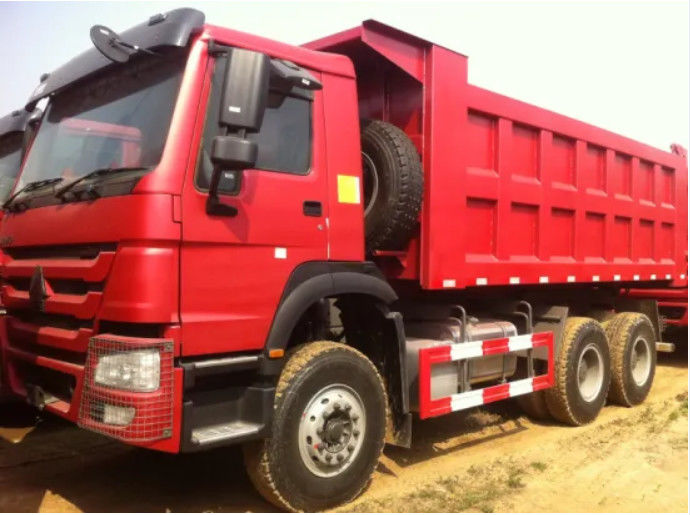

Second Hand used HOWO 6*4 10 Wheels Dump Tipper Truck HOWO Truck Sinotruck manual transmission 30T load capacity
Product Description
| Dimension | ||
| Overall Dimensions(L×W ×H)(mm)(unloaded) | 8545×2496×3550 | |
| Cargo body inner size (L×W×H) (mm) | 5600×2300×1500 Front(Middle) Lifting system, bottom 8mm/side 6mm |
|
| Wheel base (mm) | 3825+1350 | |
| Approaching angle/Departure angle(°) | 19/23 | |
| Overhang(front/rear) (mm) | 1500/1870 | |
| Ground Clearance | 340 | |
| Engine | ||
| WD615.47 (Steyr technology, made by China National Heavy Duty truck Group) 9726cc Diesel engine Emission standard Euro2,Water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection; Power max(kw/rpm) 273kw/2200 371HP |
||
| Max speed(km/h) | 85 | |
| Curb weight(kg) | 12000KG | |
| Loading Weight(kg) | 25000KG | |
| Fuel tanker capacity(L) | 300 | |
| Transmission | Model | HW19710, 10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | Spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF8118/ZF8098 |
| Front axle | Steering with double T-cross section beam 9tons | |
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels 16tons*2 | |
| Tire | 12.00R20 | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.
Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.
Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
