SPECIFICATION Of HOWO 8×4 DUMP TRUCK
| Truck Model | ZZ3317N3867 | |||
| Truck Brand | SINOTRUK—HOWO | |||
| Dimension(Lx W xH)(unloaded)(mm) | 10545*2496*3450 | |||
| Driving Type | Right Hand Driving | |||

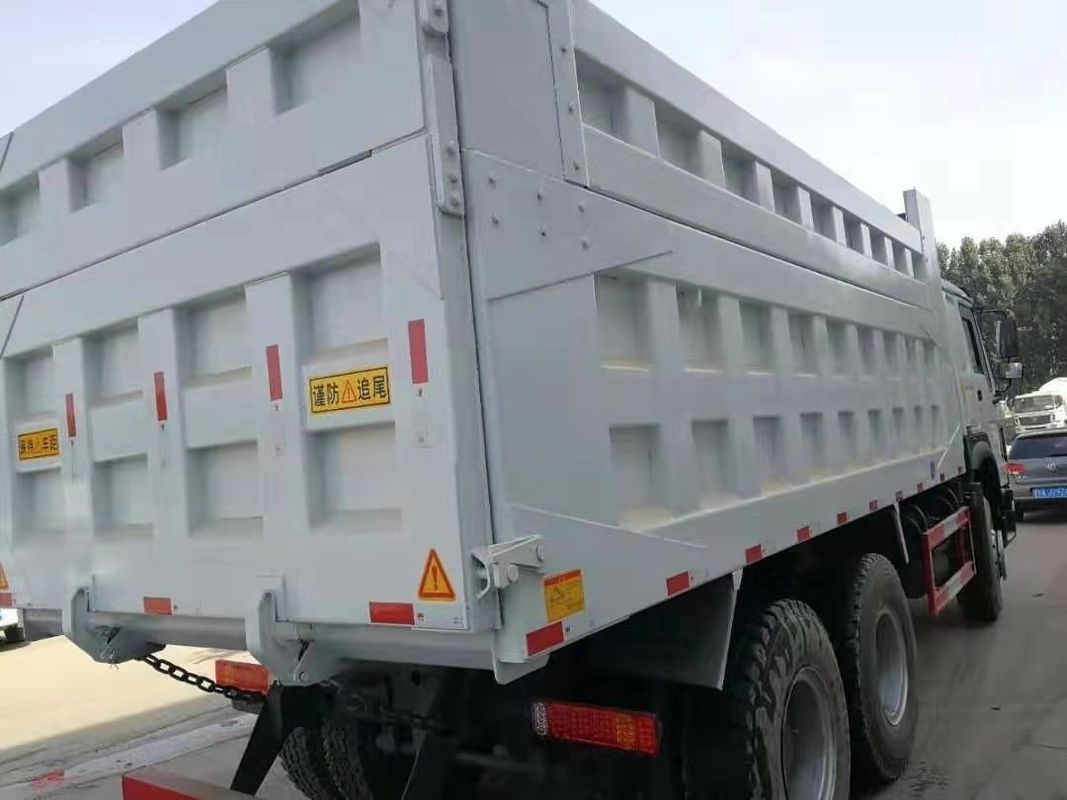

| Cargo body size (L*W*H, mm) | 7500*2300*1500mm bottom:10mm,side:8mm | |||
| Lifting Cylinder | China Brand | |||
| Lifting Type | Front side Lifting | |||
| Approaching angle/Departure angle(°) | 19/20 | |||
| Overhang(front/rear) (mm) | 1500/2095 | |||
| Wheel base (mm) | 1800+3800+1350 | |||
| Curb weight(kg) | 15200 | |||
| Persons in cab(persons) | 2 | |||
| Gross vehicle weight(kg) | 31000 | |||
| Max speed(km/h)(km/h) | 80 | |||
|
Engine Model (Steyr technology, made in China) |
WD615.47 water-cooled,four strokes,6 cylinders in line with water cooling, directly injection | |||
| Fuel type | Diesel | |||
| Horse Power, max(kw/rpm) | 371HP | |||
| Emission | EURO II | |||
| Fuel tanker capacity (L) | 300 | |||
| Transmission Model | HW19710 10 forwards and 2 reverse | |||
| Steering Model | 8198 Mechanical transmission with hydraulic assistance Steering gear re-circulating ball type. | |||
| Clutch |
single disc, dry type, diaphragm spring ;φ430 φ430 |
|||
| Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | The engine exhaust brake (EVB) | |||
| Front axle | HF9 Steering with double T-cross section beam | |||
| Rear axle | HC16 Casting axle housing, central double reduction with differential locks between axles and wheels | |||
| Color | White, Red, Yellow. according to the customer | |||
| Tyre |
12.00R20 NO.12+1 Pieces |
|||
| Electrical system | Battery | 2X12V/180Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||

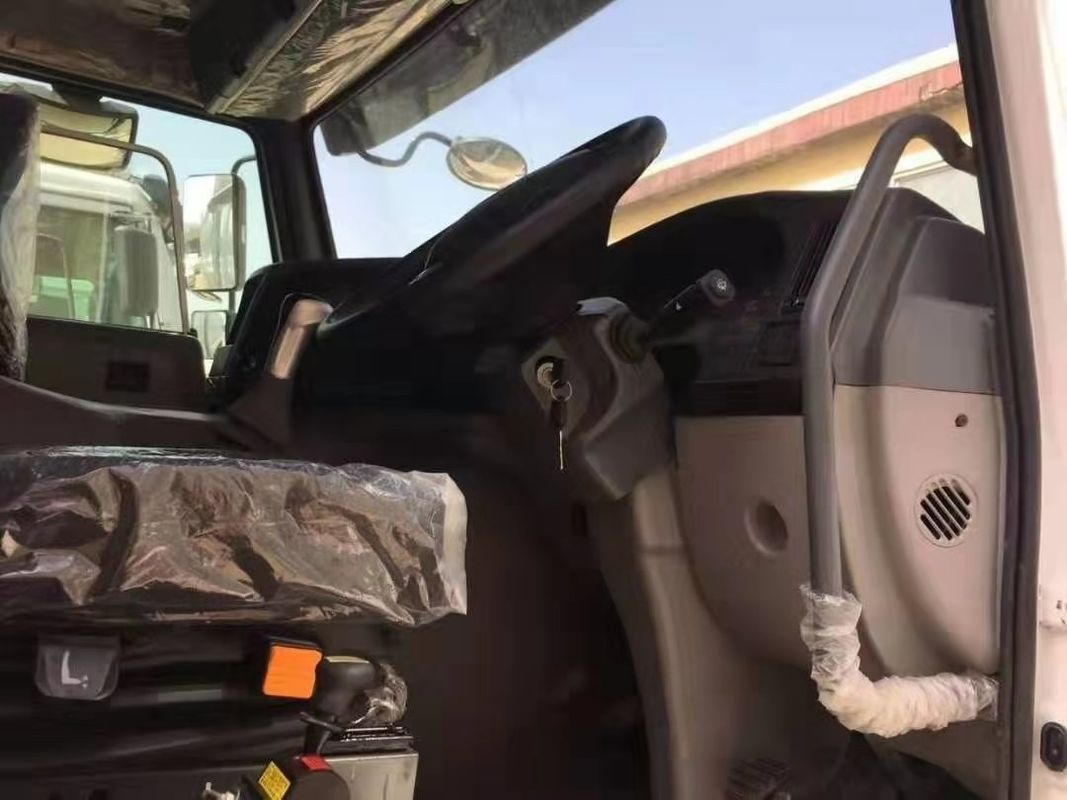

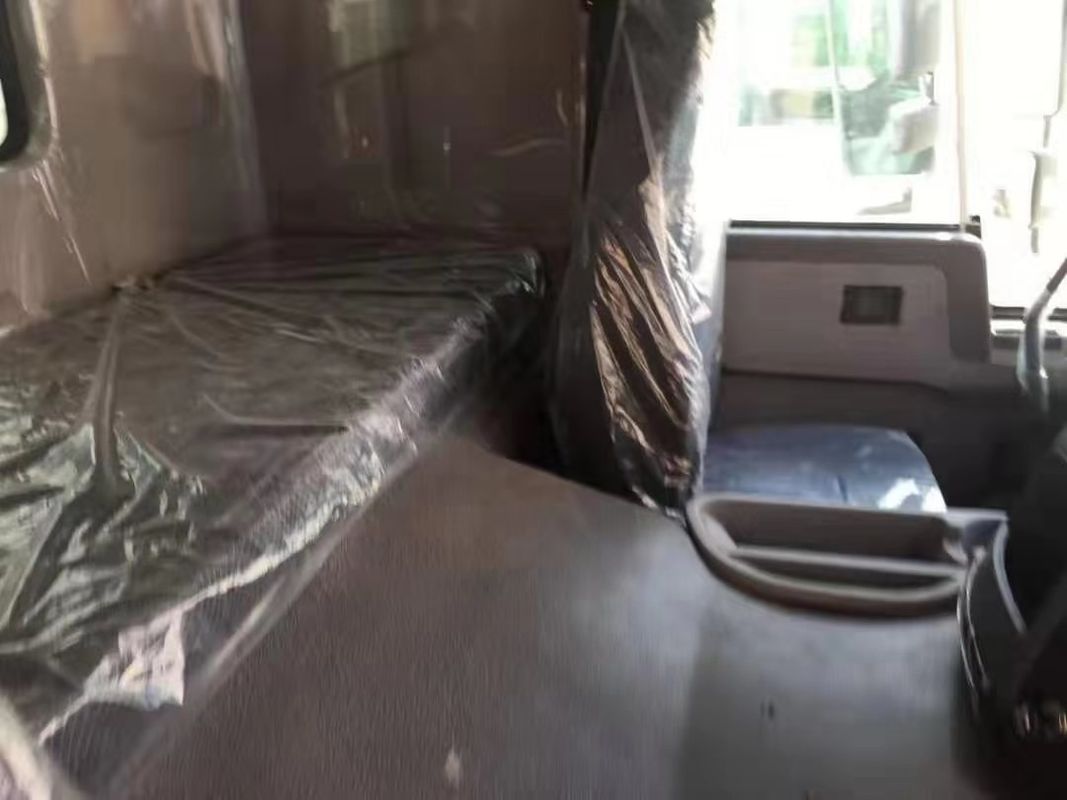

| Cab | HW76 cab (single sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |||
